240V Outlet Settings
Maximum Current Output
The GRIZZL-E Mini charging station features the ability to adjust the maximum current output.
Requirements govern that only 80% of the circuit rated load may be utilized. The Grizzl-E Mini
can support current output of 50A, 40A, 30A, or 20A Dedicated Circuit ratings as follows:
Circuit Rating Maximum Charging Station Output
50A 40A (9.6 kW)
40A 32A (7.68 kW)
30A 24A (5.76 kW)
20A 16A (3.84 kW)
At 240V the Maximum Current Output is governed by the DIP switches on the PCB.
The DIP switch is a 3-position switch located at the top of the PCB.

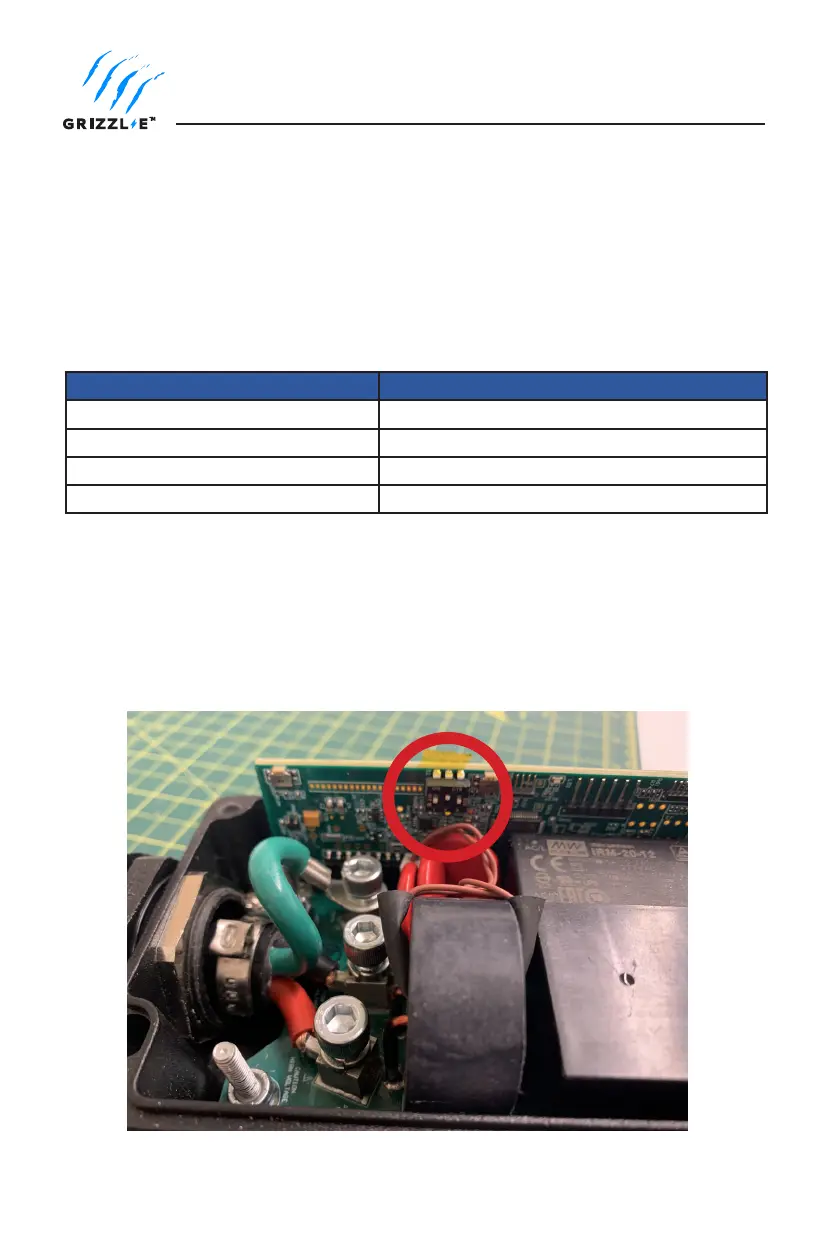

Adjust Maximum Current Through DIP Switches
