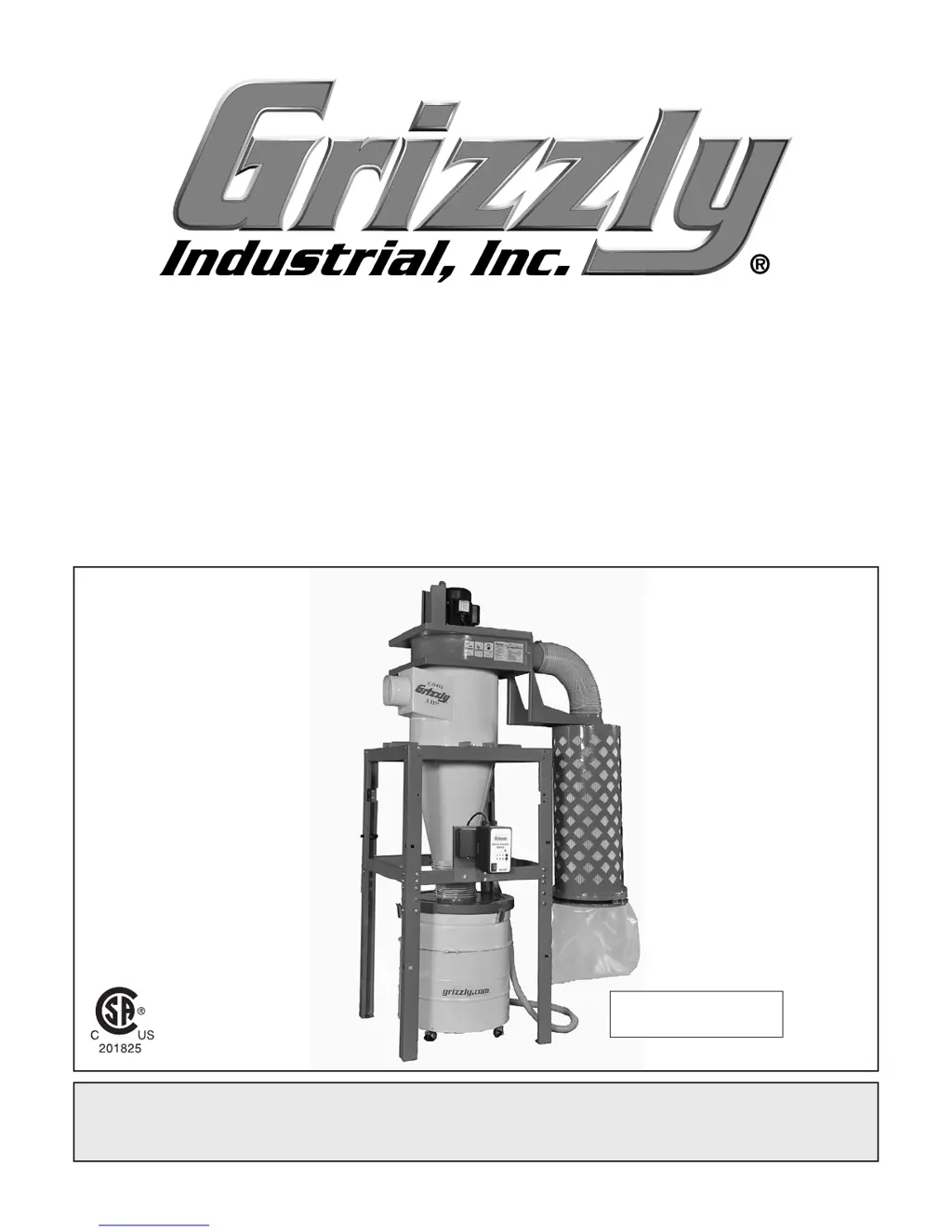

MODEL G0440/G0441
2 HP & 3 HP
CYCLONE DUST COLLECTORS
OWNER'S MANUAL
(For models manufactured since 03/12)
COPYRIGHT © APRIL, 2005 BY GRIZZLY INDUSTRIAL, INC. REVISED OCTOBER, 2013 (TS)
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#TR7027 PRINTED IN TAIWAN
Model G0441 Shown
With Optional Stand
V6.10.13

Table of Contents

Other manuals for Grizzly G0440

Preview: Manual Update
Manual Update66 pages

Questions and Answers

  • A
    Alice FlynnAug 8, 2025
    What to do if my Grizzly G0440 Dust Collector motor will not start?
    • J
      Joshua OlsenAug 8, 2025
      If the motor of your Grizzly Dust Collector won't start or growls upon starting, it could be due to several reasons: * A tripped power supply fuse or circuit breaker: Disconnect power and inspect the circuit for electrical shorts, then repair and replace the circuit breaker. * A broken toggle switch: Disconnect the power and check or replace the switch. * A faulty start capacitor: Replace the start capacitor. * A dented motor fan cover: Replace the motor fan cover (and fan, if damaged). * A faulty motor: Replace the motor.
  • L
    Luis RobertsAug 15, 2025
    Why is my Grizzly G0440 making loud noises and vibrating?
    • A
      Aaron RobinsonAug 15, 2025
      If your Grizzly Dust Collector is making a loud, repetitive noise or vibrating excessively, here's what might be happening: * The dust collector might not be on a flat surface, so stabilize it. * The impeller fan could be damaged and unbalanced, so unplug the dust collector and inspect the impeller for damage; replace if necessary. * The motor mounting might be loose, so re-tighten all fasteners on the dust collector. * The impeller may be loose on the motor shaft, so replace the motor and impeller as a set if the motor shaft and the impeller hub is damaged. * The motor fan cover may be dented, causing the motor fan to hit the cover while spinning, so replace the motor fan cover.
  • L
    leslie07Aug 23, 2025
    How to fix a Grizzly G0440 Dust Collector motor that runs slow?
    • K
      Kathryn OwensAug 23, 2025
      If the motor of your Grizzly Dust Collector runs slower than normal, check the following: * Poor electrical connection: Inspect the power supply for loose, corroded, or overheated electrical connections and repair. * Low power source voltage: Have the power source voltage checked; reduce the length of the extension cord. * Faulty motor: Replace the motor.
  • J
    James HartOct 30, 2025
    Why is my Grizzly Dust Collector not collecting dust effectively?
    • S
      Sandra ThompsonOct 30, 2025
      If your Grizzly Dust Collector isn't effectively collecting dust or chips, resulting in poor performance, consider these potential causes and solutions: * The dust collection drum may be full, so empty it. * The filter may be dirty, so clean it. * There might be a restriction in the duct line, so remove the dust line from the dust collector inlet and unblock the restriction. * The lumber could be wet, so process lumber with less than 20% moisture content. * There may be a leak in the ducting, so rework the ducting to eliminate all leaks and close dust ports for lines not being used. * There may not be enough open branch lines at one time, so open 1 or 2 more blast gates to different branch lines to allow the velocity in the main line to increase. * The machine dust collectio...

Summary

INTRODUCTION

Machine Description

Overview of the cyclone dust collector's design, function, and control mechanisms.

Contact Information

Provides contact details for Grizzly Technical Support and the Documentation Manager for inquiries.

Manual Accuracy

Informs users about potential discrepancies in the manual and how to find updates.

SECTION 1: SAFETY

Safety Instructions for Machinery

Critical safety guidelines and warnings for operating machinery to prevent injury.

Additional Safety for Dust Collectors

Specific safety precautions for the use and operation of cyclone dust collectors.

G0440 Machine Data Sheet

G0441 Machine Data Sheet

SECTION 2: POWER SUPPLY

Availability

Guidance on checking and ensuring a suitable power supply circuit is available for installation.

Full-Load Current Rating

Explanation of the machine's full-load current draw and its impact on circuit sizing.

Circuit Requirements

Detailed specifications for the electrical power supply circuit, including voltage, phase, and amperage.

Connection Type

Describes the required permanent hardwired connection method for the machine's power supply.

Grounding Instructions

Instructions on proper grounding to prevent electrical hazards and ensure user safety.

Extension Cords

Statement regarding the inability to use extension cords with this permanently connected machine.

SECTION 3: SETUP

Unpacking

Steps for carefully unpacking the machine, inspecting for damage, and saving packaging materials.

Needed for Setup

List of necessary tools, equipment, and assistants required for machine assembly and setup.

Site Considerations

Weight Load

Ensuring the installation surface can safely support the machine, equipment, and workpiece weight.

Space Allocation

Guidelines for planning sufficient space for operation, maintenance, and material handling.

Physical Environment

Recommendations for the optimal operating environment, avoiding extreme conditions.

Electrical Installation

Requirements for safely routing and protecting power cords and ensuring access to disconnects.

Lighting

Ensuring adequate lighting in the work area for safe machine operation.

Wall Mounting

Materials Needed for Standard Wood Framed Walls

List of materials required for constructing mounting boards for wood-framed wall installations.

Assembly

SECTION 4: DESIGNING THE SYSTEM

General System Design

Introduction to designing a dust collection system for workshops and general considerations.

Duct Material Considerations

Discussion on the pros and cons of various duct materials like metal, plastic, and flexible hose.

Duct System Planning

Steps for sketching shop layouts, duct layouts, and determining airflow requirements (CFM).

Duct Sizing and Resistance

Methods for calculating duct resistance, static pressure loss, and sizing for multiple dust ports.

System Grounding

Essential procedures for grounding the entire dust collection system to prevent static electricity buildup.

SECTION 5: OPERATIONS

Remote Control

Instructions on using the IR remote control for operating the dust collector's switch.

General Operation

Basic procedure for turning the dust collector and connected machines on and off.

SECTION 6: ACCESSORIES

SECTION 7: MAINTENANCE

Emptying Drum

Guidance on determining when to empty the collection drum and how to do it safely.

Cleaning Filter

Instructions for cleaning the internal filter using the built-in brush system.

Rinsing Filter

Procedure for removing, rinsing, and air-drying the dust collector filter.

SECTION 8: SERVICE

Troubleshooting

A guide to diagnosing and resolving common problems encountered with the dust collector.

SECTION 9: WIRING

Wiring Safety Instructions

Crucial safety warnings and guidelines for performing any electrical wiring tasks on the machine.

Motor Wiring

Information and diagrams detailing the electrical connections for the machine's motor.

G0440;G0441 Electrical Components

SECTION 10: PARTS

WARRANTY AND RETURNS

Grizzly G0440 Specifications

General IconGeneral
Motor Power2 HP
Voltage110V/220V
Collection Bag Size30 gallons
Impeller Diameter12 inches
Bag Capacity30 gallons
Inlet Diameter6 inches
