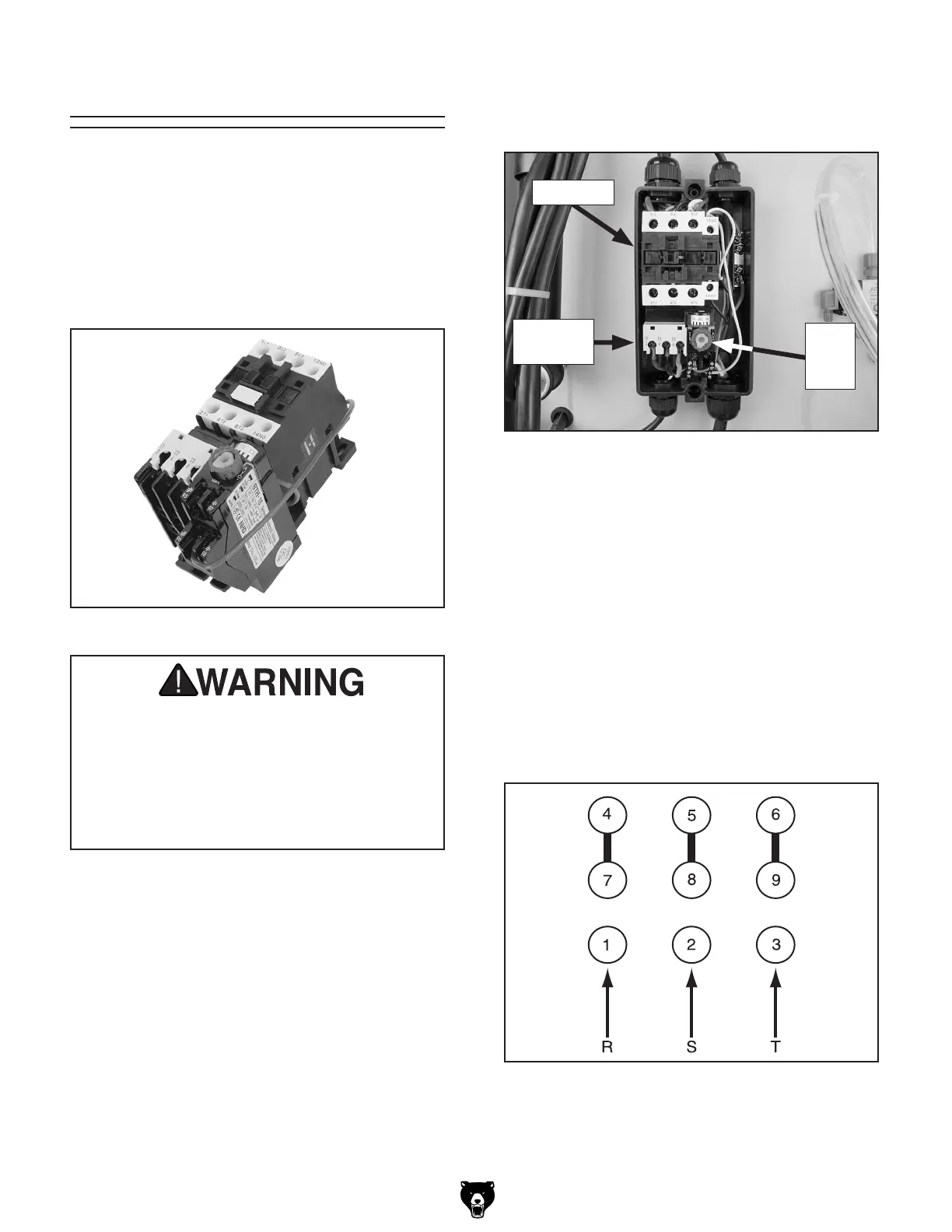

440V Conversion
Figure 1
Figure 1.
The 440V conversion procedure requires
moderateelectricalskillandknowledge,and
the rewiring must be inspected by a licensed
electrician before the saw is connected to
power.Heedthiswarningtoavoidtheriskof
serious personal injury from electrocution
or damage to the saw.
2.
Figure 2
3.
4.
Note: The illustration in Figure 3 is provided
for your reference and was current at the
time that this manual update was printed.
However, always use the diagram on the wir-
ing junction box cover that comes with your
motor.
To convert the Model G0502 for 440V opera-
tion:
1.
Figure 3.
Figure 2.
