REF PART # DESCRIPTION REF PART # DESCRIPTION

14 P0502014 LEFT ROLLER TABLE ASSEMBLY 79-2 P0549604 ADJUSTMENT FOOT 5/8-11 X 4

14-1 P0502014-1 INDIVIDUAL ROLLER 79A P0502079A LEFT & RIGHT ROLLER TABLE ASSY

14-2 P0502014-2 ROLLER SHAFT 129-1 PB07M HEX BOLT M8-1.25 X 25

24A P0502024A LOCK HANDLE M8-1.25 X 20 129-2 PLW04M LOCK WASHER 8MM

25 P0502025 QUICK STOP 129-3 PW01M FLAT WASHER 8MM

26 P0502026 FIXED STOP 141-1 PB07M HEX BOLT M8-1.25 X 25

27 P0502027 SPECIAL WASHER 8MM 141-2 PW01M FLAT WASHER 8MM

28 P0502028 SQUARE RAIL 141-3 PN03M HEX NUT M8-1.25

29 P0502029 SCALE 143-1 PSB13M CAP SCREW M8-1.25 X 30

79 P0502079 RIGHT ROLLER TABLE ASSEMBLY 143-2 PLW04M LOCK WASHER 8MM

79-1 P0502079-1 ROLLER TABLE LEG STAND 143-3 PN03M HEX NUT M8-1.25

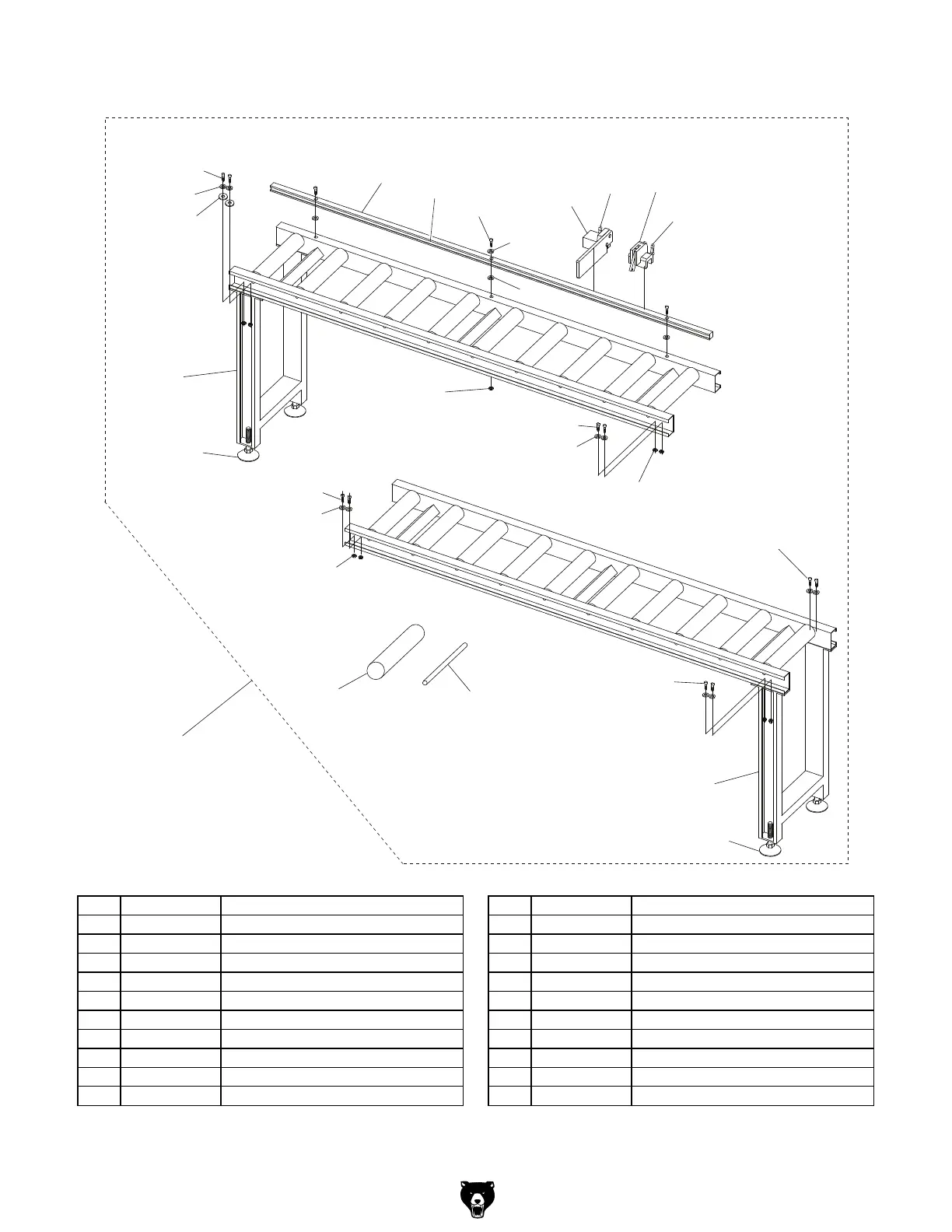

Roller Tables

129-1

14 – LEFT ROLLER TABLE ASSEMBLY

14-1

14-2

24A

79 – RIGHT ROLLER TABLE ASSEMBLY

79-1

79-2

129-1

129-2

129-3

141-1

141-2

141-3

143-1

143-2

143-3

141-1

141-2

141-3

24A

79-1

79-2

79A
