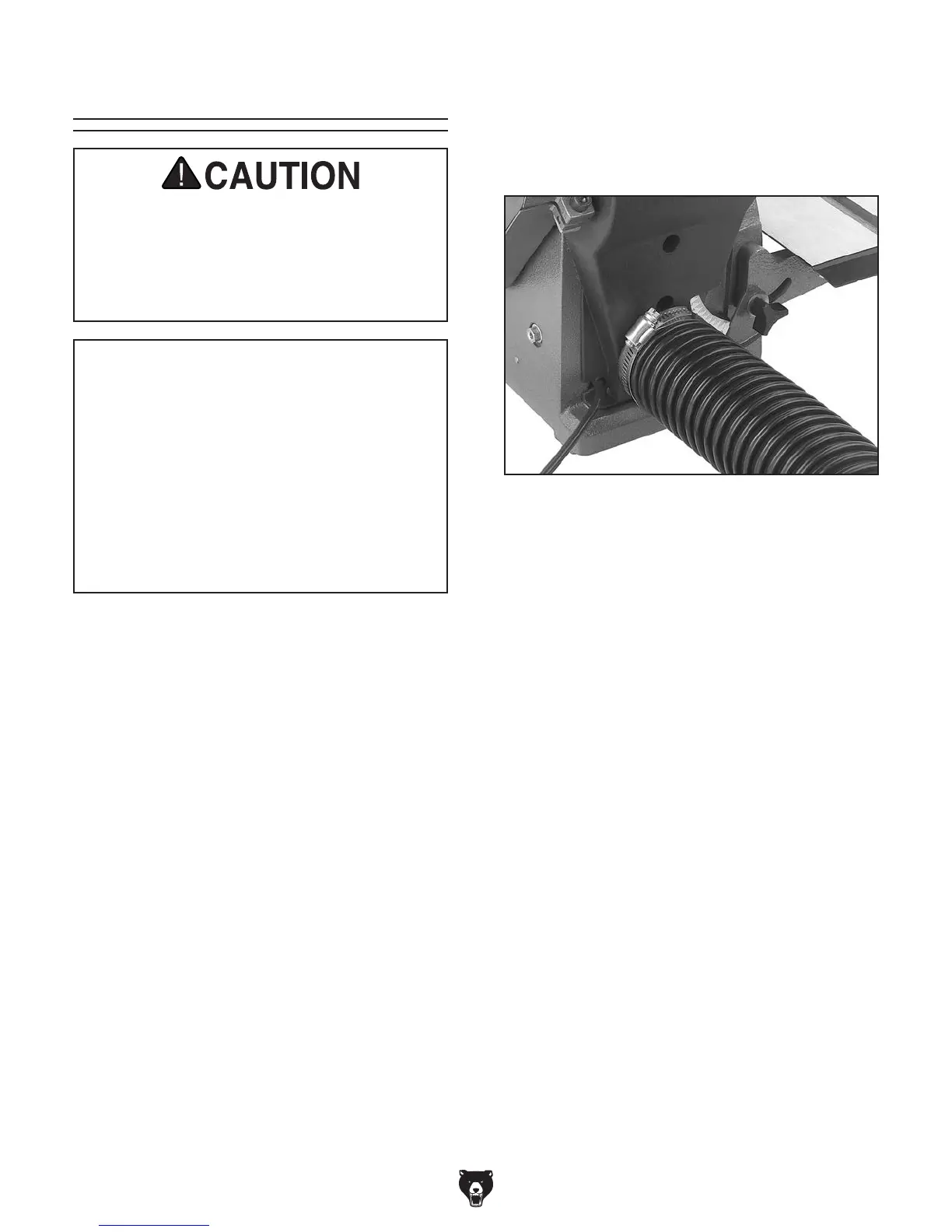

Figure 12. Dust hose attached to dust port.
Dust Collection
To connect dust collection hose:
1. Fit 2
1
⁄2" dust hose over dust port, as shown
in Figure 12, and secure in place with hose
clamp.
Recommended CFM at Dust Port: 250 CFM
Do not confuse this CFM recommendation with
the rating of the dust collector. To determine the
CFM at the dust port, you must consider these
variables: (1) CFM rating of the dust collector,
(2) hose type and length between the dust col-
lector and the machine, (3) number of branches
or wyes, and (4) amount of other open lines
throughout the system. Explaining how to cal-
culate these variables is beyond the scope of
this manual. Consult an expert or purchase a
good dust collection "how-to" book.
This machine creates substantial amounts
of dust during operation. Breathing air-
borne dust on a regular basis can result in
permanent respiratory illness. Reduce your
risk by wearing a respirator and capturing
the dust with a dust collection system.
2. Tug hose to make sure it does not come off.
Note: A tight fit is necessary for proper per-
formance.
