Grizzly G4030 - Electrical Components

G4030 6
1
⁄2" x 10" Metal-Cutting Bandsaw
-33-
Electrical Components

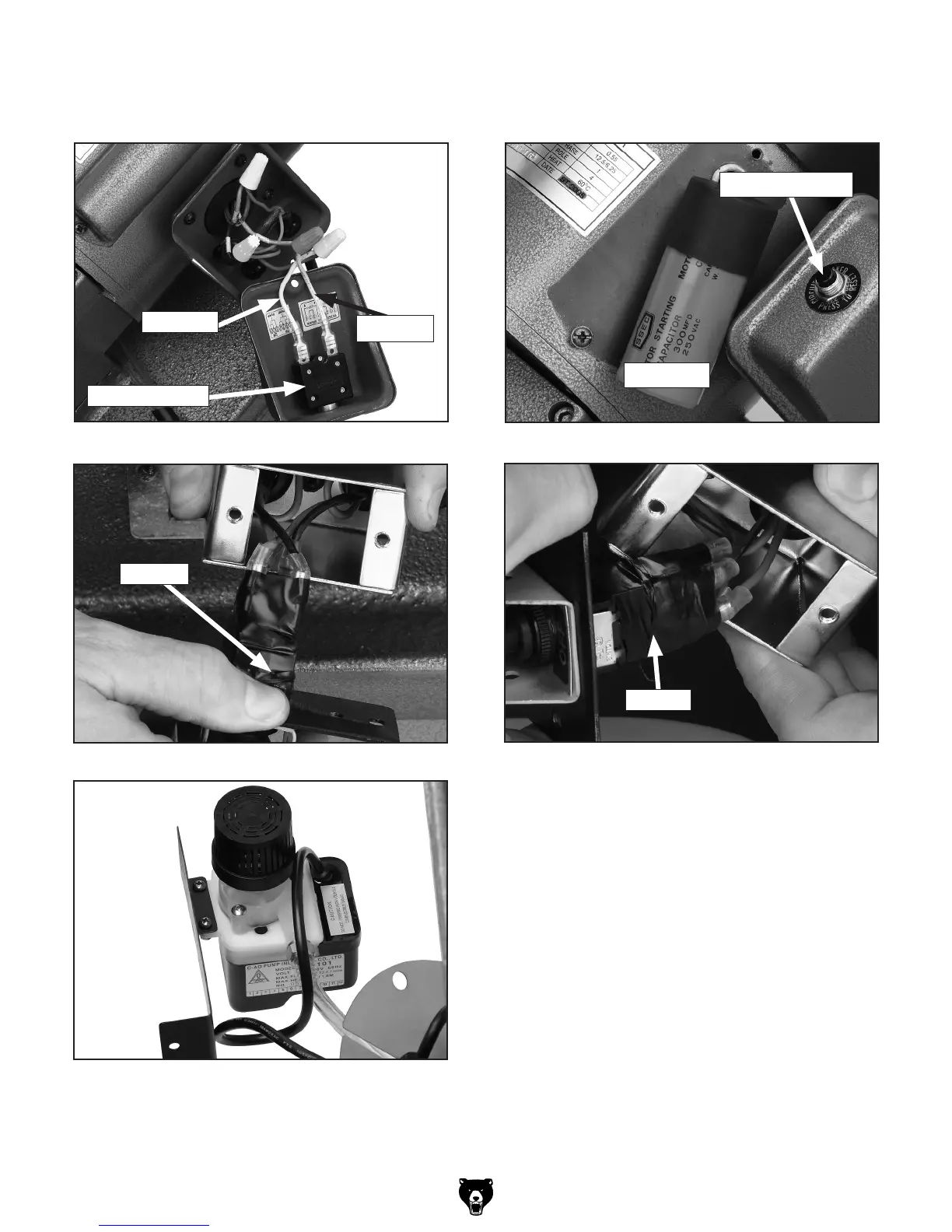

Figure 45. Motor wiring inside junction box.
Figure 48. G4030 Start capacitor.
Figure 46. Bandsaw ON/OFF Switch wiring.
Figure 49. Pump ON/OFF Switch wiring.
Figure 47. Submersible pump.
To Pump
Capacitor
To Motor
Circuit Breaker
Circuit Breaker
Switch
Switch
