Grizzly T33959 - Headstock Controls and Components

Model T33959/60/61 (Mfd. Since 08/23)
-5-
M. LED: Adjusts in headstock seat to illuminate
work area.
N. LED Switch: Turns LED ON or OFF.
O. Laser Switch: Turns laser guide ON or OFF.
P. Laser Guide: Projects crosshairs on table to
align workpiece to drill bit.
Headstock
Q
S
T
R
Q. Spindle Speed Lever: Adjusts spindle
speed.
R. Depth Stop: Stops spindle travel at
predetermined drilling depth. Bottom of depth
stop nut indicates depth on scale.
S.
Spindle Return Spring: Automatically
returns quill into headstock.
O
P
M
N

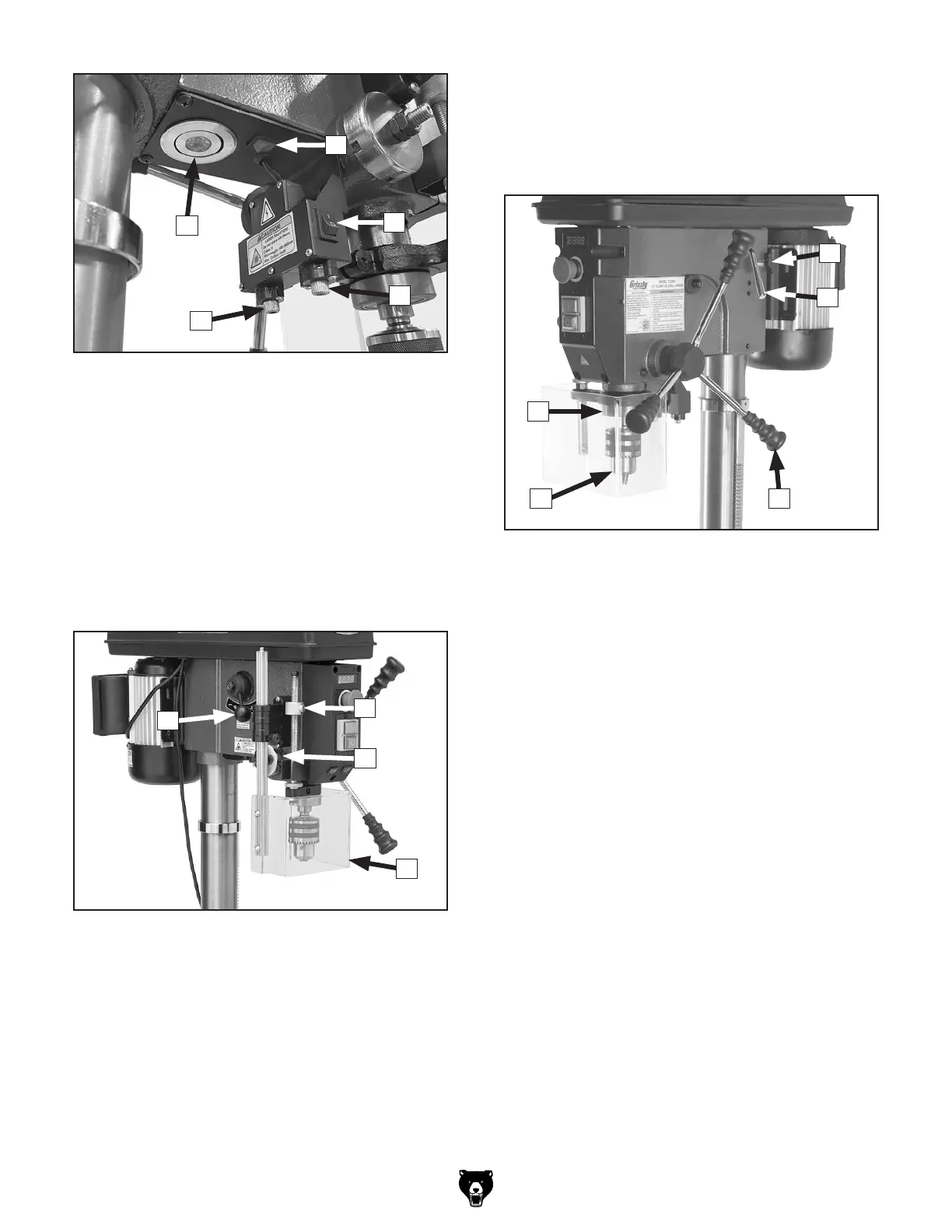

Figure 4. Laser guide and LED.
U. Belt Tension Lock (T33960/T33961 Only):
Locks motor position.
V. Belt Tension Lever (T33960/T33961 Only):
Adjusts motor position to tension and release
belts for changing spindle speed and service.
W. Downfeed Handle (1 of 3): Moves spindle
down when pulled down. Spindle automati-
cally returns to top position when released.
X.
Chuck: Accepts drill bits with up to
5
⁄8"
shanks.
Y.
Quill: Houses spindle and spindle bearings.
WX
Y
U
V
Figure 5. Left headstock components.
Figure 6. Right headstock components.
T. Chip Guard: Protects user from flying debris.
When chip guard is opened, micro switch
stops spindle and prevents it from starting.
Adjusts up and down and pivots out of the
way for tooling changes and maintenance.
