Water Connection(s)
No water connection is needed. The water will be
poured directly into the water cavity reservoir. Avoid
the use of any chemically treated water specifically
filtered water.
Instructions for connecting the optional auto-fill drain
kit are included with the kit.
Drain Connection
The Vortex™ Connectionless Steamer should be
manually drained to the bottom containment pan
supplied by the factory. If the unit is connected to a
drain, do not connect more than two units to one
drain line or pressure from one unit will effect the
second unit.
Stacking Units Instructions
Remove drain containment pan from the bottom of
unit(s). Unscrew to remove adjustable legs from
base of Vortex unit(s). Unfasten nuts and bolts on
stand platform(s). Place Vortex unit(s) on stand
platform. Align the (4) leg holes with the holes in the
platform. Secure Vortex unit(s) to stand platform(s)
using bolts and washers provided in step 2 as shown
in detail “A” of figure 1 on page 7.
For double stack units only:
By loosening the left screw and removing the right
screw provided, mount steam exhaust bracket
assembly to the back panel of the top Vortex unit as
shown in detail “B” of Figure 1 on page 7. Attach the
steam exhaust hose from the bottom Vortex unit’s
steam outlet tube to the top Vortex unit’s steam
exhaust bracket assembly using hose clamps
provided as shown in figure 2 on page 7. (Note:
Steam exhaust hose may need to be cut to fit.)
Steam Vent Assembly Instructions

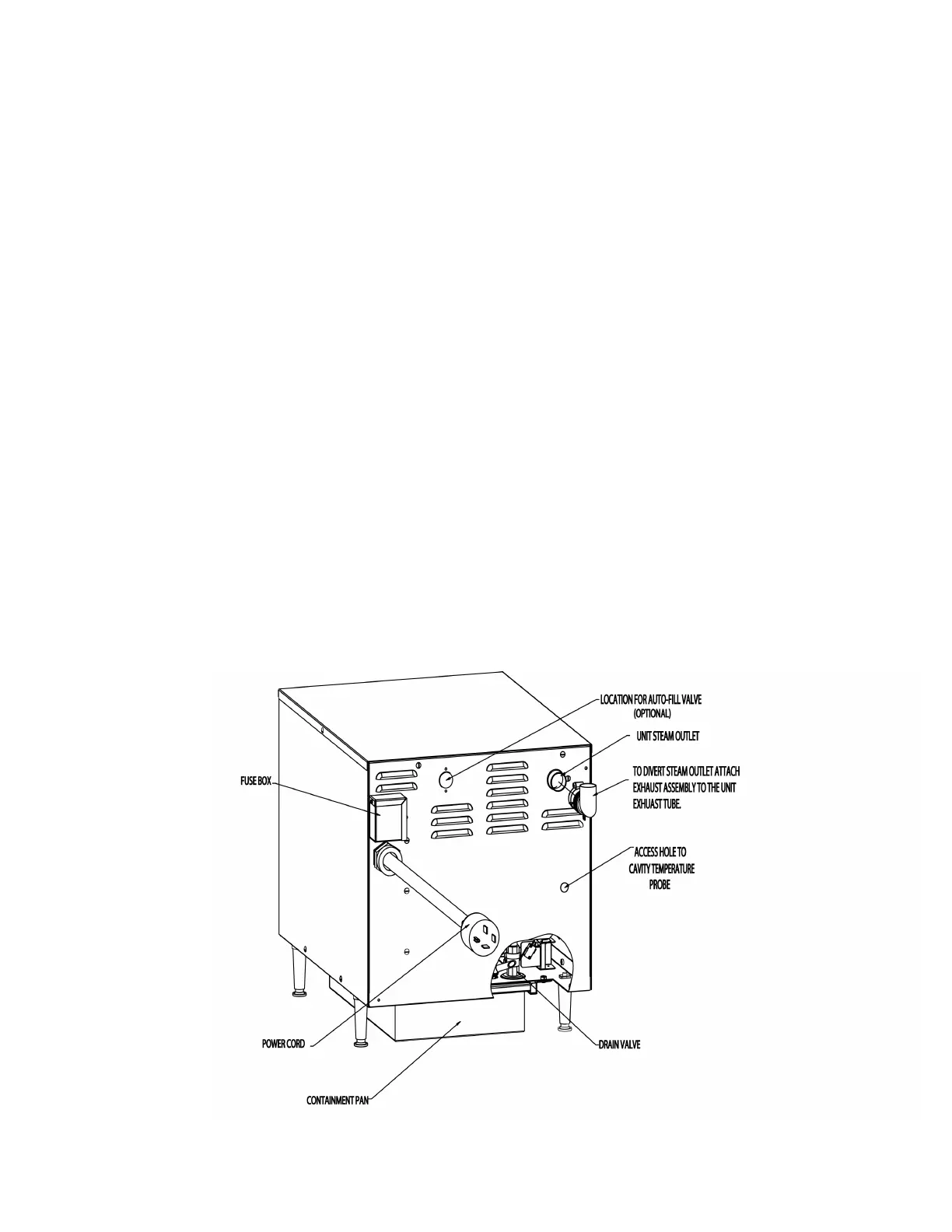

Remove steam diverter assembly from
literature bag which can be found inside of unit.
Slide loose end as shown over unit steam outlet,
tighten worm gear clamp with flat head screw driver.
Be sure steam outlet is pointing in the upward
position. (Shown below)
