Pump Clearance Requirements

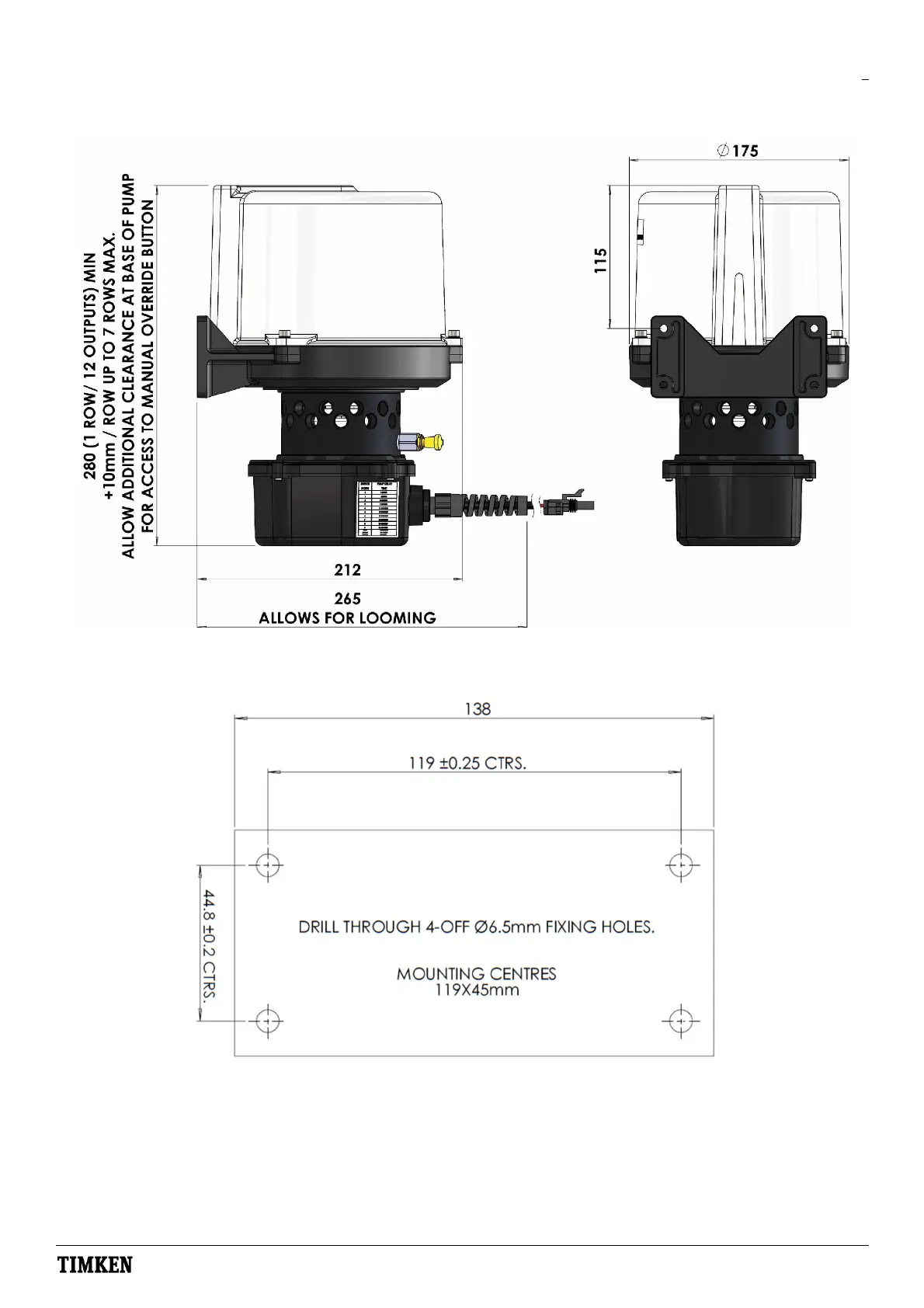

AC3 pump clearance:
1
Mounng Hole Dimensions
AC3 standard mounng posions:
Select a suitable mounting point for the pump on the chassis, preferably in a position where it is protected from
debris. Ensure adequate clearance for the looming, access to the override button and refilling clearance is made
(see images on the following page).
Do not mount the pump on to ancillary equipment, such as the battery housing or cover.
Using the pump mounting template, supplied with the pump, position and drill the bracket holes (mounting —
positions detailed as above). Use bolts, nuts and spring washers supplied to securely mount the pump in position.

