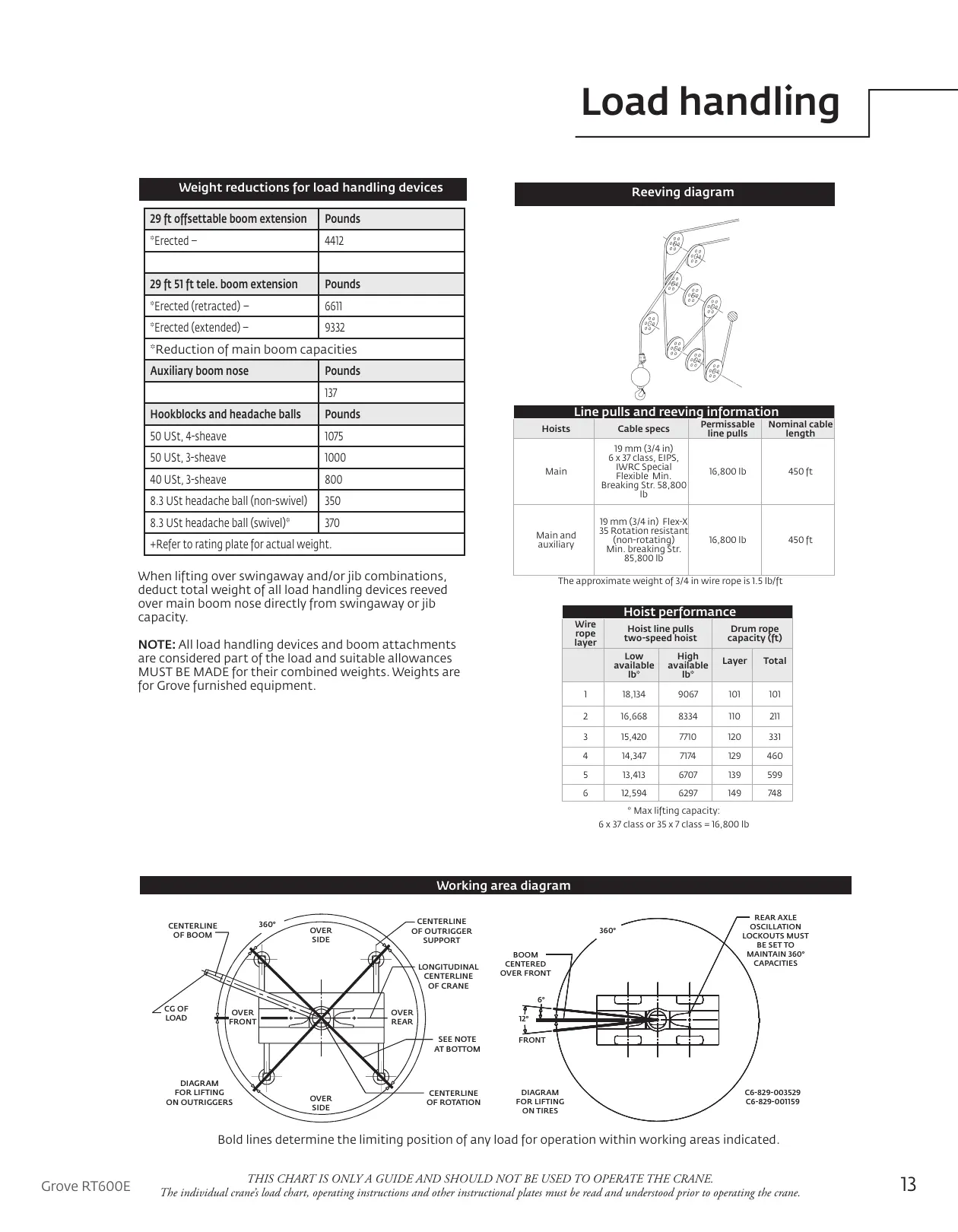

13Grove RT600E
Load handling
THIS CHART IS ONLY A GUIDE AND SHOULD NOT BE USED TO OPERATE THE CRANE.
The individual crane’s load chart, operating instructions and other instructional plates must be read and understood prior to operating the crane.
When lifting over swingaway and/or jib combinations,
deduct total weight of all load handling devices reeved
over main boom nose directly from swingaway or jib
capacity.
NOTE: All load handling devices and boom attachments
are considered part of the load and suitable allowances
MUST BE MADE for their combined weights. Weights are
for Grove furnished equipment.
Hoist performance
Wire
rope
layer
Hoist line pulls
twospeed hoist
Drum rope
capacity ft
Low
available
lb*
High
available
lb*
Layer Total
1 18,134 9067 101 101
2 16,668 8334 110 211
3 15,420 7710 120 331
4 14,347 7174 129 460
5 13,413 6707 139 599
6 12,594 6297 149 748
* Max lifting capacity:
6 x 37 class or 35 x 7 class = 16,800 lb
Working area diagram
Bold lines determine the limiting position of any load for operation within working areas indicated.
Line pulls and reeving information
Hoists Cable specs
Permissable
line pulls
Nominal cable
length
Main
19 mm (3/4 in)
6 x 37 class, EIPS,
IWRC Special
Flexible Min.
Breaking Str. 58,800
lb
16,800 lb 450 ft
Main and
auxiliary
19 mm (3/4 in) Flex-X
35 Rotation resistant
(non-rotating)
Min. breaking Str.
85,800 lb
16,800 lb 450 ft
The approximate weight of 3/4 in wire rope is 1.5 lb/ft
Weight reductions for load handling devices
Reeving diagram
ft offsettable boom extension Pounds
*Erected – 4412
ft ft tele. boom extension Pounds
*Erected (retracted) – 6611
*Erected (extended) – 9332
*Reduction of main boom capacities
Auxiliary boom nose Pounds
137
Hookblocks and headache balls Pounds
50 USt, 4-sheave 1075
50 USt, 3-sheave 1000
40 USt, 3-sheave 800
8.3 USt headache ball (non-swivel) 350
8.3 USt headache ball (swivel)* 370
+Refer to rating plate for actual weight.
CENTERLINE
OF BOOM
DIAGRAM
FOR LIFTING
ON OUTRIGGERS
CENTERLINE
OF OUTRIGGER
SUPPORT
LONGITUDINAL
CENTERLINE
OF CRANE
SEE NOTE
A T BOTTOM
CENTERLINE
OF ROT A TION
CG OF
LO AD
OVER
FRONT
OVER
REAR
OVER
SIDE
OVER
SIDE
°
REAR AXLE
OSCILLATION
LOCKOUTS MUST
BE SET TO
MAINTAIN °
CAPACITIES
BOOM
CENTERED
OVER FRONT
DIAGRAM
FOR LIFTING
ON TIRES
C
C
FRONT
°
°
°
