5Grove RT600E
*Denotes optional equipment

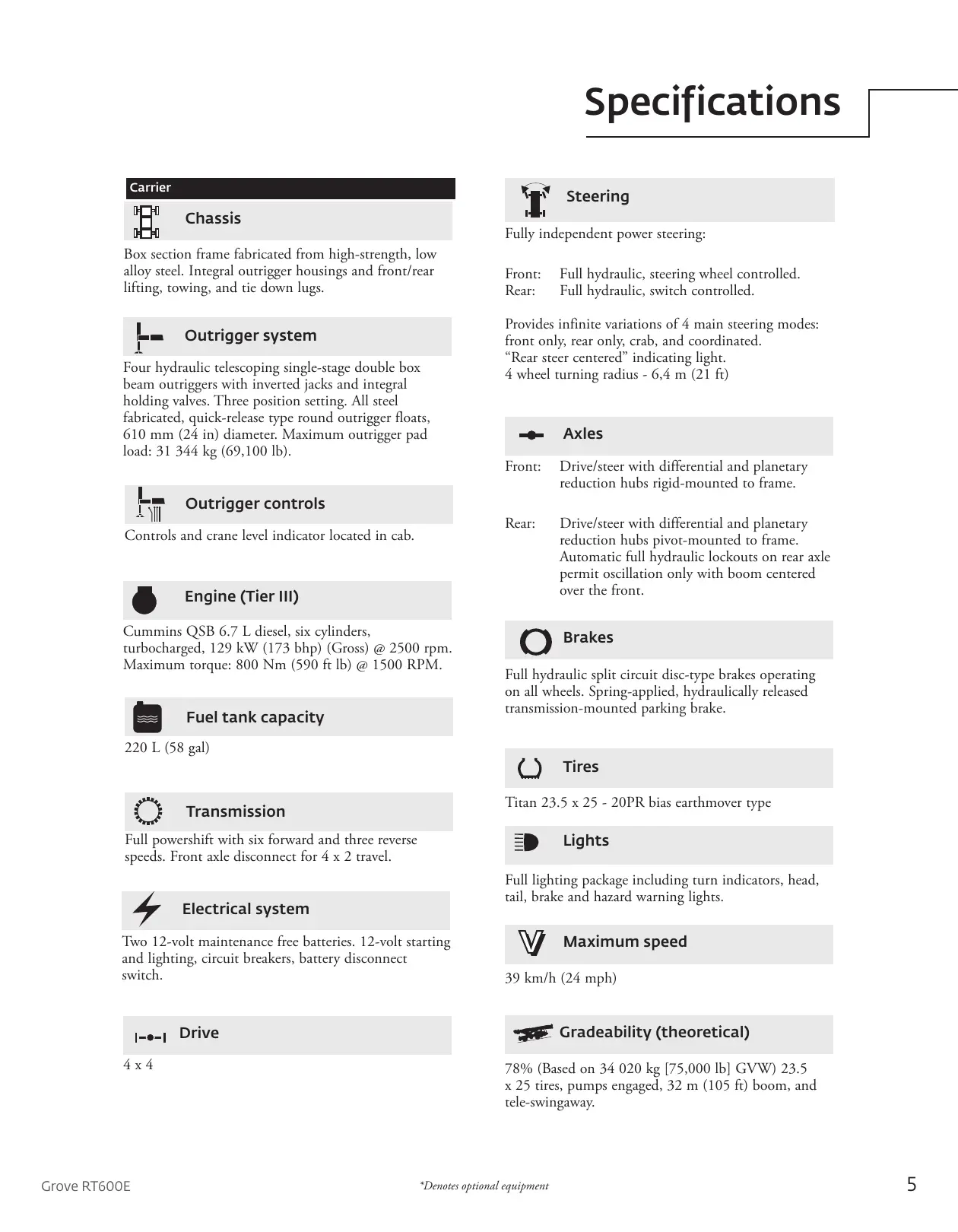

Specifications
Carrier
Chassis
Box section frame fabricated from high-strength, low
alloy steel. Integral outrigger housings and front/rear
lifting, towing, and tie down lugs.
Outrigger system
Four hydraulic telescoping single-stage double box
beam outriggers with inverted jacks and integral
holding valves. Three position setting. All steel
fabricated, quick-release type round outrigger floats,
610 mm (24 in) diameter. Maximum outrigger pad
load: 31 344 kg (69,100 lb).
Outrigger controls
Controls and crane level indicator located in cab.
Engine (Tier III)
Cummins QSB 6.7 L diesel, six cylinders,
turbocharged, 129 kW (173 bhp) (Gross) @ 2500 rpm.
Maximum torque: 800 Nm (590 ft lb) @ 1500 RPM.
Fuel tank capacity
220 L (58 gal)
Transmission
Full powershift with six forward and three reverse
speeds. Front axle disconnect for 4 x 2 travel.
Electrical system
Two 12-volt maintenance free batteries. 12-volt starting
and lighting, circuit breakers, battery disconnect
switch.
Axles
Front: Drive/steer with differential and planetary
reduction hubs rigid-mounted to frame.
Rear: Drive/steer with differential and planetary
reduction hubs pivot-mounted to frame.
Automatic full hydraulic lockouts on rear axle
permit oscillation only with boom centered
over the front.
Full hydraulic split circuit disc-type brakes operating
on all wheels. Spring-applied, hydraulically released
transmission-mounted parking brake.
Brakes
Titan 23.5 x 25 - 20PR bias earthmover type
Tires
Full lighting package including turn indicators, head,
tail, brake and hazard warning lights.
Lights
4 x 4
Drive
39 km/h (24 mph)
Maximum speed
Fully independent power steering:
Front: Full hydraulic, steering wheel controlled.
Rear: Full hydraulic, switch controlled.
Provides infinite variations of 4 main steering modes:
front only, rear only, crab, and coordinated.
“Rear steer centered” indicating light.
4 wheel turning radius - 6,4 m (21 ft)
78% (Based on 34 020 kg [75,000 lb] GVW) 23.5
x 25 tires, pumps engaged, 32 m (105 ft) boom, and
tele-swingaway.
Gradeability (theoretical)
Steering
