Growatt ARK 2.5H-A1 User Manual

5 / 28

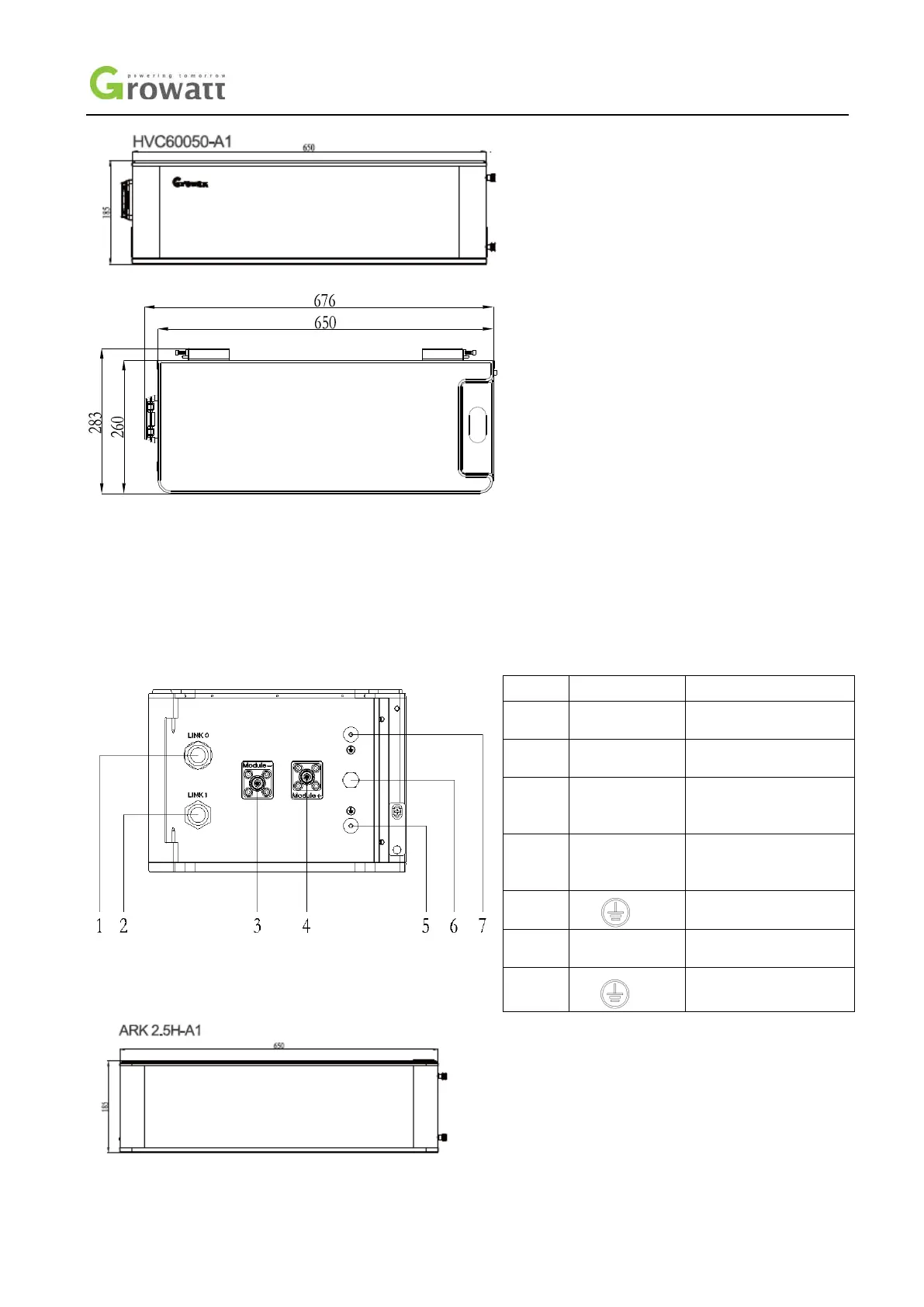

Figure 3: Dimension of HVC 60050-A1
1.2.2 ARK 2.5H-A1 (battery pack)
ARK 2.5H-A1 consists of battery module (including cell and mechanical parts), Battery management unit (BMU) as well as power
and communication terminals. Product appearance is shown as below.
Figure 4: Schematic diagram of power panel
Dimension (unit: mm)
Location Port Function
1 Link0
Communicate with the
previous module Link1
2
Link1 Communicate with the
next module Link0
3 Module-
Connect to the positive
terminal of the adjacent
module
4 Module+
Connect to the negative
terminal of the adjacent
module
5 Ground terminal
6
Pressure relief
valve
Pressures inside is
released via the vent
7 Ground terminal
