17 / 28
Step 1: Place the battery base in the area to be installed, and mark the position of the installation hole with a marker. The minimum
distance between the wall and the battery is 300mm.
Step 2: Select an alloy drill with a diameter of 10mm and drill a mounting hole at least 60mm deep in the wall. Insert the expansion
pipe into the hole and screw in the screws to secure the anti roll over plate.
Step 3: Stack the battery on the base, connect the fixed connecting strip between the battery packs.
Step 4:
Make sure the battery will not shake, and then lock the safety screw.
Notice
If more than 4 batteries are used , base mounting is recommended.
For floor installation with base , the maximum stack number of the battery is ten. But if the battery number is greater than six ,
we recommend stacking them in two lines.
The safety part needs to be installed at the top battery, however, once the number of the battery pack is higher than 7, one
more safety part should be installed in the middle battery which is shown the last step.
4.4 Electrical Connection
Notice
Do not forget wear ESD wrist strap and gloves, safety gloves and goggles

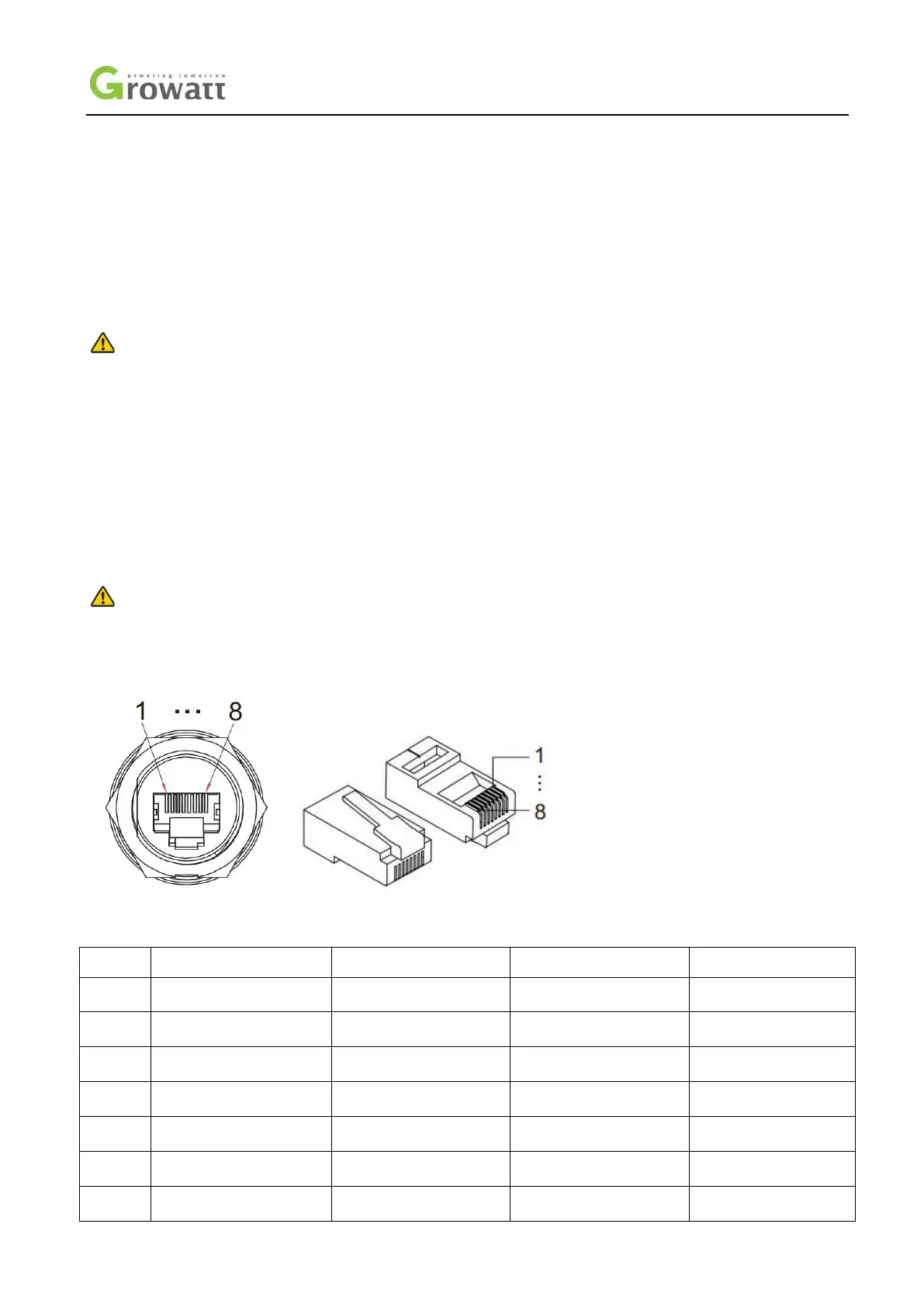

4.4.1 Definition of RJ45 communication port pin
4.4.1.1 Communication port definition of HVC 60050-A1
No. PCS
LINK_IN LINK_OUT
BMU
1
RS485_B Add_in Add_out \
2
RS485_A Master GND \
3
GND GND Slaver IMA_isoSPI
4
CAN_H GND GND IPA_isoSPI
5
CAN_L CANH CANH IMB_isoSPI
6
GND CANL CANL IPB_isoSPI
7
WAKE- GND GND \
To Next Page
