DC
a) Connect with Growatt Solar Panels
You can charge the INFINITY 1 00 by connecting up to two 24V solar panels in series or using one 12V solar 5
panels(two sets in parallel with each set of four panels in series). Connect the MC4 connector on the solar
panel to the MC4-XT60 adapter cable, and supply power to the INFINITY 1 00 through the XT60 port on the 5
side of the INFINITY 1 00. When you need to connect two solar panels, it is recommended to connect the two 5
solar panels in parallel, and then use the MC4-XT60 adapter cable to connect to the INFINITY 1 00 for charging.5

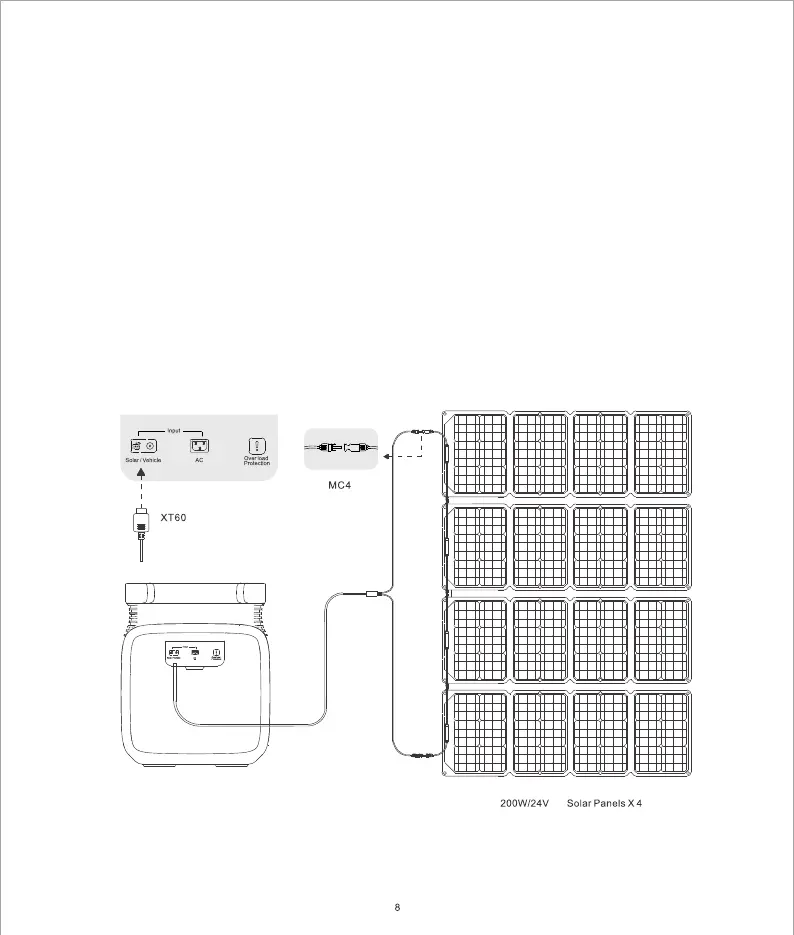

Connecting to Four 24V/200W Solar Panels in Series
