DC

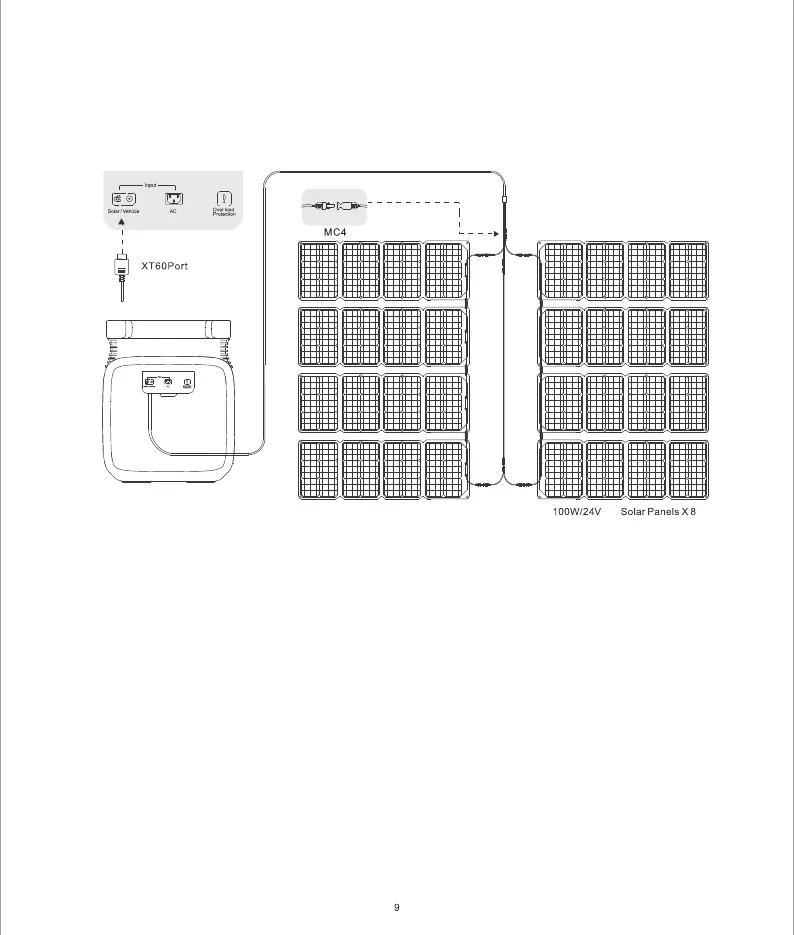

Connecting to Eight 24V/100W Solar Panels(Two Sets in Parallel with Each Set of Four Panels in Series)
b) Connect with Other Branded Solar Panels
Users can purchase other brands of solar panels (supporting MC4 Connector) to power the INFINITY 1 00 5
through their own channels. As long as the voltage and current are within the DC input range of INFINITY 1 00 5
(12V-100V/12A Max), users can charge INFINITY 1 00 through the MC4 to XT60 adapter cable. 5
Please follow the figure below to connect the positive and negative poles. Incorrect connection may result in
damage to the product. During the warranty period of product is damaged due to quality problems of the third-
party solar panels or improper operation, Growatt is not responsible for free maintenance during the
warranty period.
