Growatt MAC 25KTL3-XL User Manual

3 Product Introduction

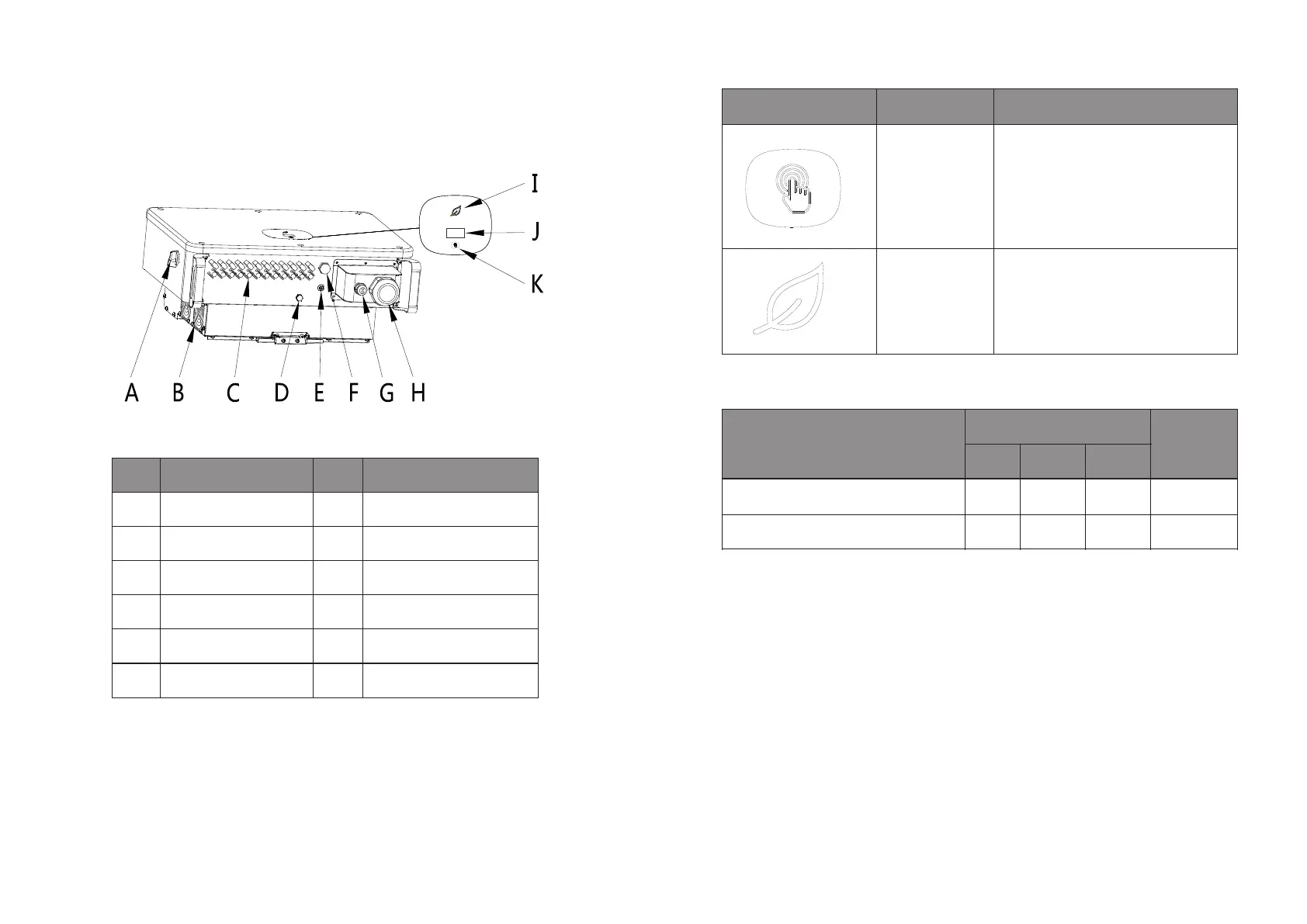

3.1 Appearance
Front view:
Mark
Description
Mark
Description
A
DC switch
G
485 Waterproof connector
B
Fan
H
AC Waterproof connector
C
PV input terminal
I
LED Indicator light
D
Breathable valve
J
OLED Screen
E
Safety ground terminal
K
Touch button
F
USB interface
3.2 Size Description
Model
Size（unit：mm）
Weight
(unit: kg)
Width
High
Deep
MAC series PV inverter
680
508
281
52
MAC series PV Inverter with packaging
730
650
350
60
Figure 3.1
6
5
Identification
Description
Explanation
Touch mark
Touch button to switch OLED display
and set parameters by touch
Inverter status
identification
Indicates the current operating status
of the inverter:
1. Red: Fault
2. Green: normal operation
3. Red light flashes: warning
4. Green light flashes: update program
