Growatt MIN 2500 TL-XH User Manual

32
6.5.2 Connecting the Bidirectional DC/DC Box
DANGER
Danger to life due to lethal voltages!
Before connecting the Bidirectional DC/DC Box, ensure that the Box do not
connect any power supply. NEVER connect or disconnect the BAT connectors
under load.
Forbidden to reverse the positive and negative poles of the Bidirectional DC/DC Box
and the inverter.
WARNING
Improper operation during the wiring process can cause fatal injury to operator or
unrecoverable damage to the inverter. Only qualified personnel can perform the
wiring work.

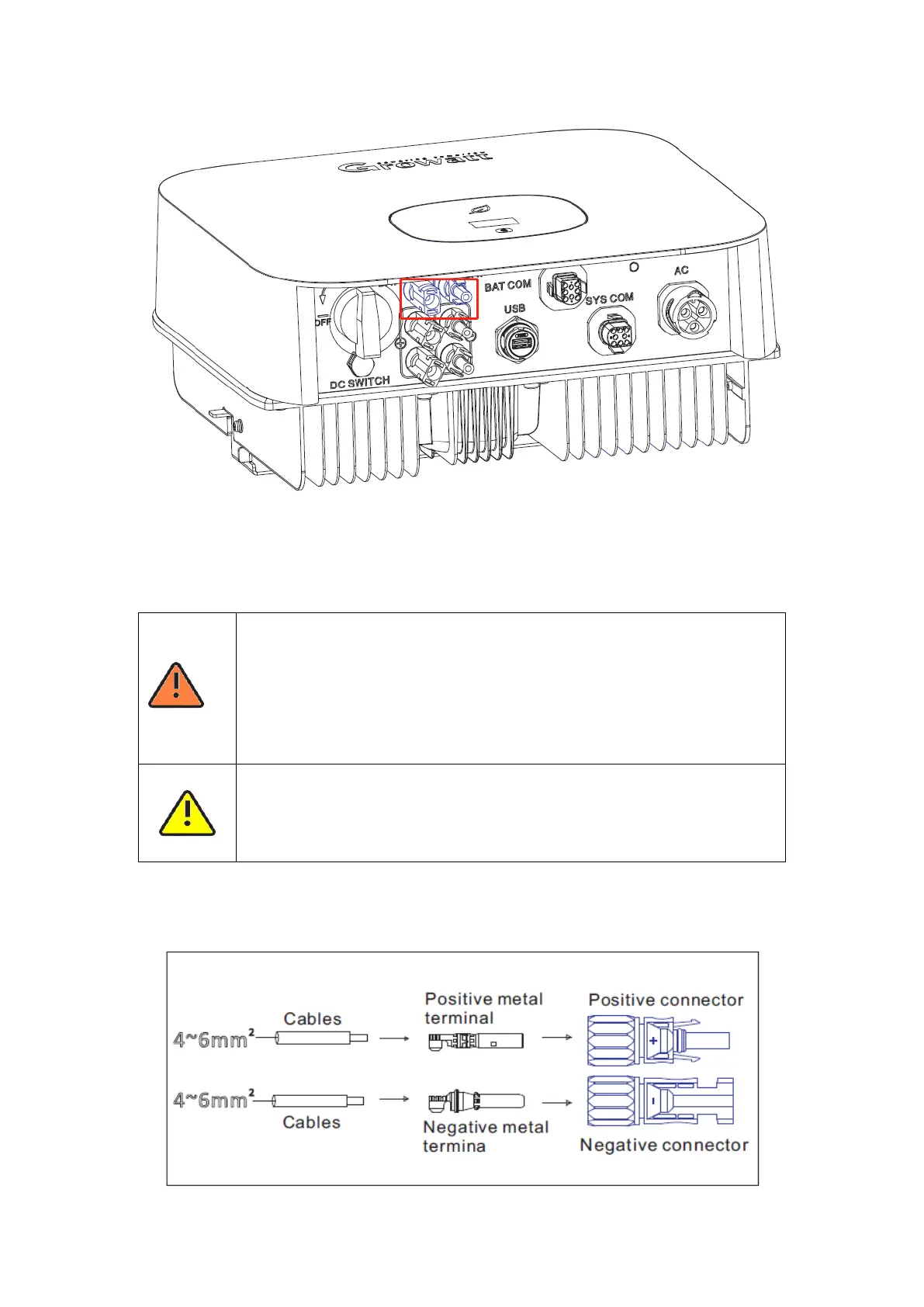

Connection of BAT input terminal

Growatt MIN 2500 TL-XH Specifications

General

Rated Output Power	2500 W
Max. Short Circuit Current per MPPT	15 A
Nominal AC Power	2500 W
AC Voltage Range	180 - 280 V
THD	<3 %
DC Connection Type	MC4
Topology	Transformerless
Protection Degree	IP65
Warranty	5 years
Nominal AC Voltage	230 V
Nominal Grid Frequency	50/60 Hz
AC Connection Type	Plug
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Communication	WiFi (Optional)
