Growatt MIN 2500TL-X User Manual

13
A
Cover
B
DC SWITCH
C
PV INPUT +
D
LED
E
OLED
F
TOUCH BUTTON
G
DRM PORT
H
AC OUTPUT
I
VENTILATION VALVE
J
PV INPUT-
K
USB PORT
L
COM PORT

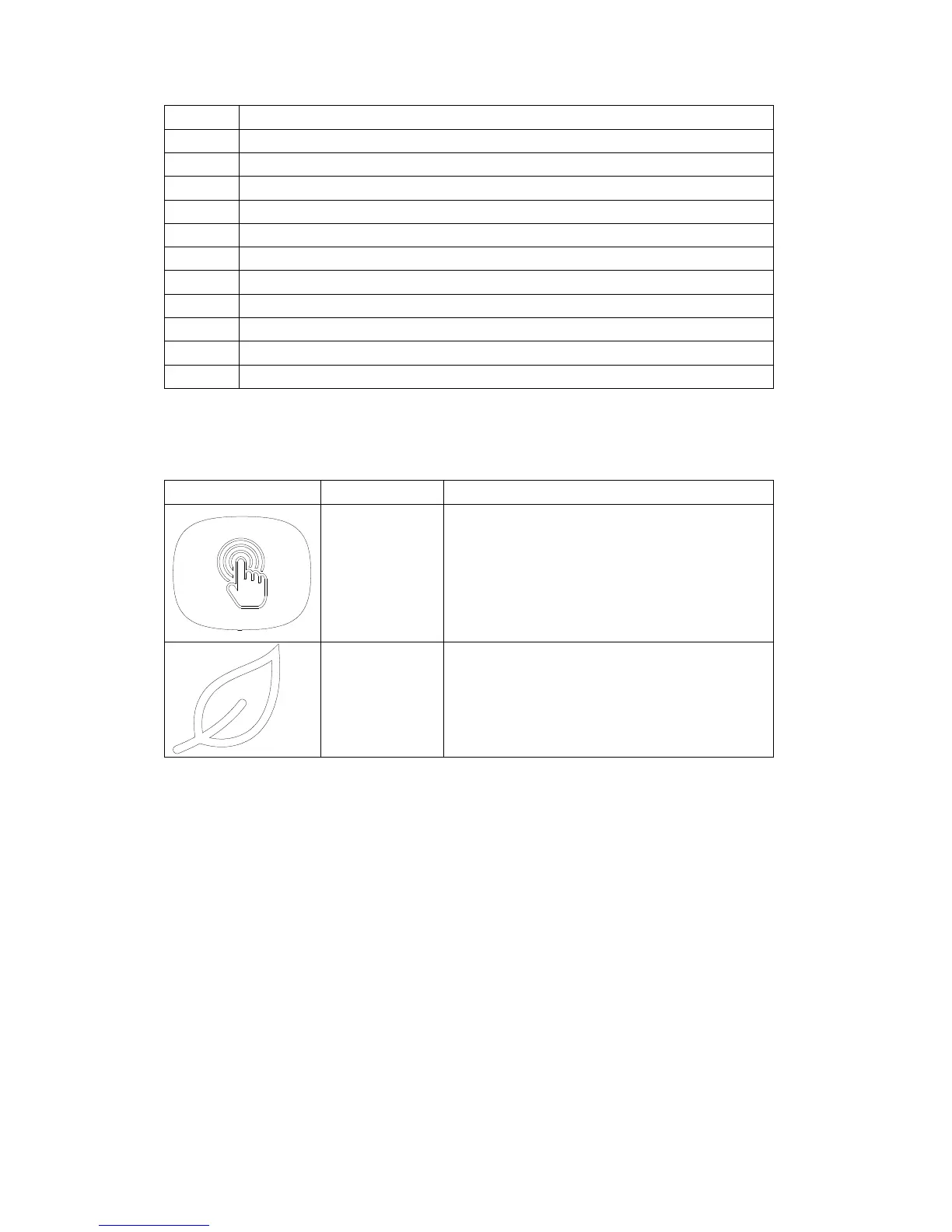

Symbol on the inverter
Symbol
Description
Explanation
Touch symbol
Touch button.We can switch the OLED display
and set parameter by touching.
Inverter status
symbol
Indicates inverter operation status:
Red:Fault.
Green:Nomal.
Red leaf flash:Warning or DSP Programming.
Green leaf flash:M3 Programming.
3.2 Type label
The type labels provide a unique identification of the inverter (The type of product,
Device-specific characteristics, Certificates and approvals). The type labels are on the
left-hand side of the enclosure.

Growatt MIN 2500TL-X Specifications

General

Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Reverse polarity, Short circuit
International Protection (IP) code	IP65
Noise level	35 dB
Product type	-
Maximum power	2500 W
Output current	13.3 A
DC input voltage	500 V
Number of phases	1
Output frequency	50/60 Hz
Starting voltage	100 V
MPP voltage range	80 - 500 V
Output power capacity (max)	- kVA
Input operation voltage (min)	80 V
Output operation voltage (max)	280 V
Output operation voltage (min)	180 V
Operating temperature (T-T)	-25 - 60 °C
Wi-Fi	Yes
Display technology	OLED

Weight and Dimensions

Depth	160 mm
Width	375 mm
Height	350 mm
Weight	10800 g
