Growatt MIN 2500TL-X - Connecting the PV Array (DC Input)

29
WARNING

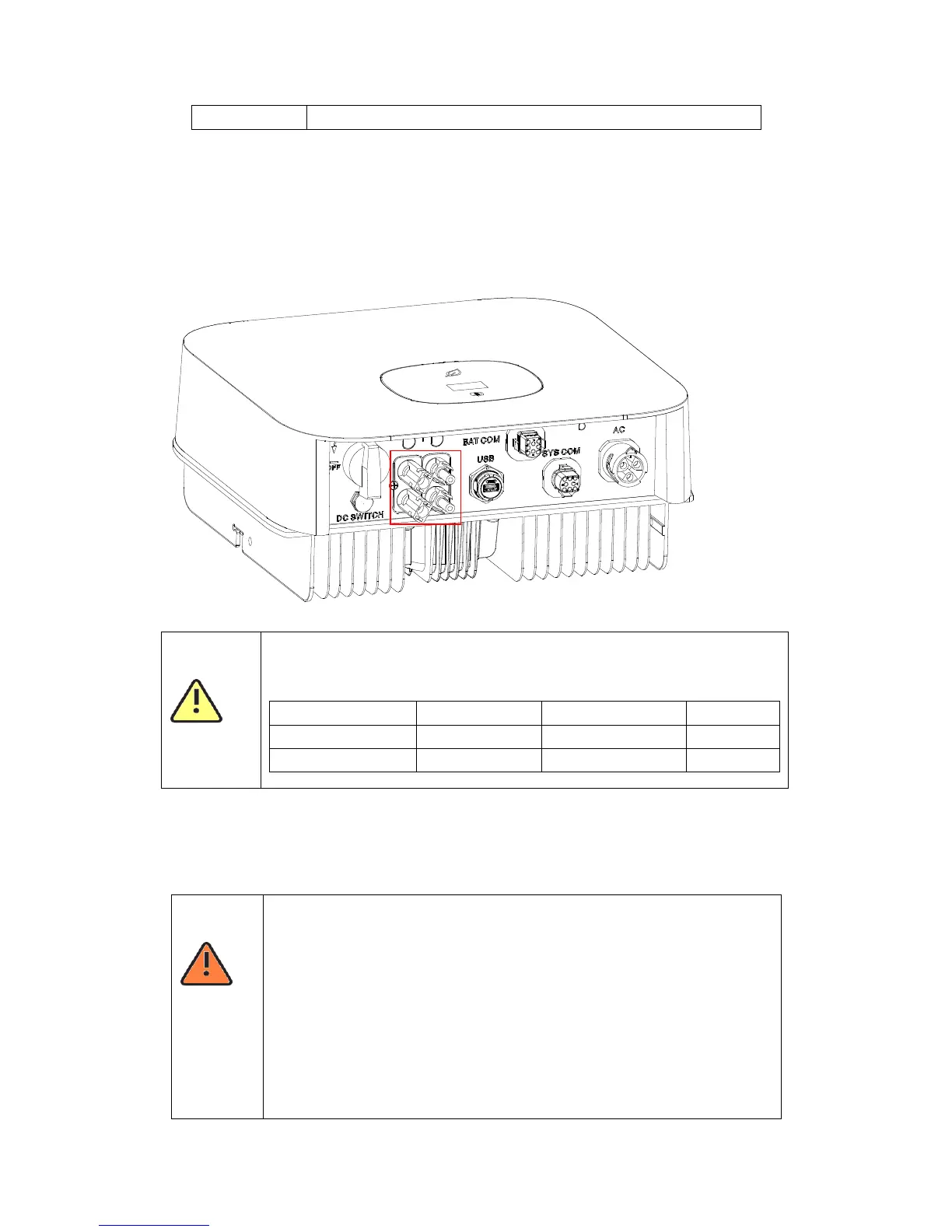

The MIN TL-X single-phase inverter has 2 independent input : PV1 & PV2
Notice that the connectors are in paired (male and female connectors). The connectors
for PV arrays and inverters are VP-D4 connectors;
CAUTION
If the inverter is not equipped with a DC switch but this is mandatory in the
country of installation, install an external DC switch.
The following limit values at the DC input of the inverter must not be exceeded:
Types
Max current PV1
Max current input B
Max voltage
2500-3600 TL-X
12.5A
12.5A
500V
4200-6000 TL-X
12.5A
12.5A
550V
6.4.2 Connecting the PV Array (DC input)
DANGER
Danger to life due to lethal voltages!
PV array supplies d.c voltage to inverter when exposed to light,before connecting
the PV array, conver some light screens above PV arrays,ensure that the DC
switch and AC breaker are disconnect from the inverter. NEVER connect or
disconnect the DC connectors under load.
Make sure the maximum open circuit voltage(Voc) of each PV string is
less than the maximum input voltage of the inverter.
Check the design of the PV plant. The Max. open circuit voltage, which can
occur at solar panels temperature of -10℃, must not exceed the Max. input
