Growatt MIN 2500TL-X User Manual

20
 Be sure that the inverter is out of the children’s reach.
 Don’t put any things on the inverter. Do not cover the inverter.
 Do not install the inverter near television antenna or any other antennas and
antenna cables.
 Inverter requires adequate cooling space. Providing better ventilation for the
inverter to ensure the heat escape adequately. The ambient temperature
should be below 40°C to ensure optimum operation.
 Do not expose the inverter to direct sunlight, as this can cause excessive
heating and thus power reduction.

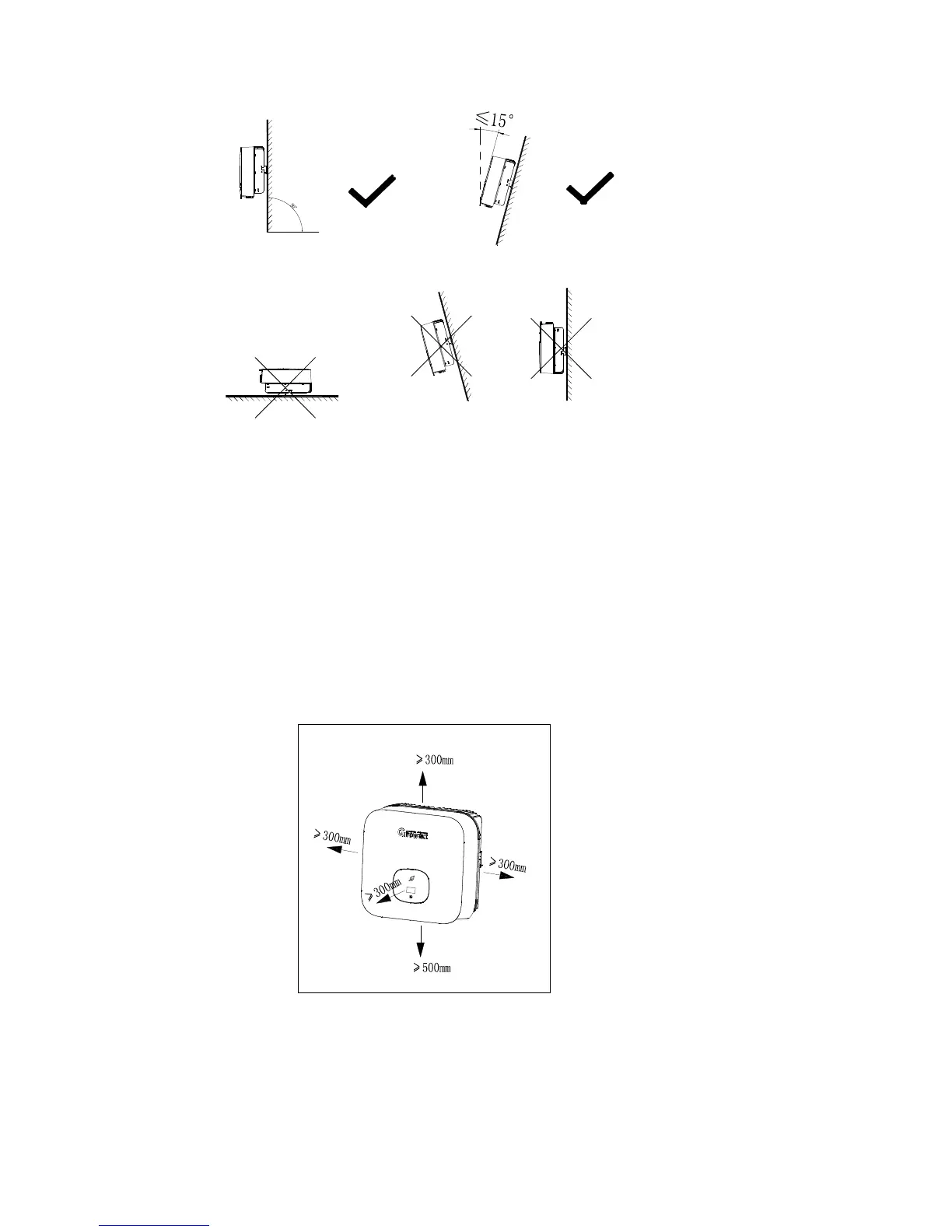

 Observe the Min. clearances to walls, other inverters, or objects as shown
below:
Ambient dimensions of one inverter

Growatt MIN 2500TL-X Specifications

General

Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Reverse polarity, Short circuit
International Protection (IP) code	IP65
Noise level	35 dB
Product type	-
Maximum power	2500 W
Output current	13.3 A
DC input voltage	500 V
Number of phases	1
Output frequency	50/60 Hz
Starting voltage	100 V
MPP voltage range	80 - 500 V
Output power capacity (max)	- kVA
Input operation voltage (min)	80 V
Output operation voltage (max)	280 V
Output operation voltage (min)	180 V
Operating temperature (T-T)	-25 - 60 °C
Wi-Fi	Yes
Display technology	OLED

Weight and Dimensions

Depth	160 mm
Width	375 mm
Height	350 mm
Weight	10800 g
