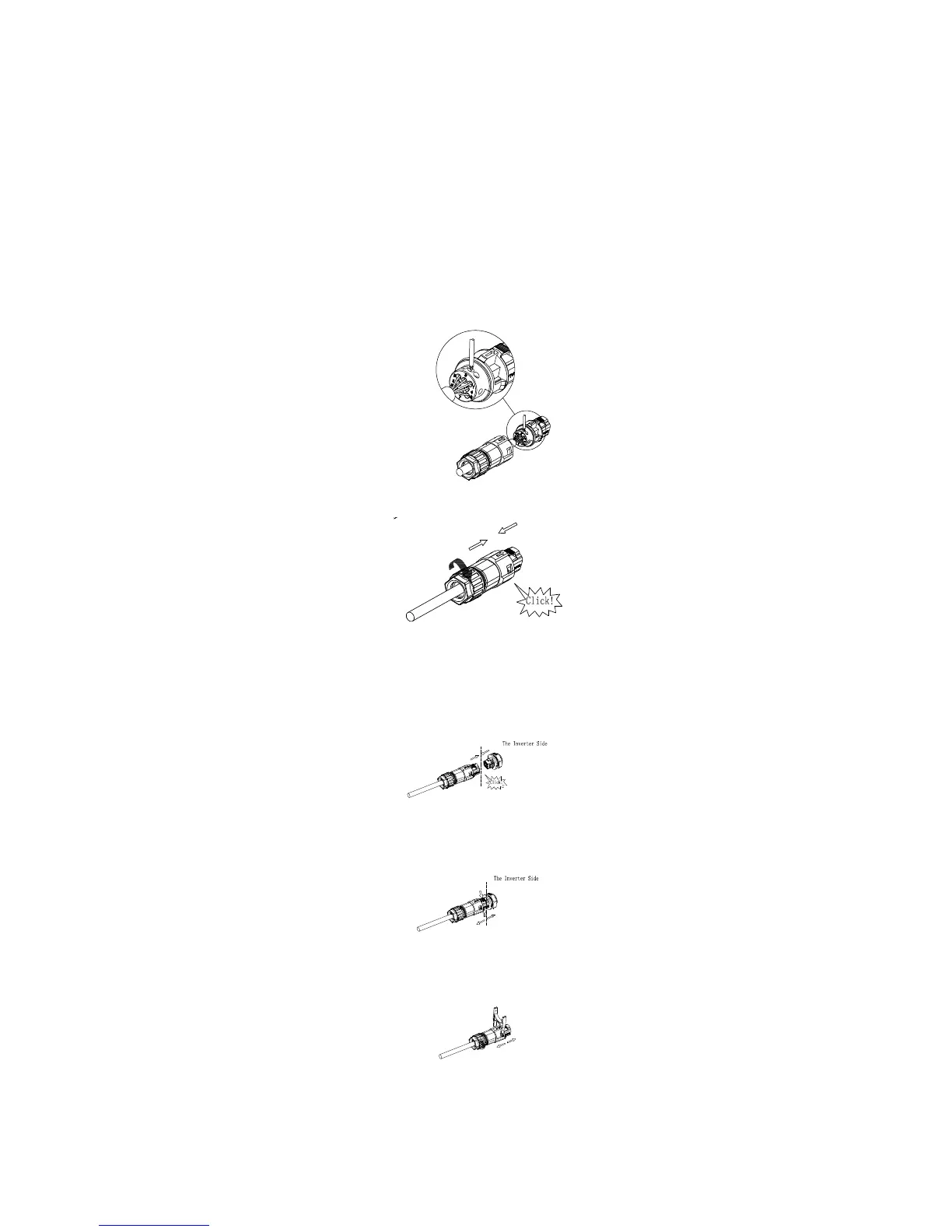

Procedure
Step 1 Insert the stripped and bared cable through pressure screw, seal ring, threaded sleeve in
sequence, insert cables into connection terminal according to number indicates on it and tighten
the screws firmly. Please try to pull out the wire to make sure the it’s well connected.
Step 2 Push the threaded sleeve into the socket, Tighten up the cap on the terminal.
Step 3 Push the threaded sleeve to connection terminal until both are locked tightly on the
inverter.
Uninstall signal connector
Step 1 Press the fasteners and pull it out from the inverter.
Step 2 Insert the H type tool and pull it out from the socket.

Growatt MIN 2500TL-X Specifications

General

Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Reverse polarity, Short circuit
International Protection (IP) code	IP65
Noise level	35 dB
Product type	-
Maximum power	2500 W
Output current	13.3 A
DC input voltage	500 V
Number of phases	1
Output frequency	50/60 Hz
Starting voltage	100 V
MPP voltage range	80 - 500 V
Output power capacity (max)	- kVA
Input operation voltage (min)	80 V
Output operation voltage (max)	280 V
Output operation voltage (min)	180 V
Operating temperature (T-T)	-25 - 60 °C
Wi-Fi	Yes
Display technology	OLED

Weight and Dimensions

Depth	160 mm
Width	375 mm
Height	350 mm
Weight	10800 g
