Commissioning 7
CAUTION
WARNING
DANGER
Do not disconnect the DC connectors under load.
Improper operation during the wiring process can cause fatal
injury to operator or unrecoverable damage to the inverter.
Only qualified personnel can perform the wiring work.
Damage to the inverter due to moisture and dust penetration
ØMake sure the cable gland has been tightened firmly.
ØIf the cable gland are not mounted properly, the inverter can
be destroyed due to moisture and dust penetration. All the
warranty claim will be invalid.
Requirements：
üThe AC cable is correctly connected.
üThe DC cable is correctly connected.
üThe country is set incorrectly.
7.1 Start the inverter
7.1.1 Touch control
7.1.2 Country setting
Touch
Single touch
Double touch
Three touch
Hold 5s
Description
Switch display or Number +1
Enter
Previous menu
C o n f i r m c o u n t r y s e t t i n g o r
Number recover default value
Information
Country setting
When the inverter start up,we need to select the right country,if we
don't select any country, the inverter will run under AS/NZS4777.2 as
default for Australia,or run under VDE0126-1-1 for other region
after 30s.
When inverter powered on, OLED will light automatically. Once the PV power is
sufficient, OLED displays the following:
29
30

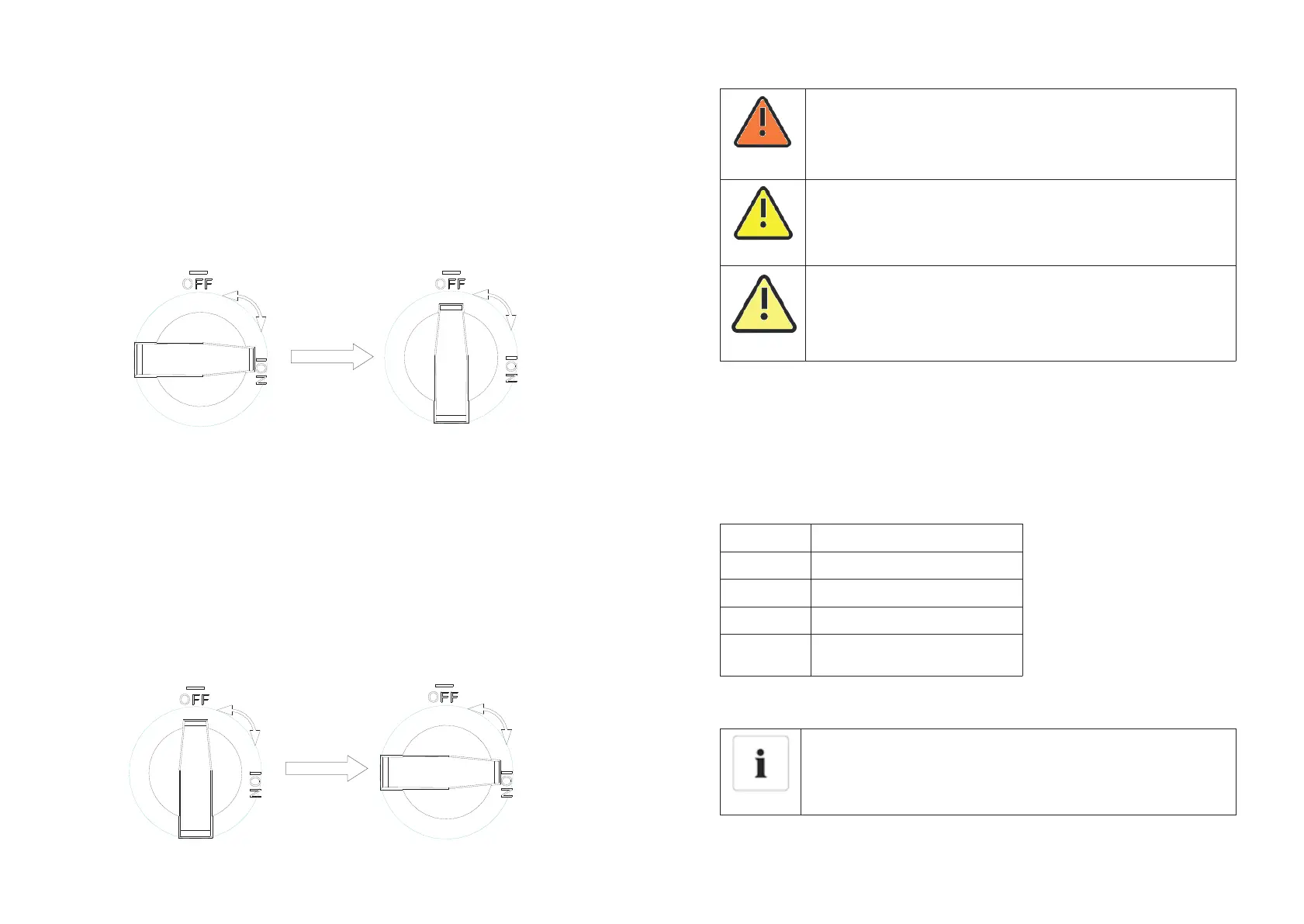

6.9.3 Operation step
6.9.3.1 Turn the DC & AC Disconnect to position "oFF".
6.9.3.2 Perform troubleshooting on the PV system:
Wait for the display to go out.
Check all PV strings for the correct open-circuit voltage.
6.9.3.3 After the fault is rectified, restart the inverter:
Turn the DC & AC Disconnect to position "ON".
The inverter has large electrical potential differences between its conductors. Arc
flashes can occur through air when high-voltage current flows. Do not work on the
product during operation.
When the inverter error 200, please follow the steps:
