Growatt MOD 10KTL3-X User Manual

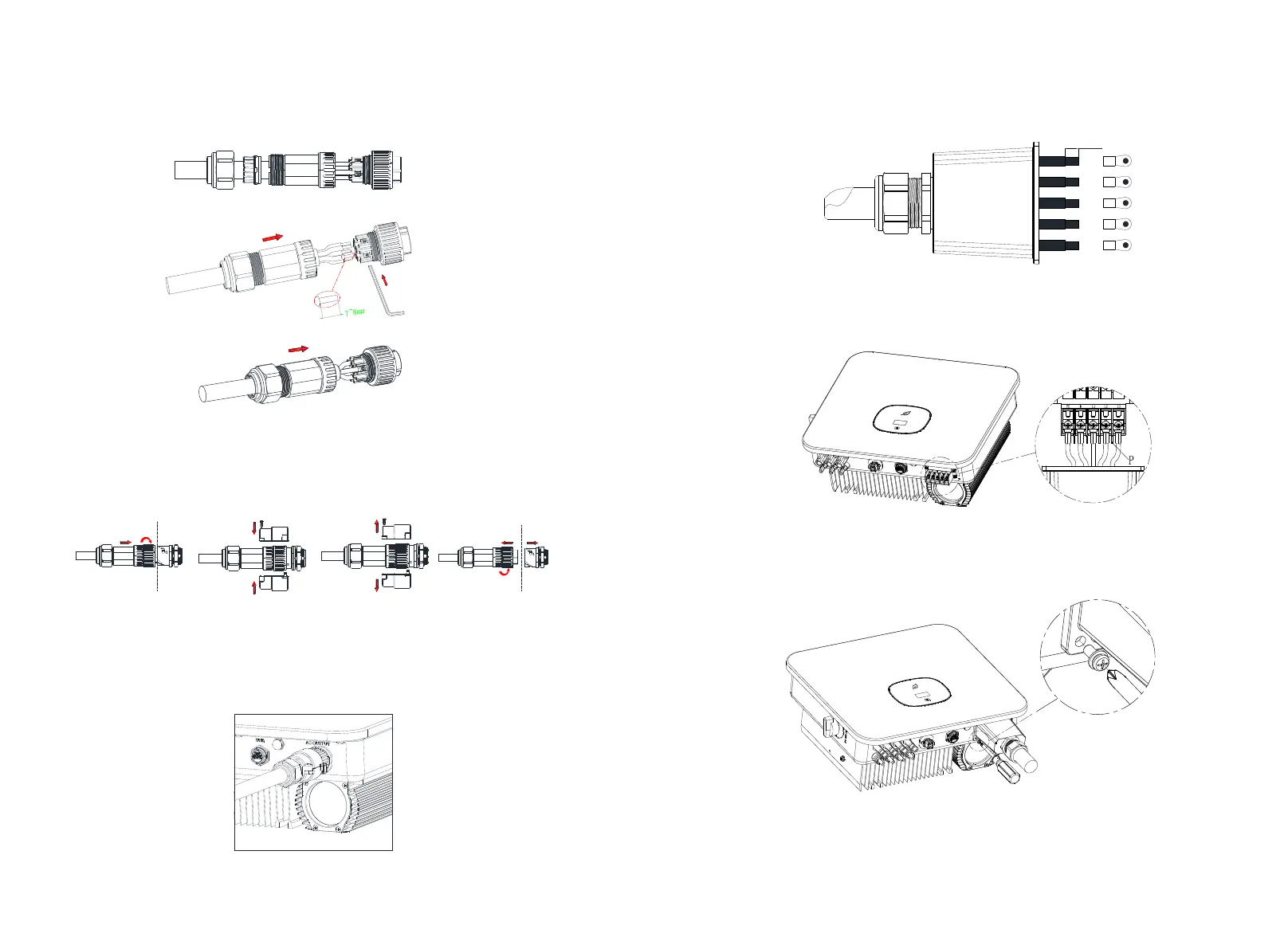

AC connection steps (For MOD 7-15K use only):
1.Pass the 5 wires (A,B,C,N and PE wires) through the AC shield,crimp the O/U terminal
and connect to the screw terminals on the AC connector.
a
b
c
2. Lock the AC cable to the corresponding AC terminal.
Fig 6.5 AC output wiring diagram
3.Lock the protective cover on the inverter frame, and finally tighten the protective cover
hole.
Fig 6.6 Wiring diagram of AC terminal
Fig 6.7 AC quick connection diagram
AC connection steps(just for Vietnam models):
1.Pass the 5 wires (A,B,C,N and PE wires) through the AC shield,connect them to the
power grid, and then crimp the O/U terminal.
2. Lock the AC cable to the corresponding AC terminal.
3.Lock the protective cover on the inverter frame, and finally tighten the protective cover
hole.
Fig 6.8
Fig 6.9
Fig 6.10
10-12mm
19
20
Th eInve rterSi de
Th eInver terSid e

Growatt MOD 10KTL3-X Specifications

General

Max. DC Voltage	1100 V
Nominal AC Power Output	10000 W
Max. AC Apparent Power	11000 VA
Number of MPP Trackers	2
Max. Input Current per MPP Tracker	16 A
Operating Temperature Range	-25°C to +60°C
IP Rating	IP65
Max. DC Power	13000 W
Start Voltage	180 V
Nominal DC Voltage	600 V
Number of DC Inputs per MPPT	2
Max. AC Current	16 A
Nominal Grid Frequency	50/60 Hz
THDI	<3%
DC Switch	Yes
Protection Class	Class I
Topology	Transformerless
Efficiency	98.3%
Noise Level	<30 dB
Cooling Method	Natural Convection
MPPT Voltage Range	160 V to 1000 V
Nominal AC Voltage	230/400 V
Power Factor	0.8 leading ... 0.8 lagging
Communication	RS485 / WiFi / Ethernet
AC Voltage Range	310 V - 480 V
