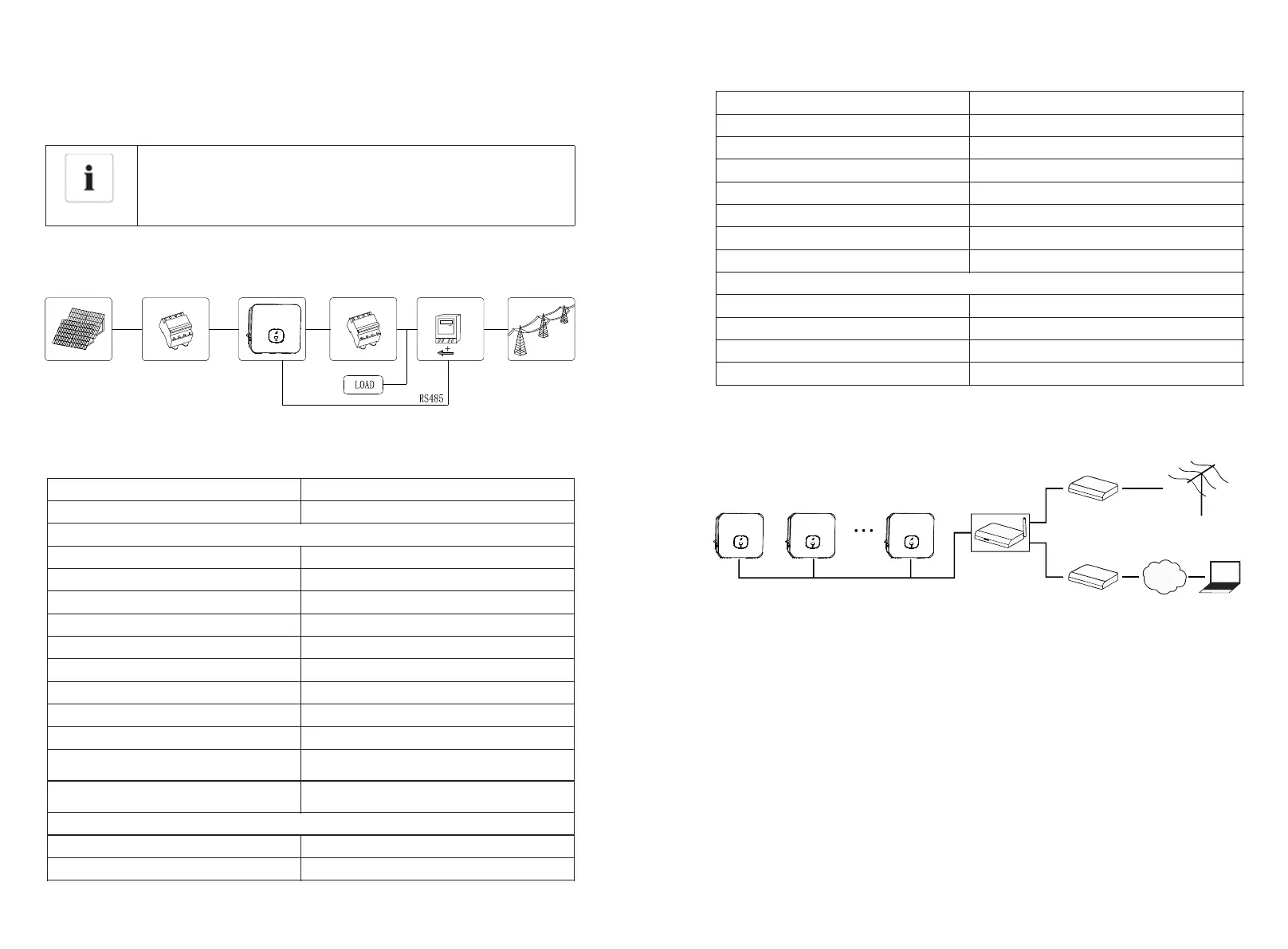

Fig 6.21
6.6 Active power control with smart meter , CT or ripple control
signal receiver
Information
The position of export limitation CT or Meter must between the
Inverter & Load and gird.
Multiple inverter combination is not suitable in Australia.
This series inverter has integrated export limitation functionality. To use this function,
you can connect the Growatt smart meter. For the detailed information, please contact
with Growatt.
27
28
Impulse voltage withstand
LCD with white backlit
999999kWh
Storage and transportation temperature
Electromagnetic environment
72x66x100 (WxHxD) DIN 43880
self-extinguishing UL94V-0
Fig 6.22
Active power control with a Radio Ripple Control Receiver(RRCR).
Monitor
Radio ripple
control receiver
Public Grid
Router
Internet
PC
6.7 GFCI(Standard)
6.7.1 Ground Fault Circuit Interrupt(GFCI)
This inverter includes an integrated residual current device .If the leakage current is
over 300mA and last for more than 300ms,the inverter will report 201 fault and the
OLED will display Residual I High.
The inverter has the function of detecting residual current and protecting the inverter
against residual current. If your inverter must equip a AC breaker which has the function
of detecting residual current ,you must choose a Type A RCD breaker with the rating
residual current more than 300mA.
