23
24
Fig 6.12
Fig 6.13
Fig 6.14
Fig 6.15
Fig 6.16
Fig 6.17

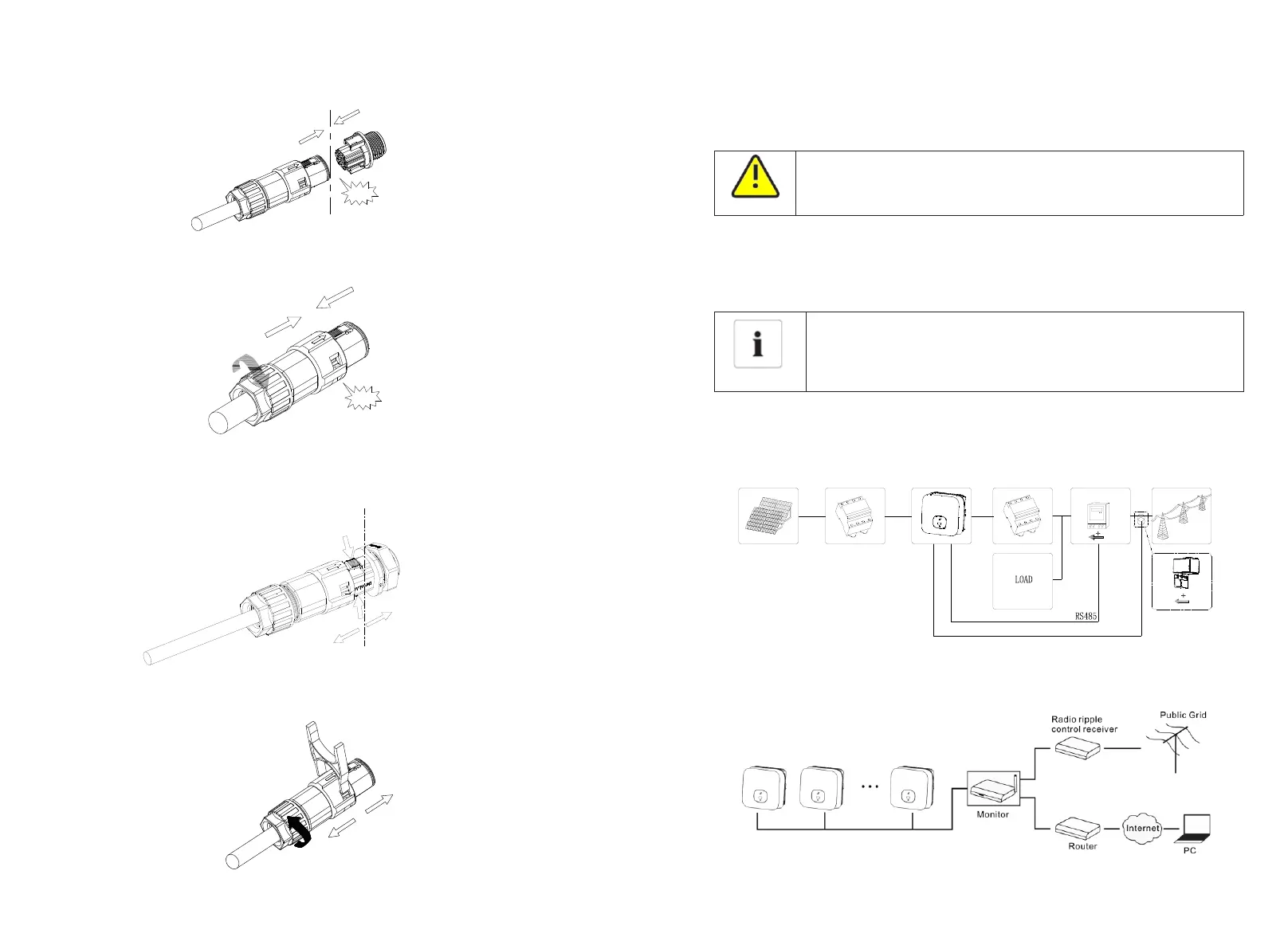

2. Push the threaded sleeve into the socket and tighten the waterproof gland.
3.Connect the client to the inverter plug until both are tightly locked on the inverter.
Remove the signal connector
1.Press down the fastener and pull it out of the inverter.
the inverter side
2. Insert the H-shaped tool and pull it out of the socket.
Click!
Click!
Inverter side
6.5 Grounding the inverter
The inverter must be connected to the AC grounding conductor of the power distribution
grid via the ground terminal (PE) .
WARNING
Because of the transformerless design, the DC positive pole and DC
negative pole of PV arrays are not permitted to be grounded.
6.6 Active power control with smart meter , CT or ripple control
signal receiver
Information
The position of export limitation CT or Meter must between the
Inverter & Load and gird.
This series inverter has integrated export limitation functionality. To use this function,
you can connect smart meter or CT. The smart meter model is Eastron SDM230-Modbus.
The CT Model is TOP 90-S10/SP4(LEM).The primary aperture is 10mm,output cable
length is 5m . The arrow on the CT must pointing towards the inverter.
Active power control with a Radio Ripple Control Receiver(RRCR).
