GRS GraverMax G8 - INTRODUCTION AND UNPACKING

5
INTRODUCTION
The GraverMax™ G8 is an engraving system engineered and manufactured under the
GRS Tools line of products by Glendo Corporation in the United States of America. This
system is designed for assistance in creating unique works in metal, stone, wood, ivory,
and many other materials.
UNPACKING THE UNIT
IMPORTANT SHIPPING NOTE

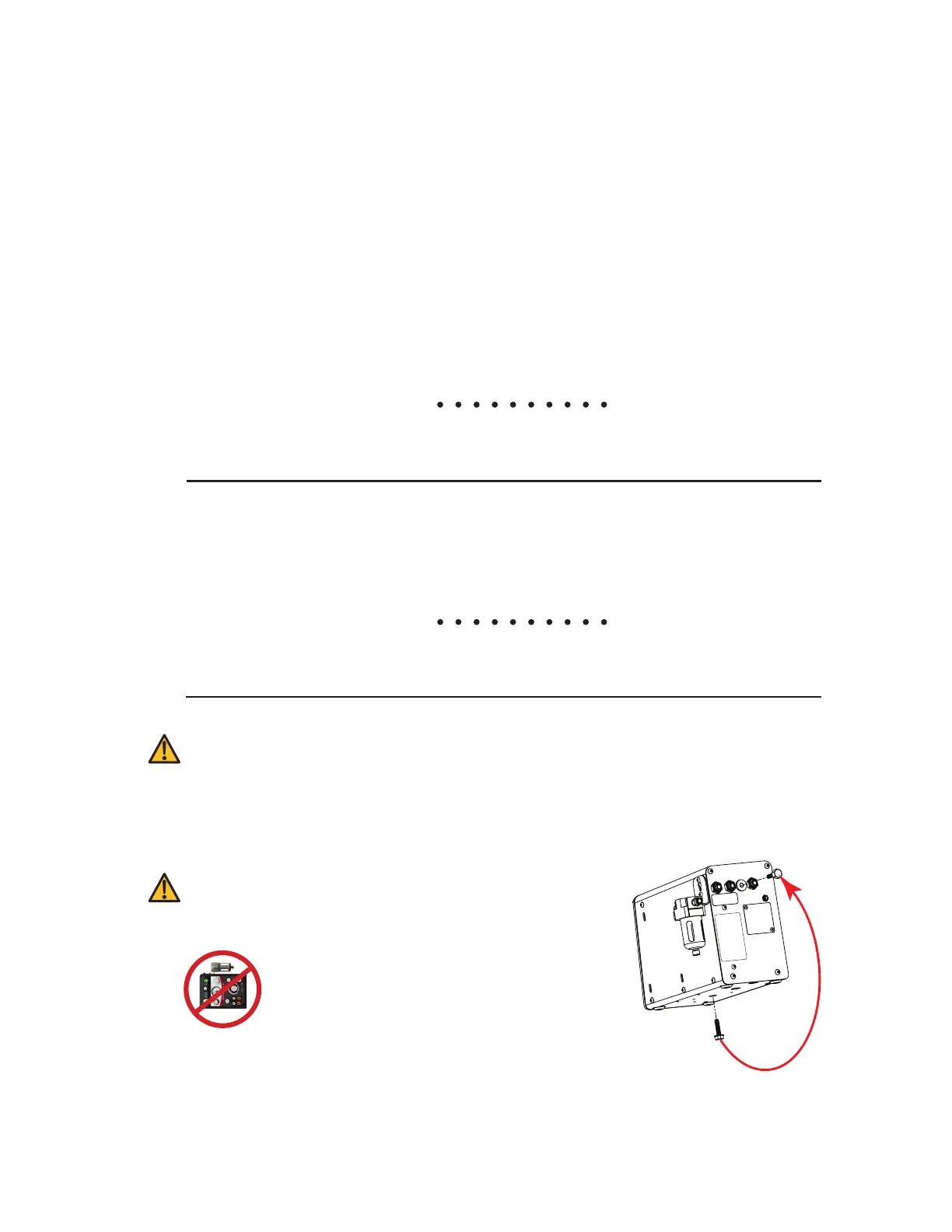

When unpacking a new GraverMax™ G8, notice the screw protruding from the
bottom of the machine (FIG. 1.S). This screw is holding the motor mount assembly to
WYV[LJ[P[MYVTKHTHNLK\YPUNZOPWWPUN9LTV]LZJYL^ILMVYLVWLYH[PVU<ZLH
^YLUJOZVJRL[VYHUHKQ\Z[HISLLUK^YLUJO[VYLTV]LZJYL^HUK^HZOLY[OLUZ[VYL
both by inserting into the rubber grommet located on the back (FIG. 1.P), as shown in
the illustration.
For any shipping or transport of this unit, the screw and
washer MUST BE REPLACED at the bottom of the unit
to prevent damage to the motor mount assembly while in
transit.
NEVER OPERATE WHILE ON SIDE. Always
use the system in a vertical position (FIG. 1).
GraverMax
™
G8 ฀฀
A. Primary air pressure gauge
B. Bias control knob
C. Primary air pressure control knob
+ 7V^LYVUVMMI\[[VU
E. Handpiece selector knob (for H)
F. Strokes Per Minute (SPM) dial
. (\_PSPHY`HPYVWLUJSVZLRUVI
H. Standard Handpiece push-to-connect fittings
I. Auxiliary Handpiece push-to-connect fitting
J. Air supply input push-to-connect fitting
K. Air filter
L. Air filter bowl drain knob
M. Air filter output push-to-connect fitting
N. Air filter input push-to-connect fitting
O. Foot Throttle push-to-connect fitting
P. Rubber grommet for stabilizer screw and
washer storage—See
UNPACKING THE UNIT
Q. 24-volt power receptacle
R. Reservoir drain plug
(drain located in bottom of base)
S. Motor mount assembly stabilizer screw
