GRS GraverMax G8 - Page 8

6
A
B
C.1
D
฀฀฀฀
E
F
C.2

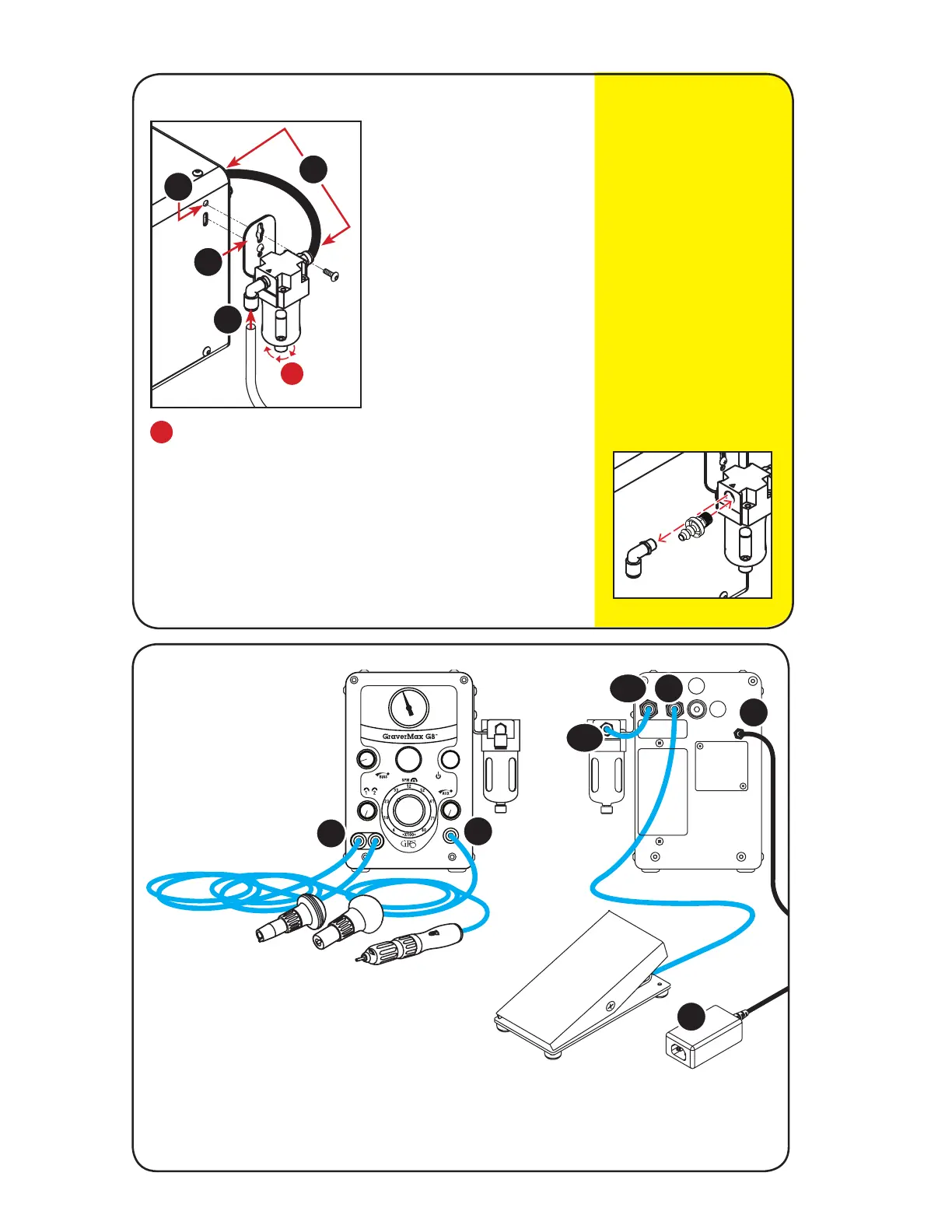

1. Remove top screw from hole.
2. Place screw through top hole
on air filter bracket. Tighten
screw. Lower screw keeps
filter from swinging freely; do
not tighten or remove.
3. Power off system and air
supply. Connect supplied
short black hose (#044-229)
to straight fitting on filter.
Connect other end to “Air
Input” fitting.
To mount elsewhere, use
supplied longer black hose
(#044-069) — see page 18.
4. Connect hose from air supply
to filter fitting marked “N
×
”.
฀฀฀฀฀฀฀
1
3
4
Air Filter
Knob
Drain water from filter
daily. Turn knob clockwise
(from top view) to open.
Drain. Turn knob counter-
clockwise to close valve.
A
A
Turn Clockwise
2
NOTE: If air supply
hose is larger than
TT6+
either replace the
push-to-connect
Ä[[PUN^P[O[OL
included barbed
Ä[[PUNHUKH[[HJO[OL
air supply hose or
purchase a reducer
to decrease the OD
[VTT
A. Standard Handpiece fittings
B. Auxiliary Handpiece fitting
C. Air filter fittings
D. Foot Throttle fitting
E. 24-V power converter receptacle
F. 24-V power converter (#022-987)
