3.1 Changing the pump head position
Make any change to the pump head orientation
before filling the system with liquid. You can turn
the pump head in steps of 90 °.
For permissible positions, see fig. 1.
Proceed as follows:
1. If liquid is present, drain the liquid from the
pump or isolate the liquid from the pump.
2. Remove the four socket head cap screws.
3. Turn the pump head to the desired position.
4. Cross-tighten the screws.

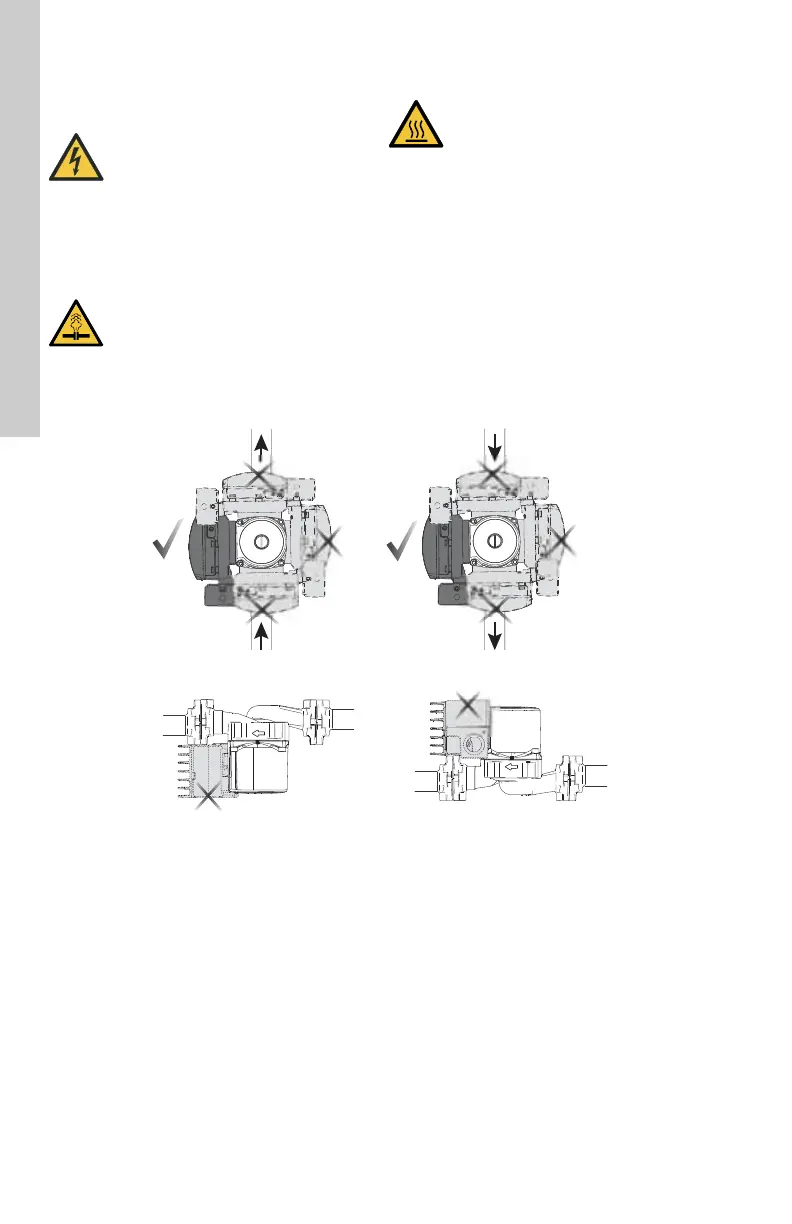

Fig. 1 Control box positions
DANGER
Electric shock
Death or serious personal injury
- Switch off the power supply before
starting any work on the product.
Make sure that the power supply
cannot be accidentally switched on.
WARNING
Pressurized system
Death or serious personal injury
- Before dismantling the pump, drain
the system or close the isolating
valve on either side of the pump
before you remove the screws. The
pumped liquid may be scalding hot
and under high pressure.
CAUTION
Hot surface
Minor or moderate personal injury
- Position the pump so that persons
cannot accidentally come into
contact with hot surfaces.
TM07 0265 4617
