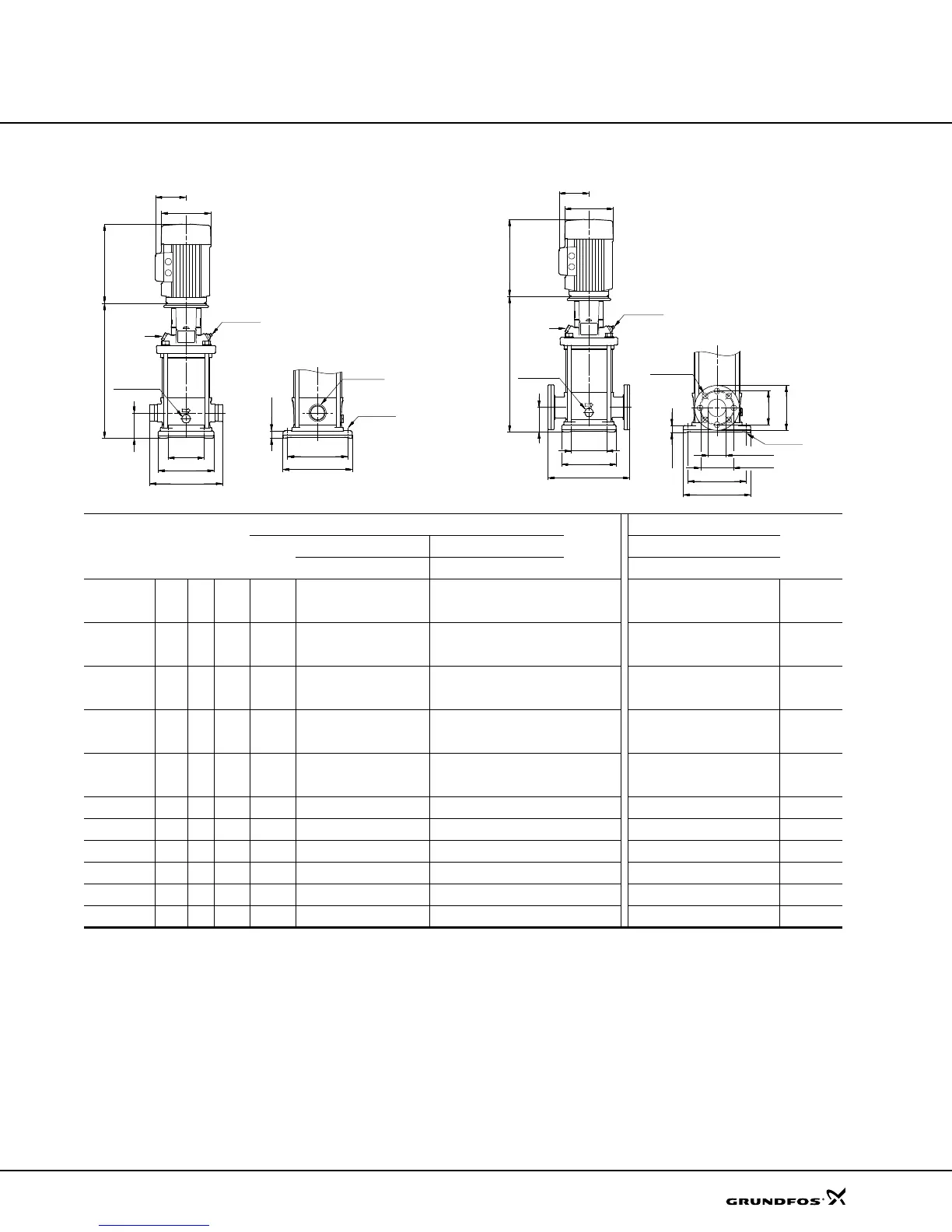

Technical data
49
All dimensions in inches unless otherwise noted.
*PJE flanged pump B1 and B1+B2 dimension is equal to ANSI flanged pump and weight is approximately 9 lbs. less.
• Available.
TM03 1457 2205
B2
D2
D1
10 1/4"
8 1/2"
9 3/4"
4 x ø9/16"
5 1/8"
7 7/8"
1 1/16"
3 1/2"
B1
G 1/2 PLUG
WITH 1/4"TAP
FOR GAUGE/
SENSOR
PRIMING
PORT (G 1/2)
DISCHARGE
SUCTION AND
2" Victaulic-type
PLUG (G 1/2)
DRAIN
TM03 1459 2205
3/4 x 7/8"
ø5"
11 7/8"
ø6 1/2"
ø4 3/4"
ø2 9/16"
1 1/16"
7 7/8"
5 1/8"
9 3/4"
8 1/2"
4 x ø9/16"
3 1/2"
B1
G 1/2 PLUG
WITH 1/4"TAP
FOR GAUGE/
SENSOR
PRIMING
PORT (G 1/2)
PLUG (G 1/2)
DRAIN
B2
D2
D1
2" ANSI 300 lb. R.F.
Pump
type
P2
[hp]
Ph. PJE*
ANSI dimensions [inch]
Ship Wt.
[lbs.]
ANSI dimensions [inch]
Ship Wt.
[lbs.]
B1
TEFC ODP MLE
D1 D2 B1+B2 D1 D2 B1+B2 D1 D2 B1+B2
CRN(E) 15-1 2
1
•
16.38 7.19 5.73 28.94 - - - 130 - - - -
3
•
16.38 7.01 4.33 27.60 - - - 121 7.01 6.57 29.18 135
CRN(E) 15-2 5
1
•
17.44 10.62 7.46 32.96 - - - 203 - - - -
3
•
17.13 8.66 5.28 32.64 - - - 195 8.66 7.40 29.93 185
CRN(E) 15-3 7 1/2
1
•
19.21 10.22 7.62 34.74 - - - 216 - - - -
3
•
19.21 8.66 5.28 34.72 - - - 205 8.66 7.40 19.21 200
CRN(E) 15-4 7 1/2
1
•
20.98 10.22 7.62 36.51 - - - 218 - - - -
3
•
20.98 8.66 5.28 36.49 - - - 207 8.66 7.40 34.29 221
CRN(E) 15-5 10
1
•
22.76 10.23 10.30 38.83 - - - 335 - - - -
3
•
22.76 8.66 5.28 38.27 - - - 214 10.24 8.39 22.76 232
CRN(E) 15-6
15 3
•
27.05 10.22 8.67 43.63 10.62 7.33 43.36 365 13.39 12.13 45.83 477
CRN 15-7 15 3
•
28.82 10.22 8.67 45.40 10.62 7.33 45.13 398 - - - -
CRN(E) 15-8 15 3
•
30.59 10.22 8.67 47.17 10.62 7.33 46.90 431 13.39 12.13 49.37 495
CRN 15-9 20 3
•
32.36 10.22 8.67 48.94 11.50 8.92 52.05 439 - - - -
CRN(E) 15-10 20 3
•
34.13 10.22 8.67 50.71 11.50 8.92 53.82 442 13.39 12.13 52.91 510
CRN(E) 15-12 25 3
•
37.05 12.94 11.52 56.87 11.50 8.94 57.86 496 13.39 12.13 59.77 543
CRN(E) 15
