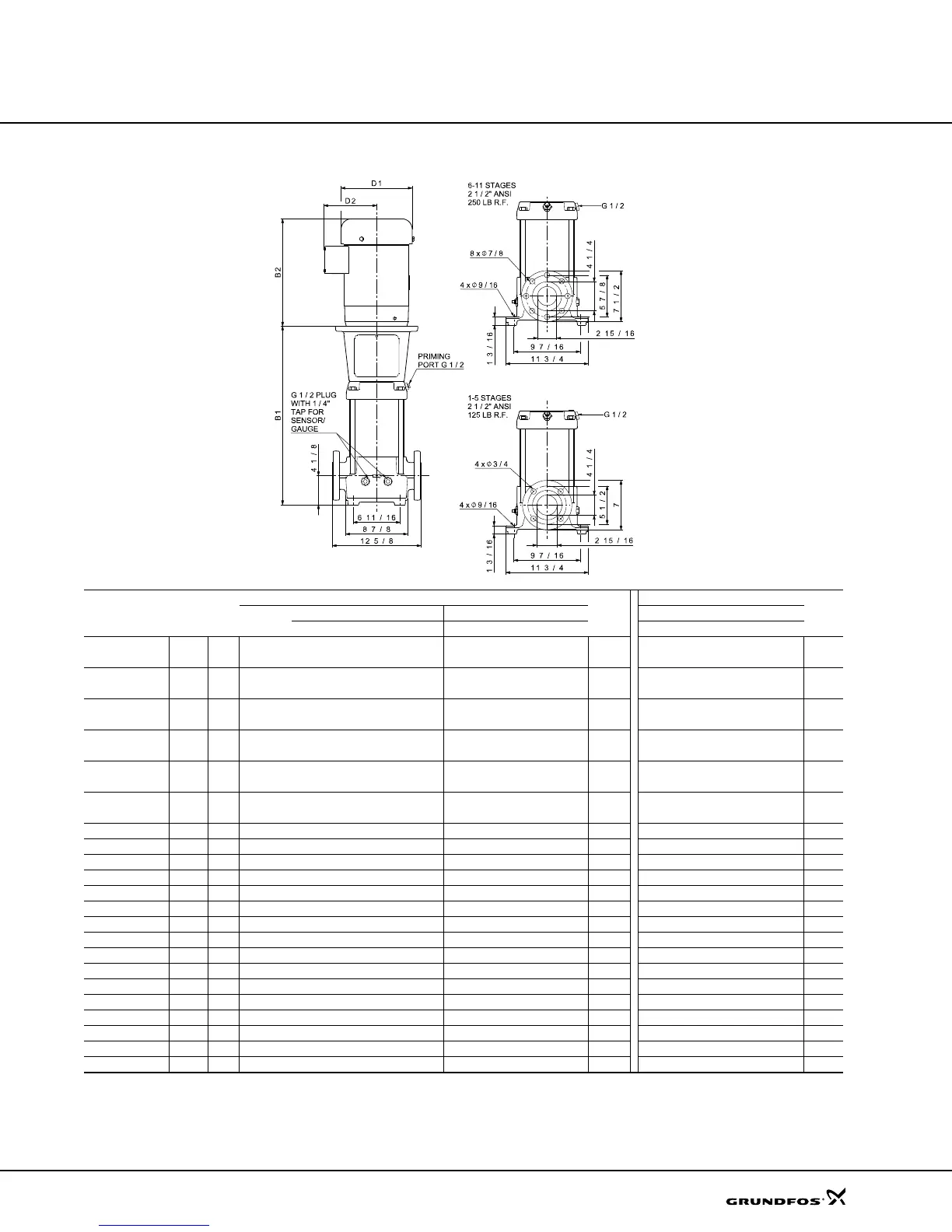

Technical data
55
1)
Weights are based on pump with TEFC motor (see price list for individual weights).
All dimensions in inches unless otherwise noted.
TM02 7699 1009
Pump type
P2
[hp]
Ph.
ANSI dimensions [inch]
Ship
Wt.
[lbs.]
ANSI dimensions [inch]
Ship
Wt.
[lbs.]
B1
TEFC ODP MLE
D1 D2 B1+B2 D1 D2 B1+B2 D1 D2 B1+B2
CR 32-1-1 5
1 20.08 10.62 7.46 35.60 - - - 240 - - - -
3 19.88 8.66 5.28 35.39 - - - 218 - - - -
CR(E) 32-1 5
1 20.08 10.62 7.46 35.60 - - - 228 - - - -
3 19.88 8.66 5.28 35.39 - - - 218 8.66 7.40 35.39 210
CR 32-2-2 7 1/2
1 22.83 10.22 7.62 38.36 - - - 245 - - - -
3 22.64 8.66 5.28 38.15 - - - 229 - - - -
CR(E) 32-2-1 7 1/2
1 22.83 10.22 7.62 38.36 - - - 245 - - - -
3 22.64 8.66 5.28 38.15 - - - 229 8.66 7.40 38.15 242
CR 32-2 10
1 22.83 10.23 10.30 38.90 - - - 300 - - - -
3 22.64 8.66 5.28 38.15 - - - 229 - - - -
CR(E) 32-3-2 10
1 25.59 10.23 10.30 41.66 - - - 295 - - - -
3 25.39 8.66 5.28 40.90 - - - 236 10.24 8.39 40.31 256
CR 32-3 15 3 29.72 10.22 8.67 46.30 10.62 7.33 46.03 361 - - - -
CR(E) 32-4-2 15 3 32.48 10.22 8.67 49.06 10.62 7.33 48.79 368 13.39 12.13 51.26 541
CR 32-4 20 3 32.48 10.22 8.67 49.06 11.50 8.92 52.17 373 - - - -
CR(E) 32-5-2 20 3 35.24 10.22 8.67 51.82 11.50 8.92 54.93 380 13.39 12.13 54.02 552
CR(E) 32-5 20 3 35.24 10.22 8.67 51.82 11.50 8.92 54.93 380 13.39 12.13 54.02 552
CR 32-6-2 25 3 37.99 12.94 11.52 57.81 11.50 8.94 58.80 434 - - - -
CR(E) 32-6 25 3 37.99 12.94 11.52 57.81 11.50 8.94 58.80 434 13.39 12.13 60.71 624
CR 32-7-2 30 3 40.75 15.32 13.11 63.94 11.50 8.94 62.56 623 - - - -
CR(E) 32-7 30 3 40.75 15.32 13.11 63.94 11.50 8.94 62.56 602 13.39 12.13 63.47 657
CR(E) 32-8-2 30 3 43.5 15.32 13.11 66.69 11.50 8.94 65.31 615 13.39 12.13 66.22 670
CR 32-8 40 3 43.5 15.32 13.11 66.69 13.25 12.21 66.75 631 - - - -
CR 32-9-2 40 3 46.26 15.32 13.11 69.45 13.25 12.21 69.51 637 - - - -
CR 32-9 40 3 46.26 15.32 13.11 69.45 13.25 12.21 69.51 637 - - - -
CR 32-10-2 40 3 49.02 15.32 13.11 72.21 13.25 12.21 72.27 645 - - - -
CR 32-10 40 3 49.02 15.32 13.11 72.21 13.25 12.21 72.27 645 - - - -
CR 32-11-2 50 3 51.77 16.88 14.12 79.58 13.25 12.21 74.52 671 - - - -
CR(E) 32

Grundfos CRI Series Specifications

General

Protection Class	IP55
Insulation Class	F
Material	Stainless Steel
Applications	irrigation
Temperature range	+120 °C
Motor range	0.37 kW
Impeller Material	Stainless Steel
Connections	Flanged or threaded
Seal Type	Mechanical seal
