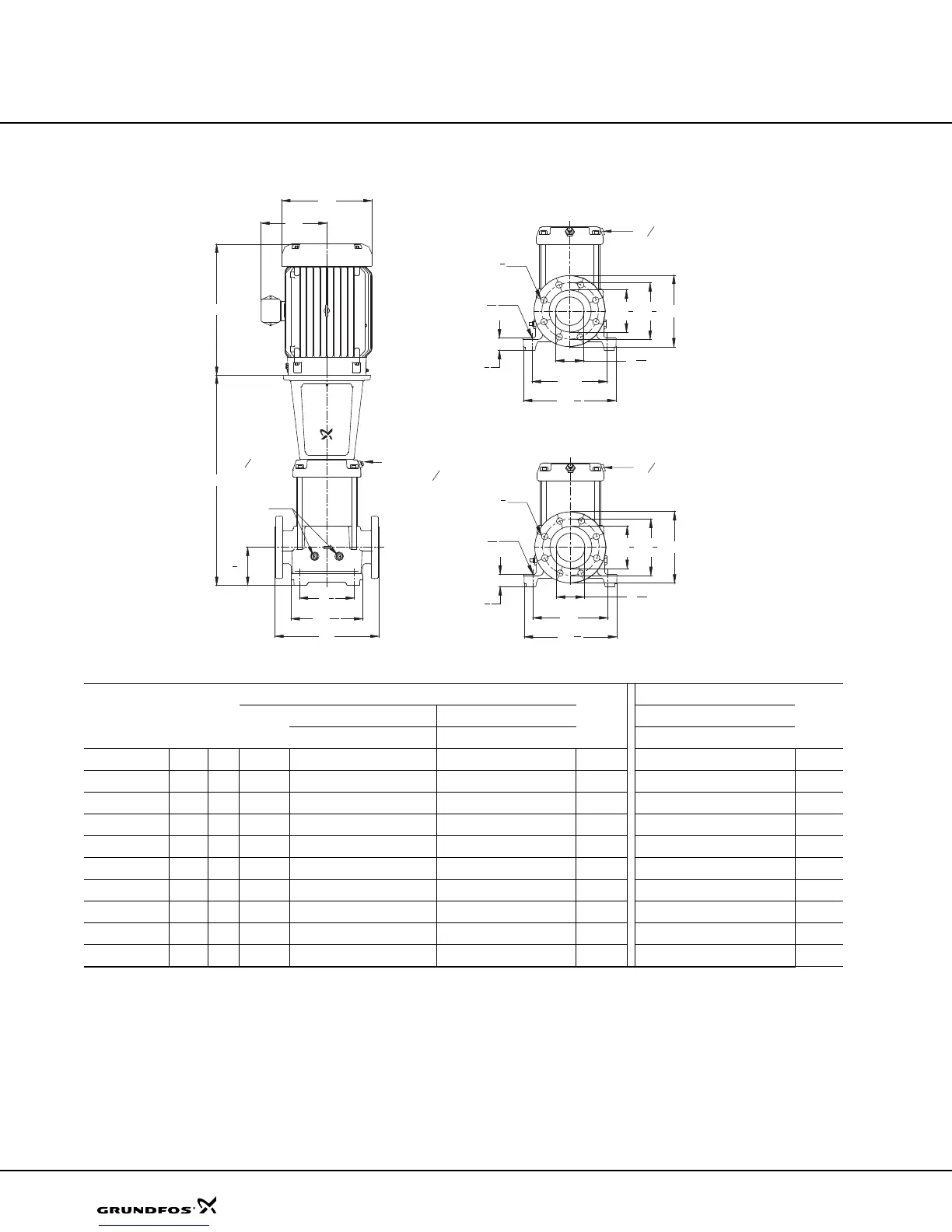

Technical data
64
1)
Weights are based on pump with TEFC motor (see price list for individual weights)
All dimensions in inches unless otherwise noted.
TM02 7702 3804
Pump type
P2
[hp]
Ph.
ANSI dimensions [inch]
Ship Wt.
[lbs.]
ANSI dimensions [inch]
Ship Wt.
[lbs.]
B1
TEFC ODP MLE
D1 D2 B1+B2 D1 D2 B1+B2 D1 D2 B1+B2
CR(E) 90-1-1 15 3 26.81 10.22 8.67 43.39 10.62 7.33 43.12 387 13.39 12.13 45.59 544
CR(E) 90-1 20 3 26.81 10.22 8.67 43.39 11.50 8.92 46.50 392 13.39 12.13 45.59 548
CR(E) 90-2-2 25 3 30.43 12.94 11.52 50.25 11.50 8.94 51.24 450 13.39 12.13 53.15 640
CR(E) 90-2-1 30 3 30.43 15.32 13.11 53.62 11.50 8.94 52.24 611 13.39 12.13 53.15 666
CR 90-2 40 3 30.43 15.32 13.11 53.62 13.25 12.21 53.68 625 - - - -
CR 90-3-2 40 3 34.06 15.32 13.11 57.25 13.25 12.21 57.31 636 - - - -
CR 90-3-1 50 3 34.06 16.88 14.12 61.87 13.25 12.21 56.81 667 - - - -
CR 90-3 50 3 34.06 16.88 14.12 61.87 13.25 12.21 56.81 667 - - - -
CR 90-4-2 60 3 37.68 19.00 14.90 68.47 15.12 13.19 63.81 869 - - - -
CR 90-4-1 60 3 37.68 19.00 14.90 68.47 15.12 13.19 63.81 869 - - - -
