Grundfos CRI Series User Manual

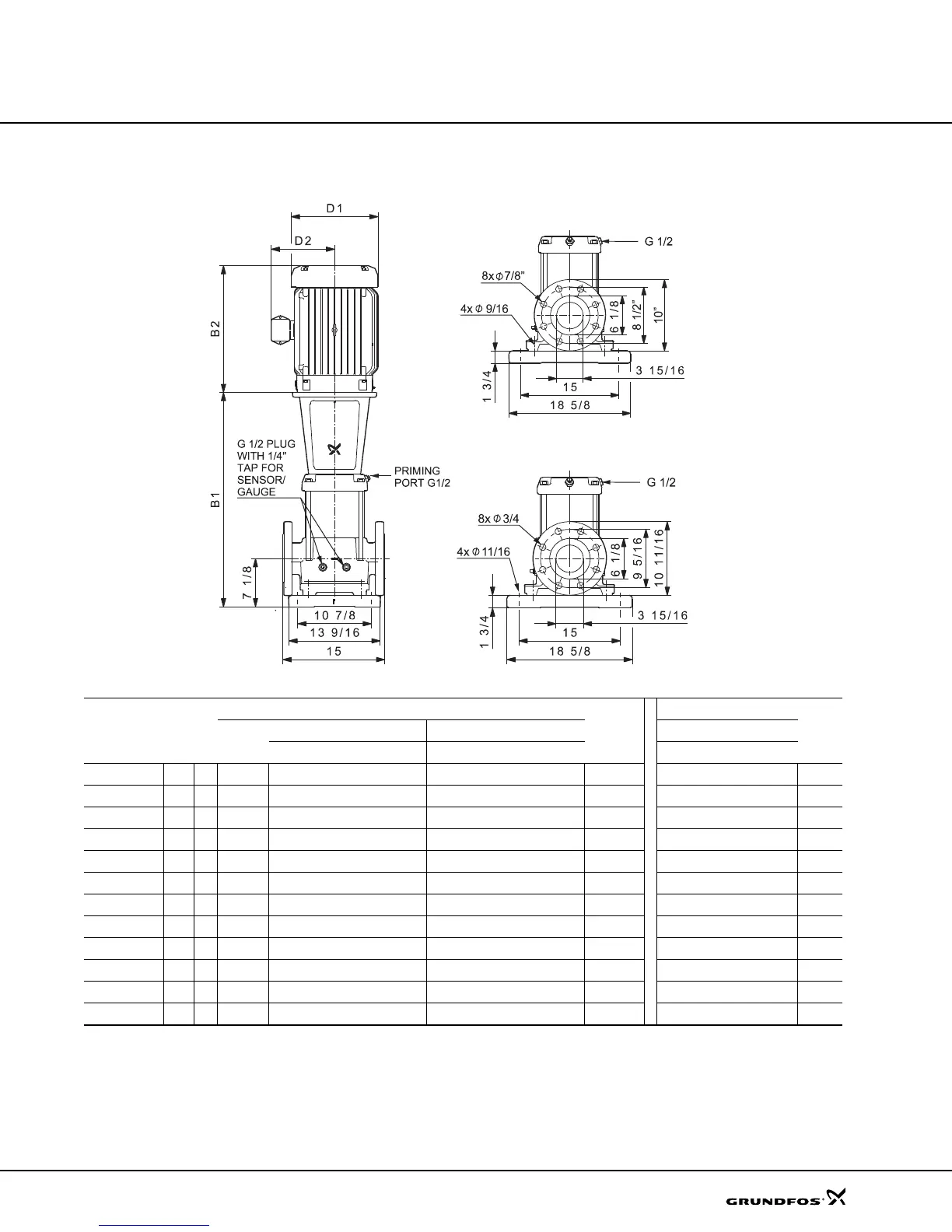

Technical data
67
1)
Weights are based on pump with TEFC motor (see price list for individual weights).
2)
CR 5" flange is not manufactured to ANSI specification. Gasket contact surface is approximately 0.25". CR 6" ANSI flange adapter is manufactured to
ANSI B16.5 specification.
All dimensions in inches unless otherwise noted.
TM04 9630 4810
Pump type
P2
[hp]
Ph.
Dimensions [inch]
Ship Wt.
[lbs.]
Dimensions [inch]
Ship Wt.
[lbs.]
B1
TEFC ODP MLE
D1 D2 B1+B2 D1 D2 B1+B2 D1 D2 B1+B2
CR(E) 120-1-1 20 3
32.83 10.22 8.67 49.41 11.50 8.92 52.52 427
13.39 12.13 51.61 534
CR(E) 120-1 25 3
32.83 12.94 11.52 52.65 11.50 8.94 53.64 507
13.39 12.13 55.55 561
CR 120-2-2 40 3
38.98 15.32 13.11 62.17 13.25 12.21 62.23 704
-- - -
CR 120-2-1 40 3
38.98 15.32 13.11 62.17 13.25 12.21 62.23 704
-- - -
CR 120-2 50 3
38.98 16.88 14.12 66.79 13.25 12.21 61.73 735
-- - -
CR 120-3-2 60 3
45.08 19.00 14.90 75.87 15.12 13.19 71.21 936
-- - -
CR 120-3-1 60 3
45.08 19.00 14.90 75.87 15.12 13.19 71.21 936
-- - -
CR 120-3 75 3
45.08 19.00 14.90 75.87 15.18 13.19 71.21 1045
-- - -
CR 120-4-2 75 3
51.69 19.00 14.90 82.48 15.18 13.19 77.82 1199
-- - -
CR 120-4-1 100 3
51.69 19.00 17.38 82.51 15.12 13.19 79.07 1468
-- - -
CR 120-4 100 3
51.69 19.00 17.38 82.51 15.12 13.19 79.07 1468
-- - -
CR 120-5-2 100 3
57.80 19.00 17.38 88.62 15.12 13.19 85.18 1490
-- - -
4-1 to 5-1 STAGES
5" FLANGE
2)
250 LB R.F.
1-1 to 4-2 STAGES
5" FLANGE
2)
125 LB R.F.
CR 120

Grundfos CRI Series Specifications

General

Protection Class	IP55
Insulation Class	F
Material	Stainless Steel
Applications	irrigation
Temperature range	+120 °C
Motor range	0.37 kW
Impeller Material	Stainless Steel
Connections	Flanged or threaded
Seal Type	Mechanical seal
