Grundfos CUE Series Service Instructions

English (GB)
26
5. Upgrading the firmware
The firmware package is downloaded from Grundfos Technical
Information found on Insite under "Toolbox".
1. Go to Grundfos Insite and select "Toolbox".
2. Select "GTI - Grundfos Technical information".
3. Select "Service Support Tools".
4. Select the CUE firmware.
5. Copy the files to a USB stick.
6. Additional information

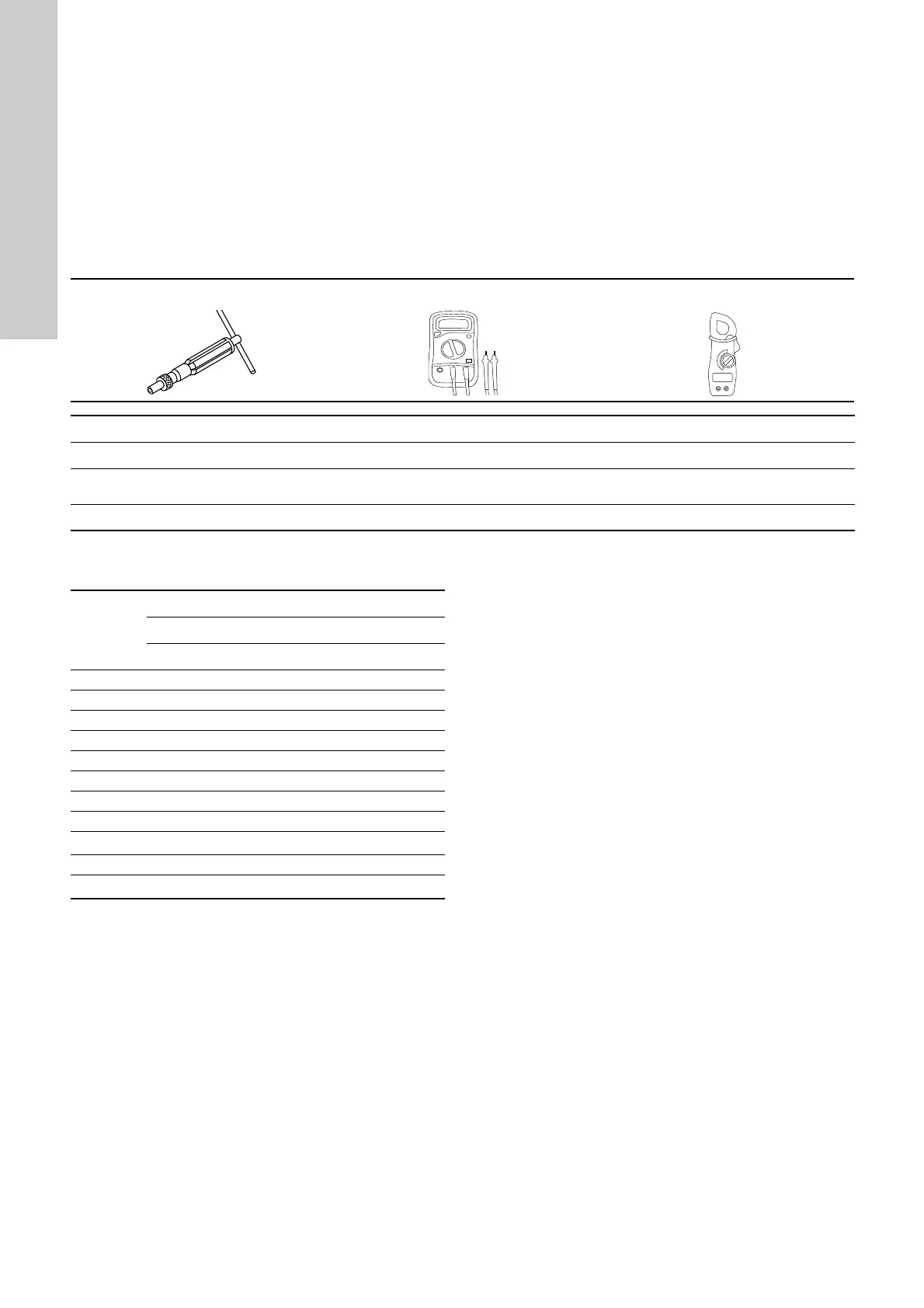

6.1 Special service tools
6.2 Tightening torques
Tightening torques for terminals
1)
Conductor cross-section ≤ 95 mm
2
.
2)
Conductor cross-section ≥ 95 mm
2
.
ABC
Pos. Description Further information Part number
A Torque screwdriver 0.5 - 4.0 Nm SV0435
B
Digital multimeter, type RMS, CAT III / 1000 V, (KAT III/1200 V for 400/690 V), with
diode testing function
C Clip-on amperemeter
Enclosure
Tightening torque [Nm]
Mains Motor Earth Relay
91, 92, 93 96, 97, 98 95, 99 01-06
A2 1.8 1.8 3 0.6
A3 1.8 1.8 3 0.6
A5 1.8 1.8 3 0.6
B1 1.8 1.8 3 0.6
B2 4.5 4.5 3 0.6
B3 1.8 1.8 3 0.6
B4 4.5 4.5 3 0.6
C1 10 10 3 0.6
C2
14
1)
/ 24
2)
14
1)
/ 24
2)
30.6
C3 10 10 3 0.6
C4
14
1)
/ 24
2)
14
1)
/ 24
2)
30.6
