Grundfos GI SPC Series User Manual

18
English (GB)
P04.03
V/F frequency
point 1

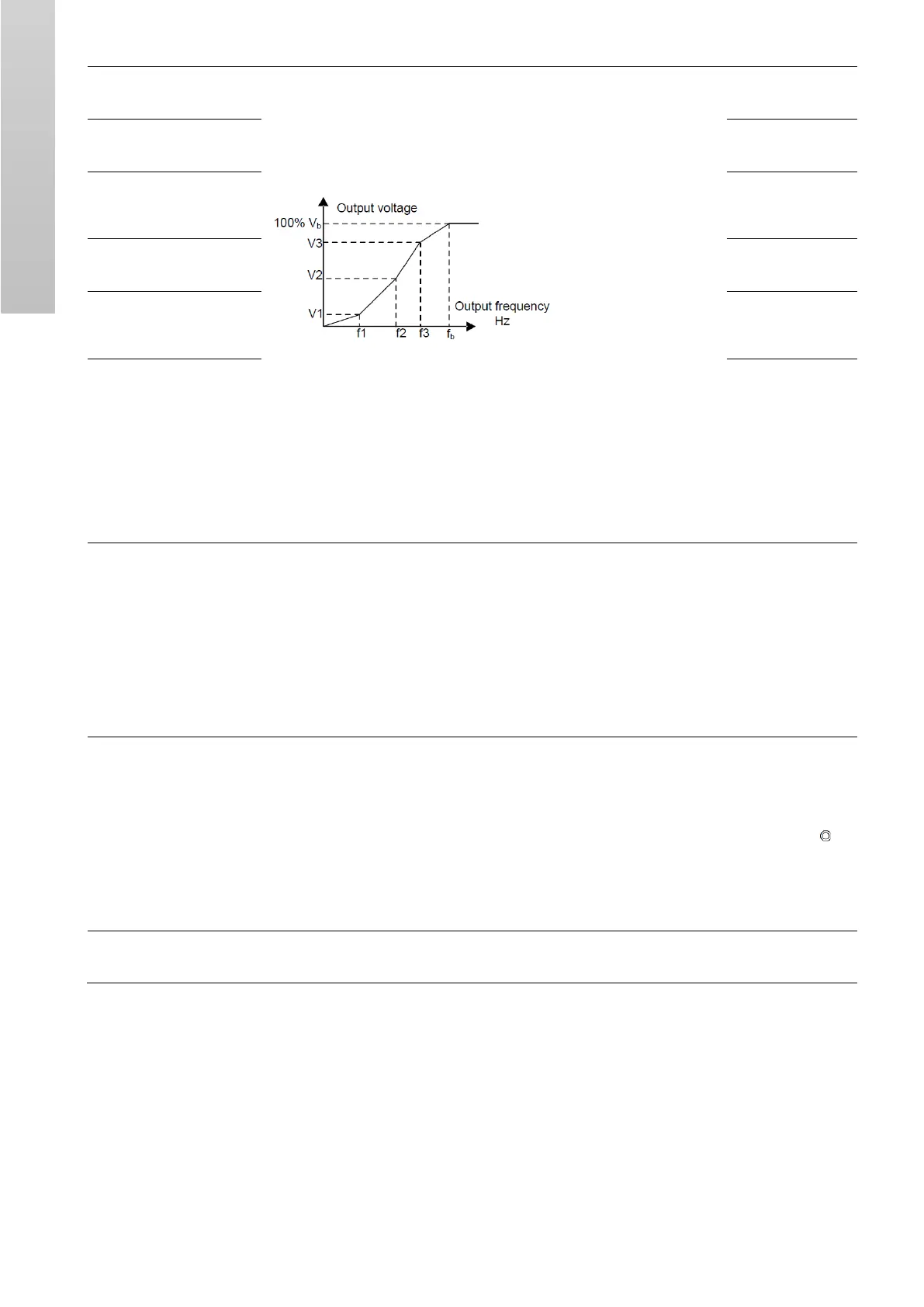

If P04.00 =1, the user can set V//F curve by P04.03–P04.08 V/F is set to the motor
load.
Note: V1＜V2＜V3, f1＜f2＜f3. If the low-frequency voltage is high,
overtemperature and burning may occur and the overcurrent stall and protection
may occur to the solar pump controller.
Setting range of P04.03: 0.00Hz–P04.05
Setting range of P04.04: 0.0%–110.0% (rated voltage of motor1)
Setting range of P04.05: P04.03–P04.07
Setting range of P04.06: 0.0%–110.0% (rated voltage of motor1)
Setting range of P04.07: P04.05–P02.02(rated frequency of motor1) or P04.05–
P02.16(rated frequency of motor1)
Setting range of P04.08: 0.0%–110.0% (rated voltage of motor1)
0.00Hz
○
P04.04
V/F voltage
point 1
00.0%
○
P04.05
V/F
frequency
point 2
00.00Hz
○
P04.06
V/F voltage
point 2
00.0%
○
P04.07
V/F
frequency
point 3
00.00Hz
○
P04.08
V/F voltage
point 3
00.0%
○
P04.09
V/F slip
compensation
gain
This function code is used to compensate the change of the rotation speed caused
by load during compensation SVPWM control to improve the rigidity of the motor.
It can be set to the rated slip frequency of the motor which is counted as below:
△ f=fb-n*p/60 Of which, fb is the rated frequency of the motor, its function code is
P02.02; n is the rated rotating speed of the motor and its function code is P02.03; p
is the pole pair of the motor. 100.0% corresponds to the rated slip frequency △f.
Setting range: 0.0–200.0%
0.0%
○
P04.34
2PH control of
1PH motor
Ones: 2PH control mode
0: Disabled
1: Enabled
Tens: Voltage of the secondary winding (V phase) reverse
0: Not reversed
1: Reversed
The setting range: 0–0x11
0x00
P04.35
Voltage ratio
of V and U
0.00–2.00
1.00
○
