Grundfos IO 100 User Manual

36
Product numbers
SQFlex

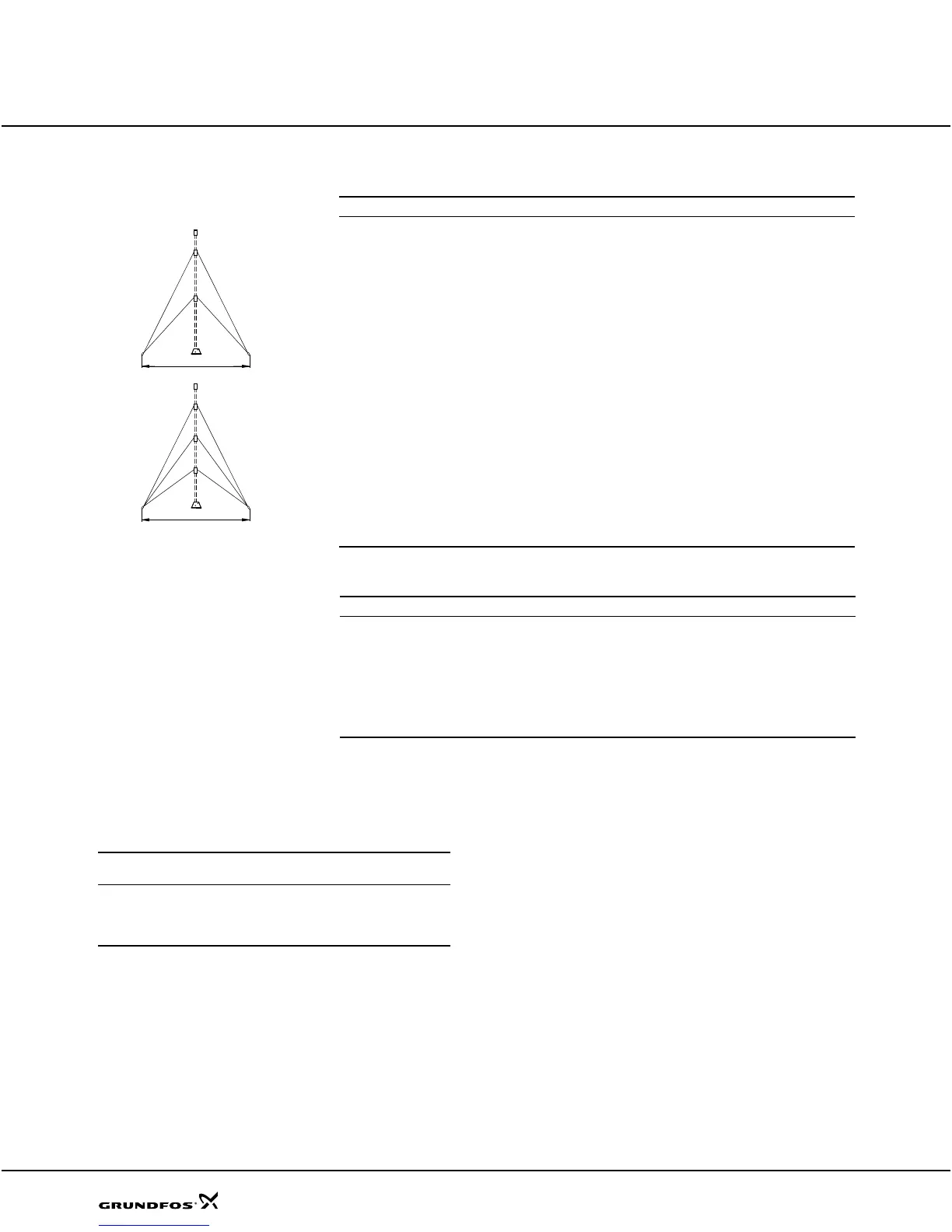

Tower kit for H80 Whisper
Tower installation kit
Tower pipe selection
The tower kit is designed to use 2 ½” pipes .
The following table shows the required thickness of the
pipe(s) depending on the maximum wind speed:
The wall thickness of the gin pole must be 0.060 in or
greater.
Pieces of pipe needed:
Tower kit, 30 ft
• 1 pipe of 13 ft for tower
• 1 pipe of 17 ft for tower
• 1 pipe of 15 ft for gin pole.
Tower kit, 50 ft
• 2 pipes of 15 ft for tower
• 1 pipe of 20 ft for tower
• 1 pipe of 19 ft for gin pole.
TM02 5582 3502
Description Height Product no.
Tower kit for H80 Whisper 30 ft 96475066
50 ft 96475067
Instructions are included.
Note: The pipes are not included
For tower pipe selection see below.
30 ft
50 ft
40 ft
50 ft
Description Product no.
Tower installation kit. 96475069
Note: The gin pole is not included
For tower pipe selection see below.
Max. wind speed
[mph]
Recommended wall thickness
[in]
75 0.090
90 0.120
110 0.140
