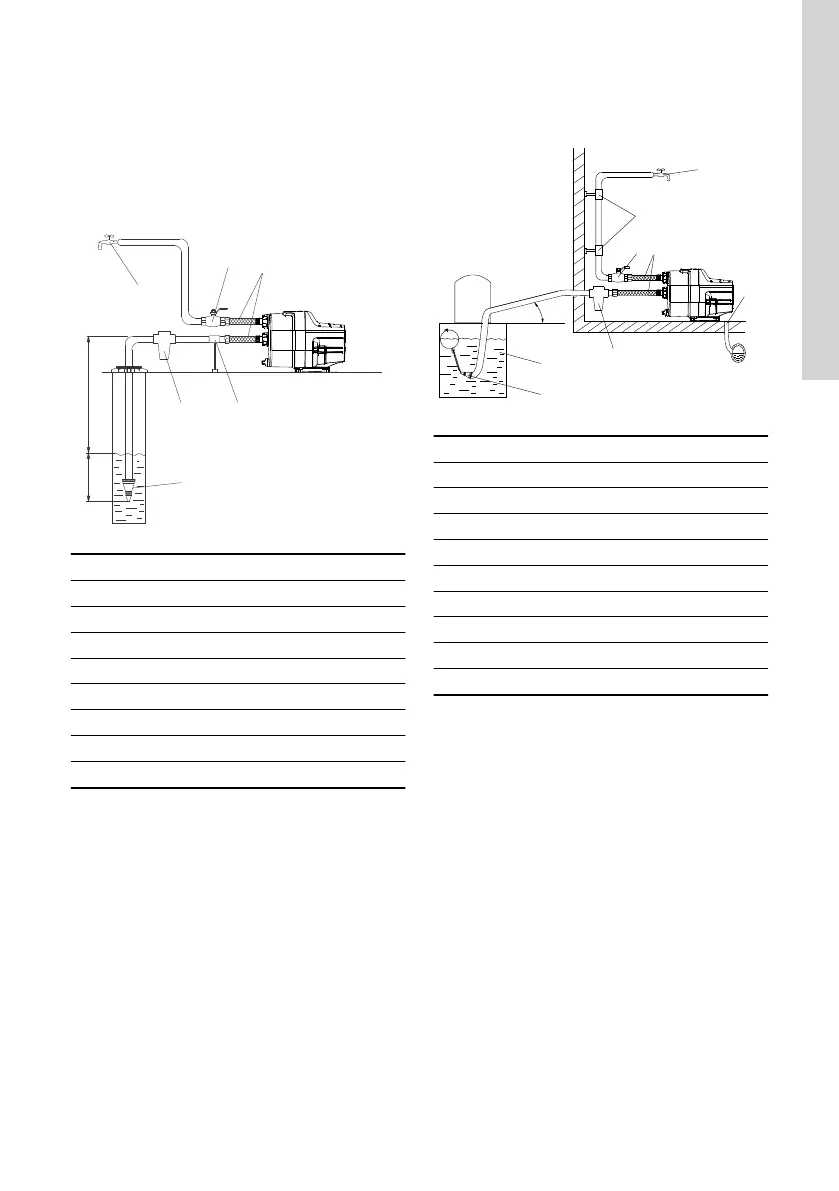

5.3 Installation examples

We recommend that you follow the installation

examples.

Valves are not supplied with the pump.

5.3.1 Suction from a well

TM075006

Pos. Description

1 Highest tapping point

2 Isolating valve

3 Flexible hoses

4 Pipe support

5 Inlet filter

6 Foot valve with strainer

H1 Maximum suction lift: 8 m

H2 Inlet pipe must be submerged at least 0.5 m

5.3.2 Suction from a tank

TM075007

Pos. Description

1 Highest tapping point

2 Pipe hangers

3 Isolating valve

4 Flexible hoses

5 Drain to sewer

6 Inlet filter

7 Freshwater tank

8 Foot valve with strainer

9 Minimum 1-degree inclination

English (GB)
