Grundfos SL Series Wiring Diagrams

EFFECTIVE DATE: March 27,2019File Name: Wiring Diagram-SL-SE.pdf Rev 3/27/2019
Wiring Diagrams for Medium (12-42 HP)
SL/SLV-SE/SEV pumps
60S/61R/61G - 3 phase, 208-230/460V, 60Hz-with Thermal switches / PTC sensors

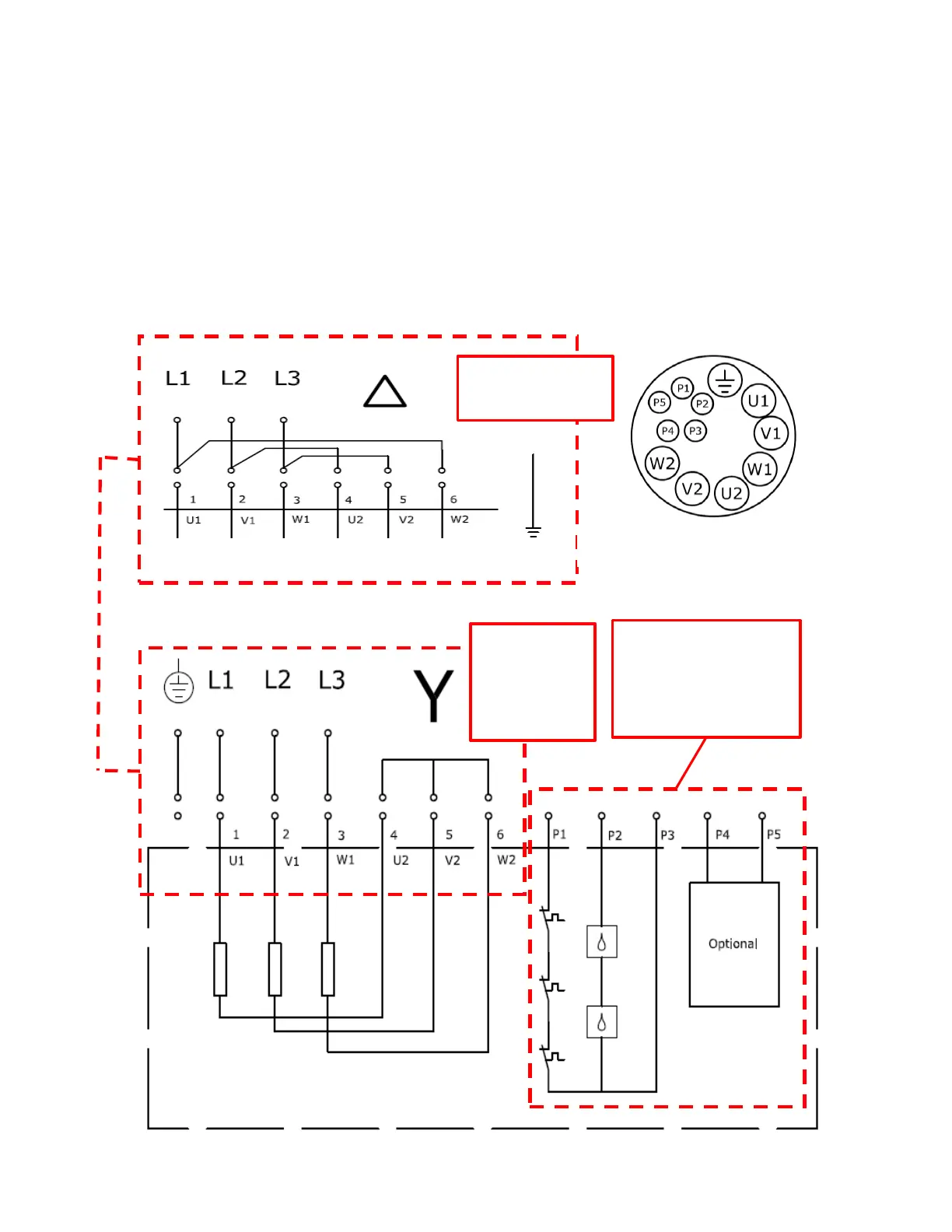

Fig. 10 Wiring Diagram for 60S/61R, 3 X 208/230V Delta Start.
Fig. 11 Wiring Diagram for 61R/61G, 3 X 460V Star Start.
Reference
Thermal switch
/PTC sensor
Wiring Diagrams
• Connect 208/230V pumps using the low-voltage (delta) connection.
• Connect 460V pumps using the high-voltage (star) connection.
Fig. 9 Wiring Diagram, 12 wire cable.
DOL Starting in
Case of 230V
DOL
Starting in
Case of
460V
