4.2 Type key
The type key is designed for the precise identification of the
product and not for configuration purposes. It can be found on the
product packaging.
4.3 Approvals
cULus approval
UPML and UPMXL pumps for the North American market are UL
approved (E96215 vol. 1 and MH26400). To identify which
models are approved, find a list with the codes in section
8.1 Approval codes.

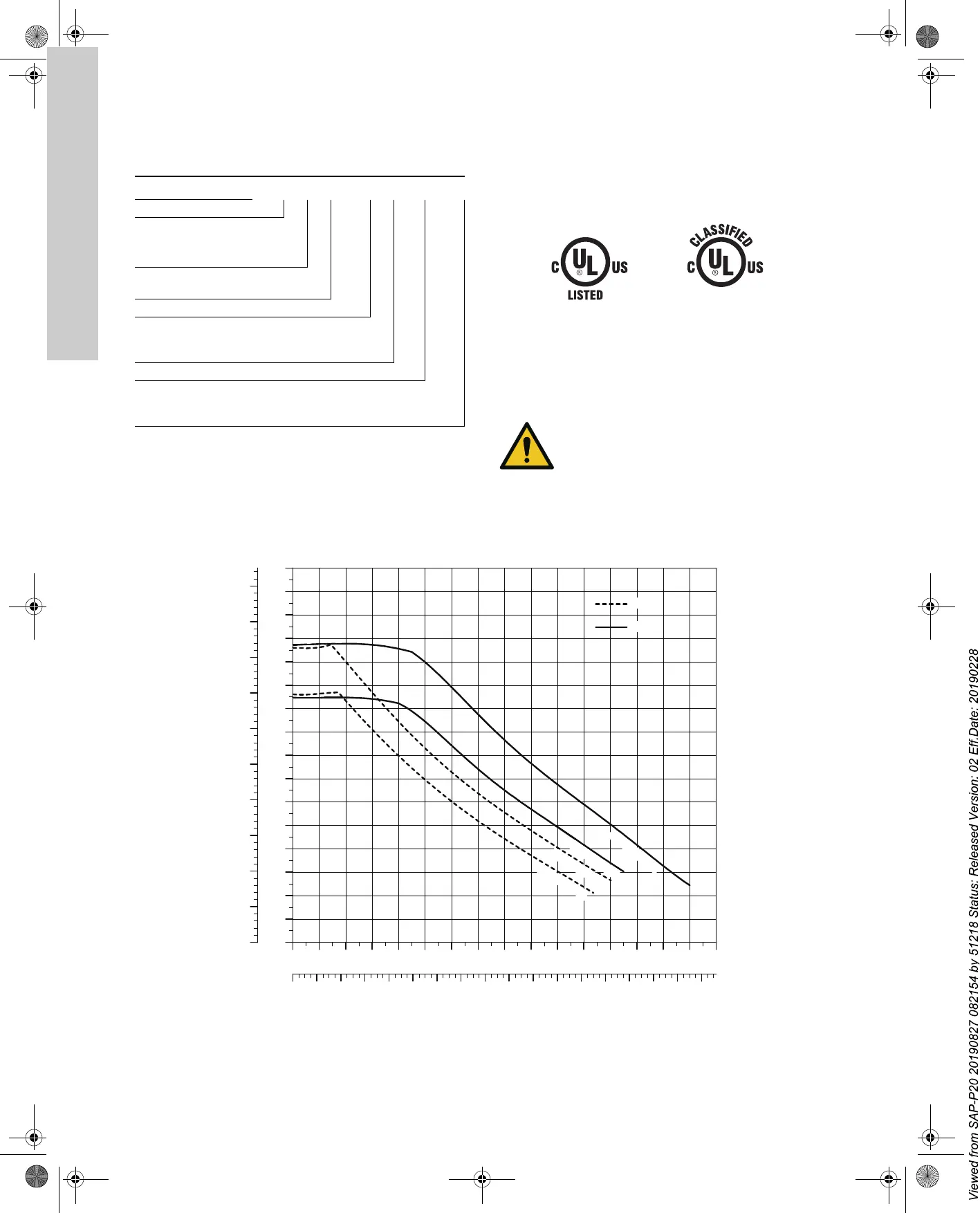

Fig. 3 Left: UL approval mark for water circulation pumps.
Right: UL approval mark for drinking water system
components made of stainless steel.
4.4 Performance curves
Fig. 4 Performance curves UPML, UPMXL
Example UPM XL 25 -124 _ 180 AUTO
Pump range:
Pump type:
UPML
UPMXL
Nominal diameter (DN) of inlet and
outlet ports [mm]:
Maximum head [dm]:
_
N
F
Cast-iron pump housing
Stainless-steel pump housing
2-bolt flanges
Port-to-port length [mm]:
AUTO
PWM
VDC
Internally controlled
Externally controlled PWM signal
Externally controlled 0-10 VDC signal
TM07 0539 0218
CAUTION
Description of hazard
Minor or moderate personal injury
- cULus listed pumps are tested and evaluated with
water only.
WATER QUALITY
Drinking water system component
NSF/ANSI 61
MH26400
NSF/ANSI 372
Water circulation pump
99K4
TM07 0441 5017
Q [US GPM]
Q [m³/h]
230 V
115 V
H
[ft]
H
[m]
UPMXL, 180 W
UPML, 140 W
UPML, 100 W
UPMXL, 120 W
50
45
35
30
25
20
15
10
40
5
0
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
02468
0.0
10 12 14 16 18 20 22 24 26 28
0.5 1.0 0.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0
