Rear Panel Connections

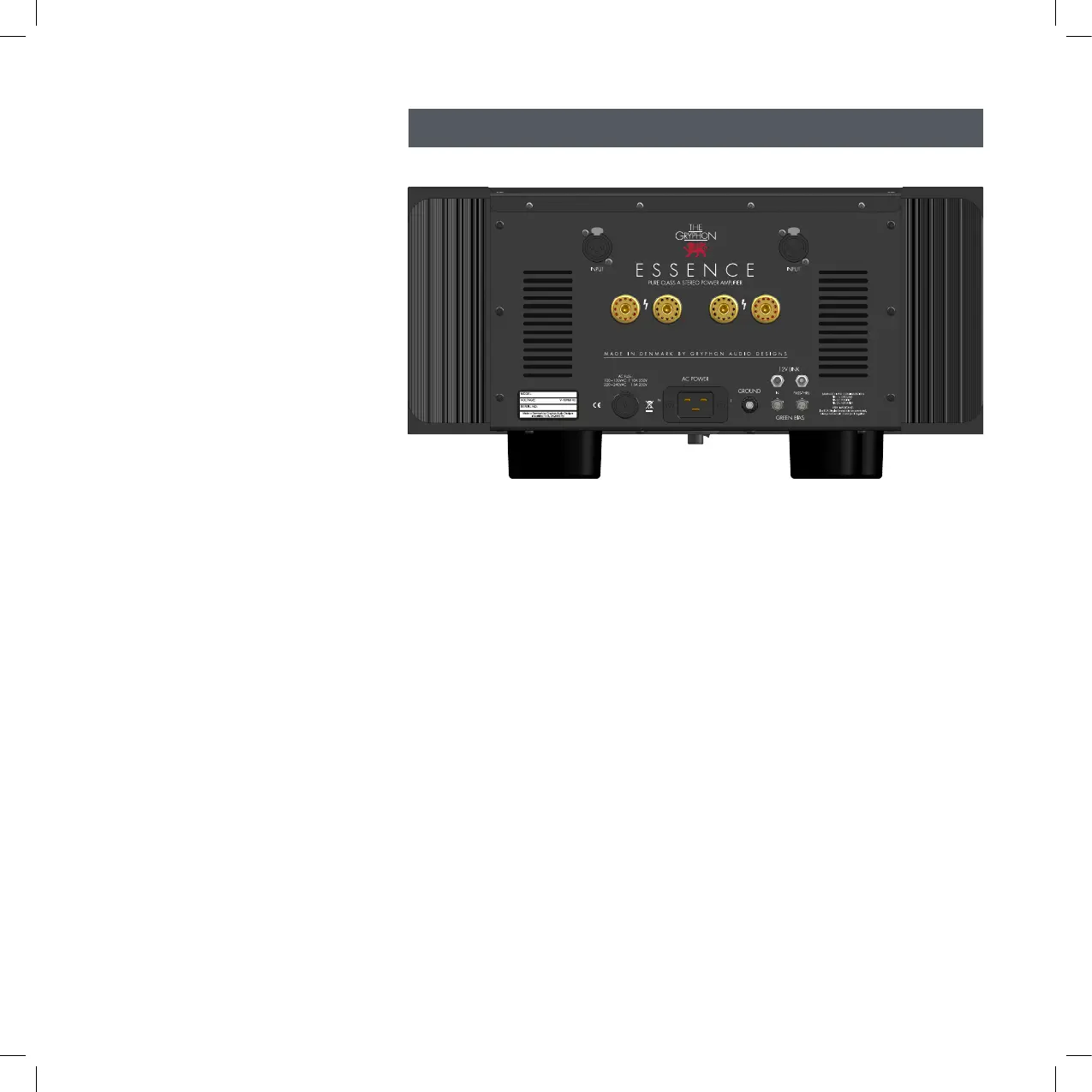

Figure 9. Essence Stereo connections, seen from rear panel
From top:
Right and left stereo channel XLR inputs. Pin 1. Ground
Pin 2. Positive
Pin 3. Negative
Right and left stereo channel +/- speaker terminals.
Main fuse holder: 100-120Vac: T 10A / 250V
220-240Vac: T 5A / 250V
Mains input socket: IEC Appliance Inlet C20
(for power cord with IEC C19 receptacle)
Chassis ground terminal.
12VDC link input and pass-thru: Mini Jack socket. Positive on tip.
Green Bias input and pass-thru
