GSD Digital Keypad - Wiring Diagrams; Wiring Diagram with Interlock Connection; Wiring Diagram with Intruder Alarm Panel

Arm Alarm Input
Arm Output (N/O)
12V

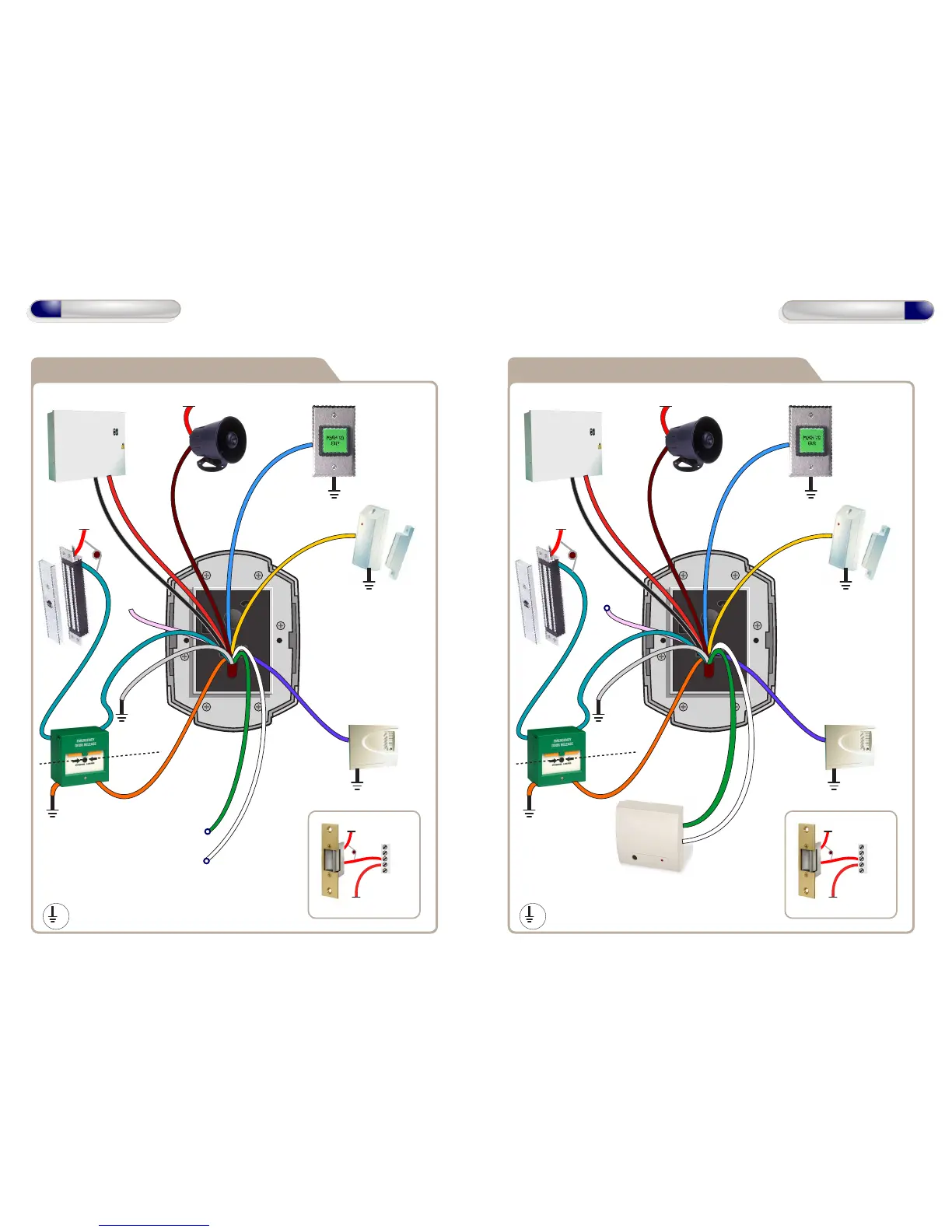

Wiring Diagram with Interlock Connection
12V Linear
Power supply
Door Exit Button
0V
Door
Contact
0V
Fire Alarm
Panel
0V
12V
Sounder
10
Wiring Diagrams
12V
0V
NO
COM
NC
12 - 24 VAC
12 - 24 VAC
Wiring for StikeLock only using 12 - 24VAC supply
Note: All OV shown in the
diagram are connected to
OV of the Door Control.
0V
Dual-Pole
Ressetable
BreakGlass Unit
0V
Pole to cut
power to Lock
Pole for
Monitoring
Unit
NC
0V
COM
NO
IP5
Break Glass
OP1
IP3
IP4
Fire Alarm
IP2
Door
Contact
IP1
Door Exit
Button
OP2
Alarm/Sounder
12V DC
Only
0V
Suggested Wiring
for BreakGlass
Unit above.
12V
Wiring Diagram with Intruder Alarm Panel
12V Linear
Power supply
Door Exit Button
0V
Door
Contact
0V
Fire Alarm
Panel
0V
12V
Sounder
12V
0V
NO
COM
NC
12 - 24 VAC
12 - 24 VAC
Wiring for StikeLock only using 12 - 24VAC supply
Note: All OV shown in the
diagram are connected to
OV of the Door Control.
0V
Dual-Pole
Ressetable
BreakGlass Unit
0V
Pole to cut
power to Lock
Pole for
Monitoring
Unit
NC
0V
COM
NO
IP5
Break Glass
IP4
Fire Alarm
IP2
Door
Contact
IP1
Door Exit
Button
OP2
Alarm/Sounder
12V DC
Only
0V
Suggested Wiring
for BreakGlass
Unit above.
IP3 OP1
Interlock OP (OP1) to
Interlock IP on
2nd Door
Interlock IP (IP3) from
Interlock OP on
2nd Door
7
Wiring Diagrams
Intruder Alarm
Panel
Common the OV from the
Fire Alarm Panel and the OV
from the Door Control to
avoid any ground loop issues.
When the fire alarm
is activated (0V removed
from IP4) the door will
be opened
Note: Fire Alarm Override is
deactivated until the Door
Control joins a network.
Common the OV from the
Fire Alarm Panel and the OV
from the Door Control to
avoid any ground loop issues.
When the fire alarm
is activated (0V removed
from IP4) the door will
be opened
Note: Fire Alarm Override is
deactivated until the Door
Control joins a network.
16V
Varistor
16V
Varistor
16V
Varistor
16V
Varistor
