GSi 1200 - Installing the Enclosure Horizontal Rail

Chapter 5: Enclosure Installation
Installing the Enclosure Horizontal Rail
The enclosure horizontal rail connects to the vertical supports to support the enclosure walls.
1. Align the enclosure horizontal rails (43) in the 10
th
hole down from the top of the enclosure vertical
supports (24).
2. Install the enclosure horizontal rails (43) to the inside of the enclosure vertical supports (24) using
bolts (6) and nuts (5).
3. Install the remaining enclosure horizontal rails (43) spaced nine vertical holes apart.

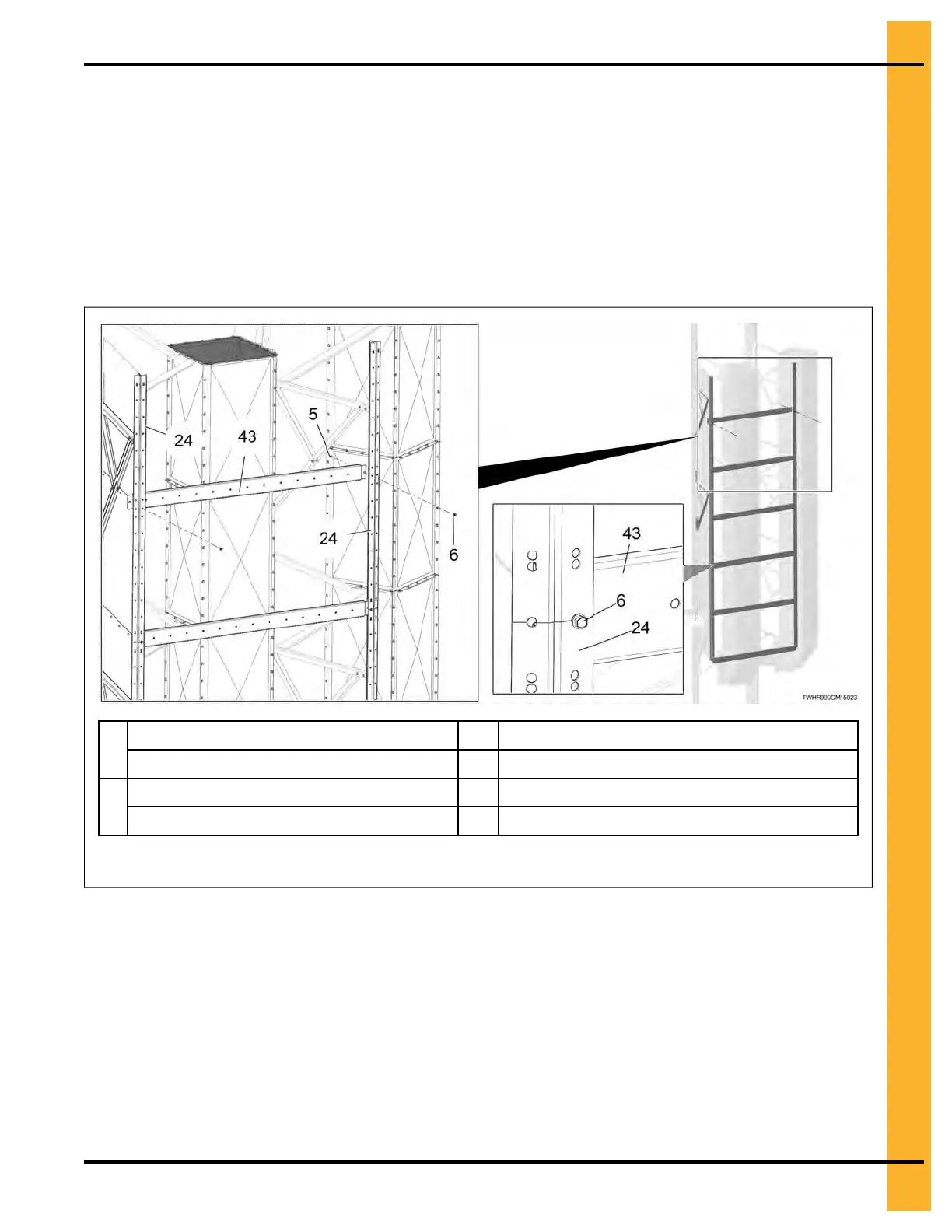

Figure 5-6 Enclosure horizontal rail
5
5/16 in. flange nut (S-10268)
24
Enclosure vertical support T (see parts)
5/16 in. flange nut waxed (S-8452)*
43
Enclosure horizontal rail (see parts)
6
5/16 x 3/4 in. flange bolt (S-6606)
5/16 x 3/4 in. flange bolt SS (S-8956)*
* Use for stainless steel heat reclaimers.
PNEG-2016 Tower Dryer Heat Reclaimer
71
