GSi 1226 - All Stack Dimensions (Continued)

4. Specifications
22 PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual
All Stack Dimensions (Continued)

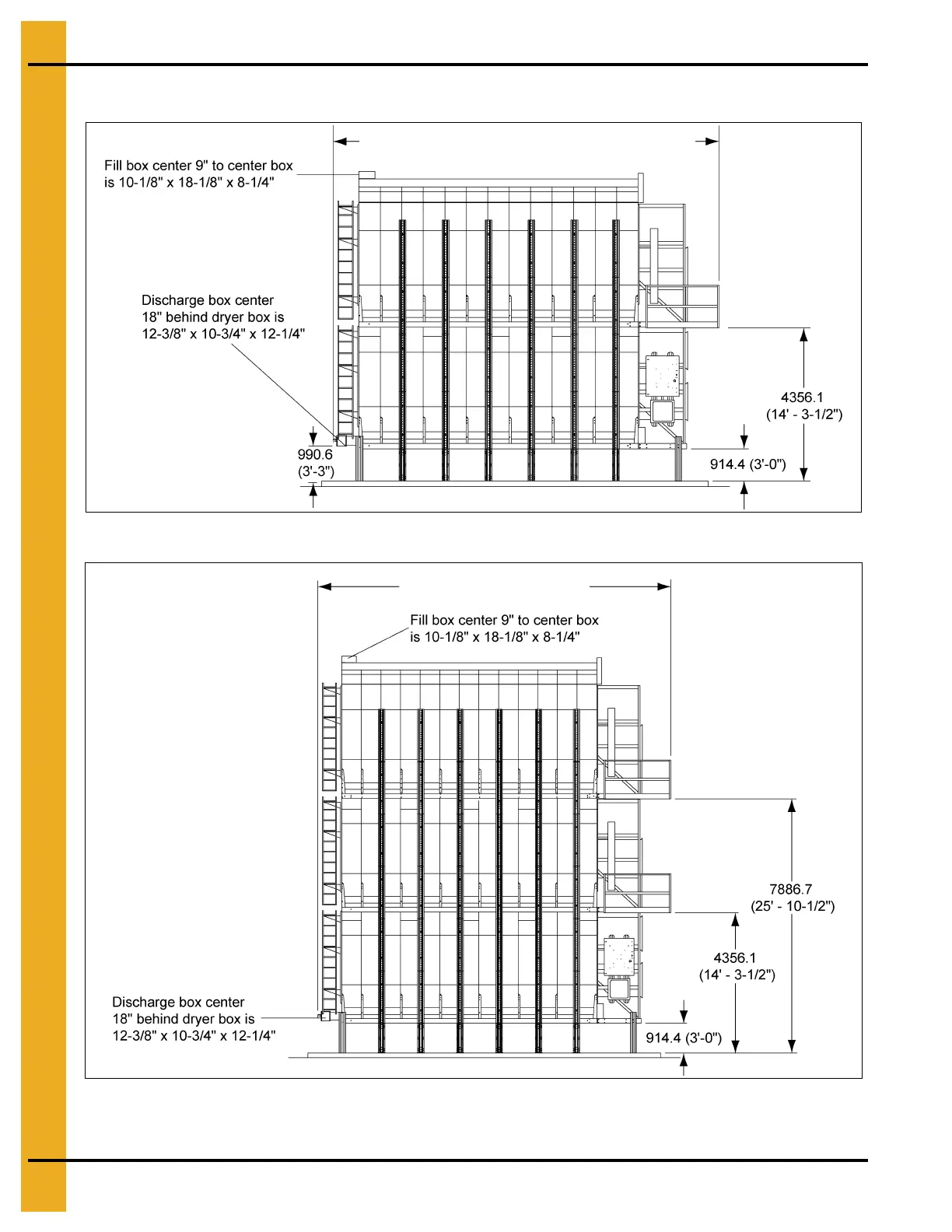

Figure 4H Side View - 2 Module Stack Dryer
Figure 4I Stack Dryer Dimension (Side View - 3 Module Stack Dryer)
NOTE: All dimensions are in mm.
“X” - Varies with dryer length (See Chart on Page 23.)
“X” - Varies with dryer length
(See Chart on Page 23.)
