PNEG-900 Series 2000 Autoflow Fan/Heater and Control Installation Instructions 51
6. The linear actuator should extend down 16".
7. Place the Dump switch in the “AUTO” position and press the Stop switch.
8. The linear actuator should retract and stop.
9. Place the Control Power switch in the “OFF” position and push the Emergency Stop switch in on the
Autoflow and actuator control boxes.
10. Route the cable as shown in Figure 4O.
11. Make sure that all dump chutes are approximately 5° below level when in the closed position.
12. Double check all dump chutes to make sure that they are all adjusted the same when in the closed
position. The Autoflow unit will not operate properly if the dump chutes are adjusted unevenly.

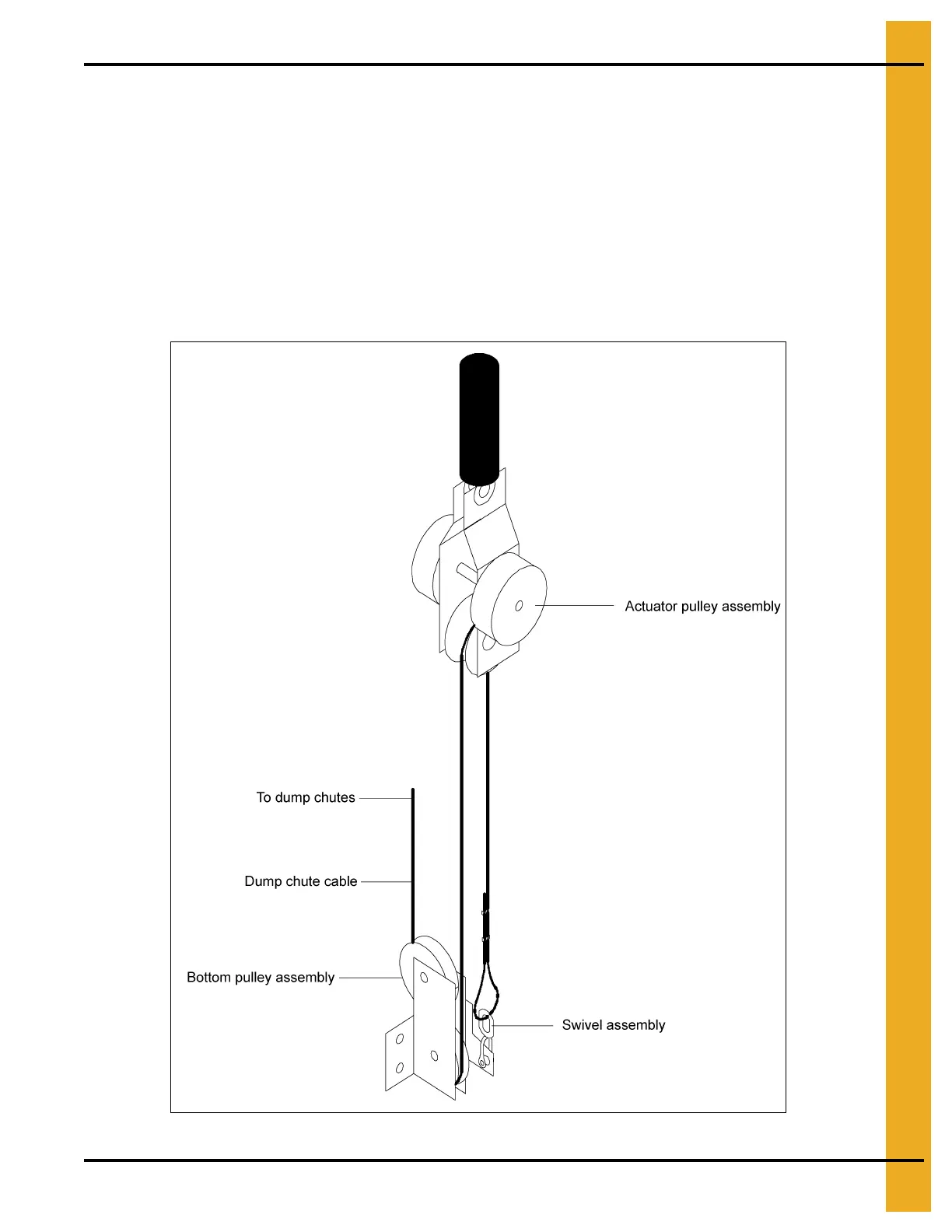

Figure 4O
To Next Page
