Gearbox Oil Level
(Check levels once per season, or every 50 hours of operation.)
1. Fill the top gearbox to the side plug level.
2. Remove the cover and fill bottom gearbox to line on dipstick.
3. Gearboxes are factory filled with full synthetic 75W90 gear oil.

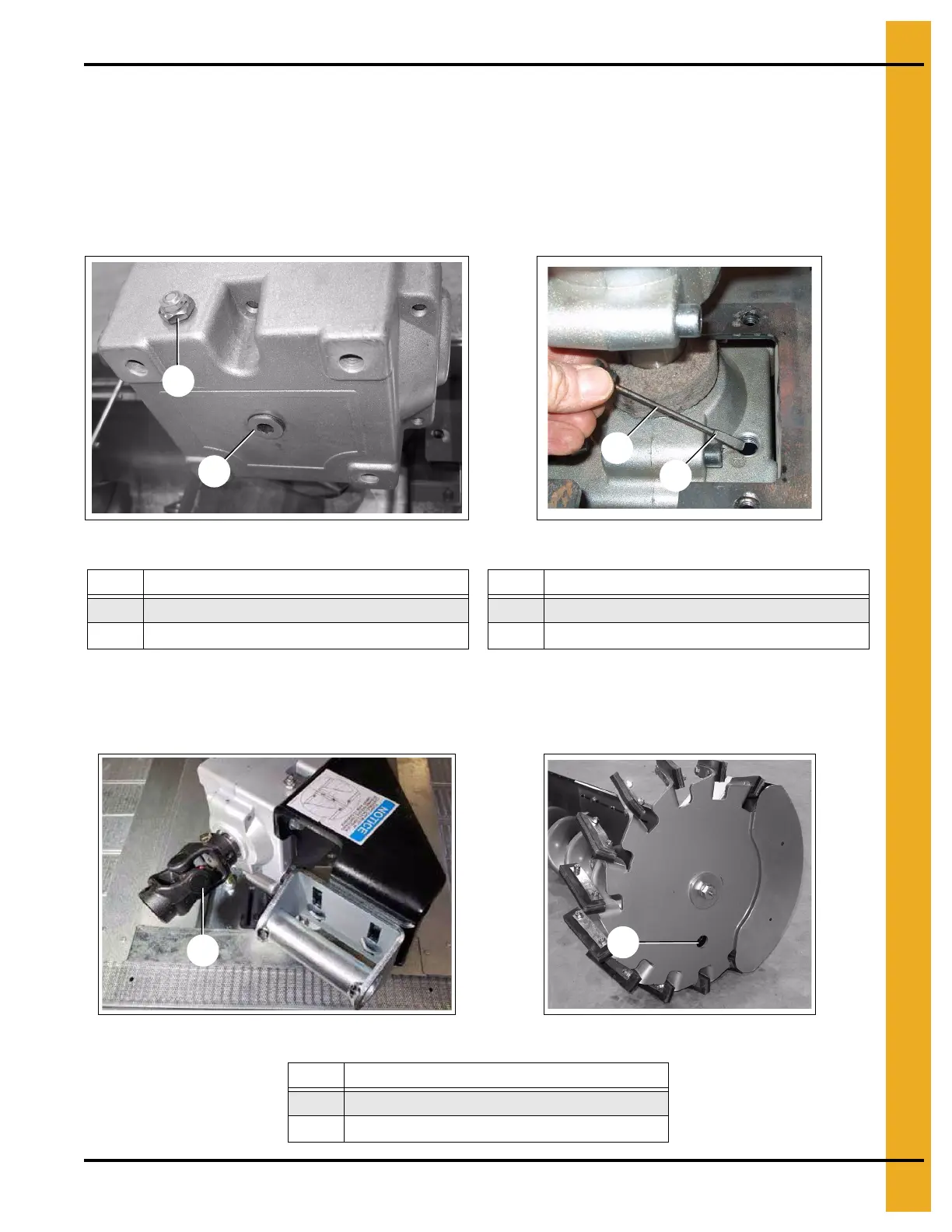

Figure 7A Top Gearbox Figure 7B Bottom Gearbox
Grease Points
Grease every 8 hours of operation.
Figure 7C Figure 7D
Ref # Description Ref # Description
1 Vent Plug 3 Dipstick
2 Side Plug
4 Full Line
Ref # Description
5 Sweep Drive Wheel
6 Gearbox U-Joint
