GSi 2000 Series - Polyshield Plate Assembly

4. Installation
30 PNEG-2381 2000 Series U-Trough Bin Sweep Auger Unload System (72' - 78')
Polyshield Plate Assembly
1. Install the bearing (64) in the polyshield plate assembly (65) using hardware kit (41HK002) as shown
in Figure 4AK.

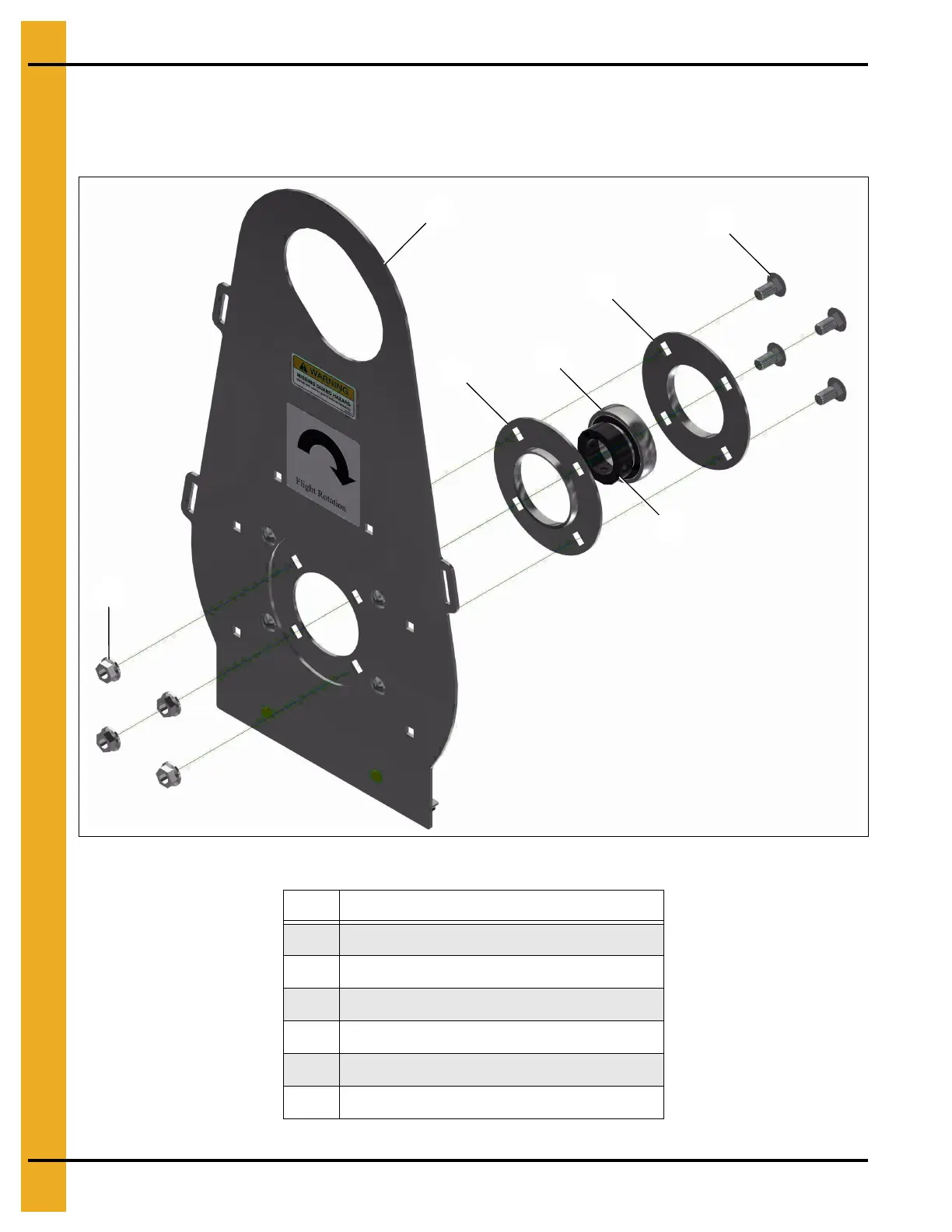

Figure 4AK
Ref # Description
8 1/2" x 1" Carriage Bolt (4)
17 1/2" Flange Nut (4)
63 Bearing Insert (1)
64 Bearing Flange (2)
65 Polyshield Plate Assembly
66 Bearing with Eccentric Locking Collar
65
8
17
66
64
64
63
