4. Installation
PNEG-2381 2000 Series U-Trough Bin Sweep Auger Unload System (72' - 78') 31
Horizontal Powerhead
Discharge Gate, Motor Plate Preparation
If you are installing an incline elbow or an extension, complete those installation steps first before installing
the horizontal powerhead.
For the inline elbow steps, skip to Page 35 and for the extension steps, skip to Page 38.

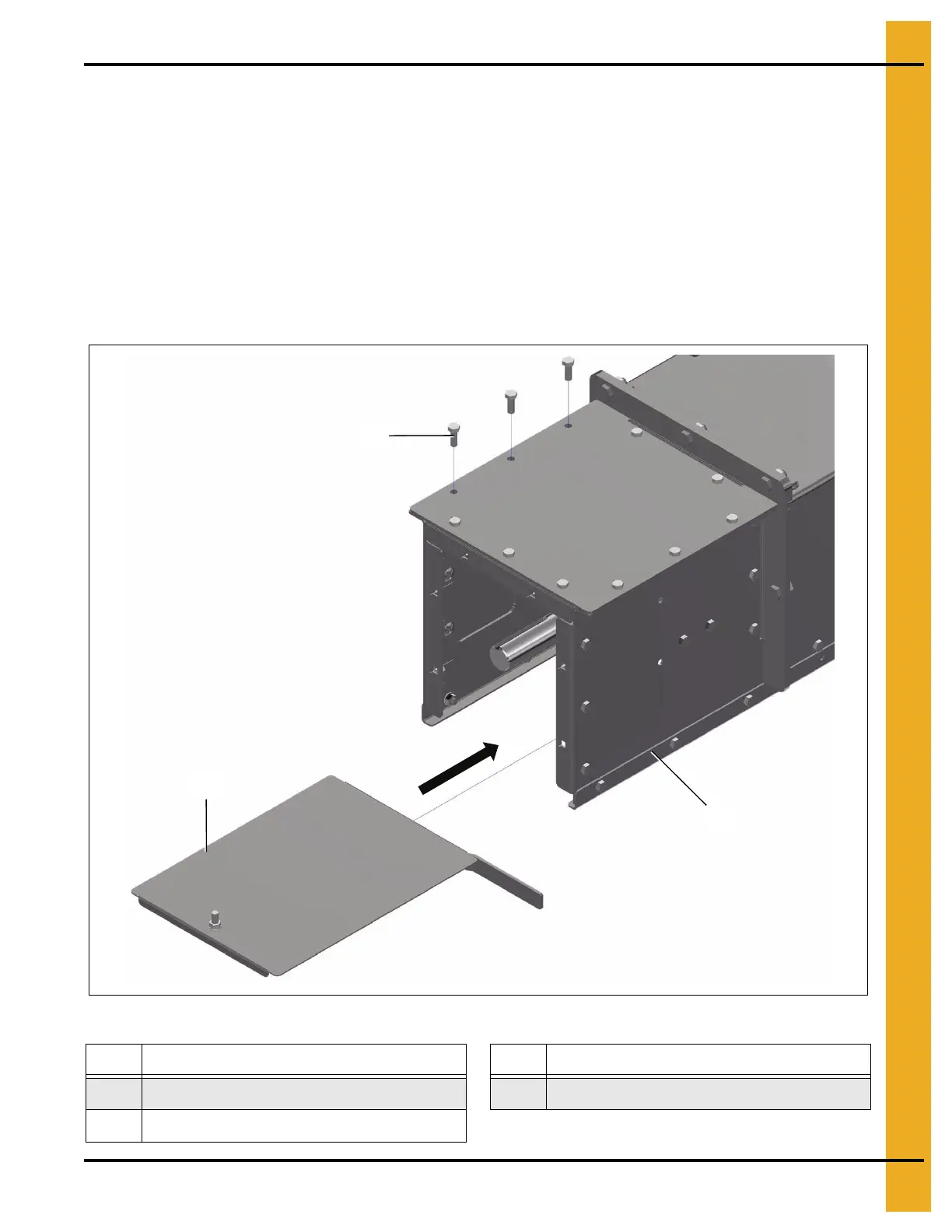

1. Slide the discharge gate assembly (69) onto the powerhead in the orientation as shown in
Figure 4AL
.
2. Remove the three bolts and nuts (68) shown along one edge of the powerhead (67) in the preparation
for installation of the motor plate assembly.
Figure 4AL
Ref # Description Ref # Description
67 Powerhead 69 Powerhead Discharge Gate Assembly
68 Remove Hardware
To Next Page
