4. Installation
Center Drive
1. Remove eight bolts (11) securing the drive lid (28). Remove the lid (28) and floor flashing (29). Save
for re-installation after aeration floor. (See Figure 4A.)

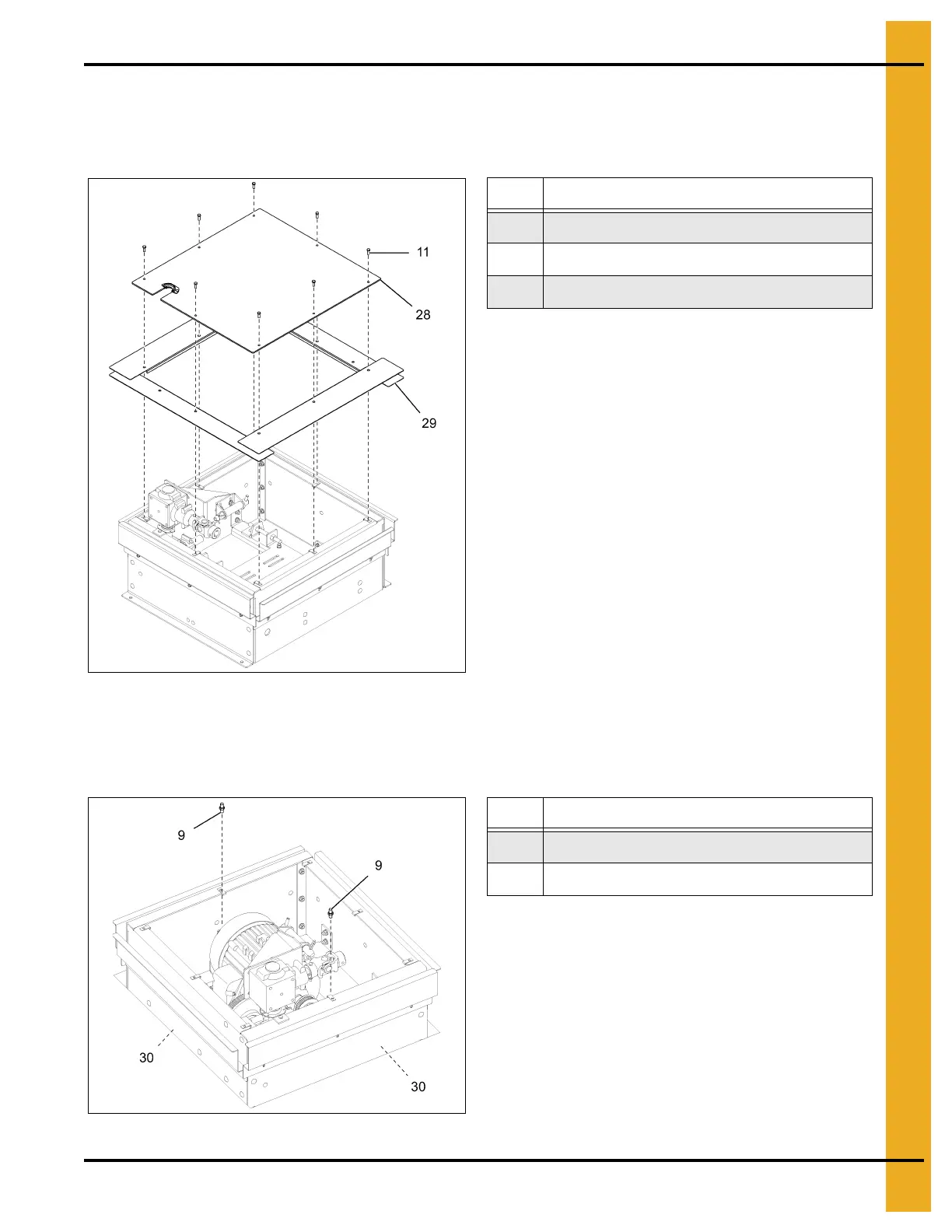

Figure 4A Removing the Lid and Floor Flashing
2. Place the center drive in concrete knock-out. Refer to Page 51 and Page 54 to properly locate the
center of gearbox at the center of the bin. Secure the center drive at two locations with concrete with
anchor bolts (9) (not provided). (See Figure 4B.)
Figure 4B
Ref # Description
11 Bolts
28 Drive Lid
29 Floor Flashing
Ref # Description
9 Concrete Anchor Bolts
30 Anchor Bracket (Shown Inside)
