PART 3
(A) Quick Release Type
138692 Rev 0 (04/22)
8. Install Front Wheel
GT Bicycle Owner’s Manual
(A) Quick Release Type

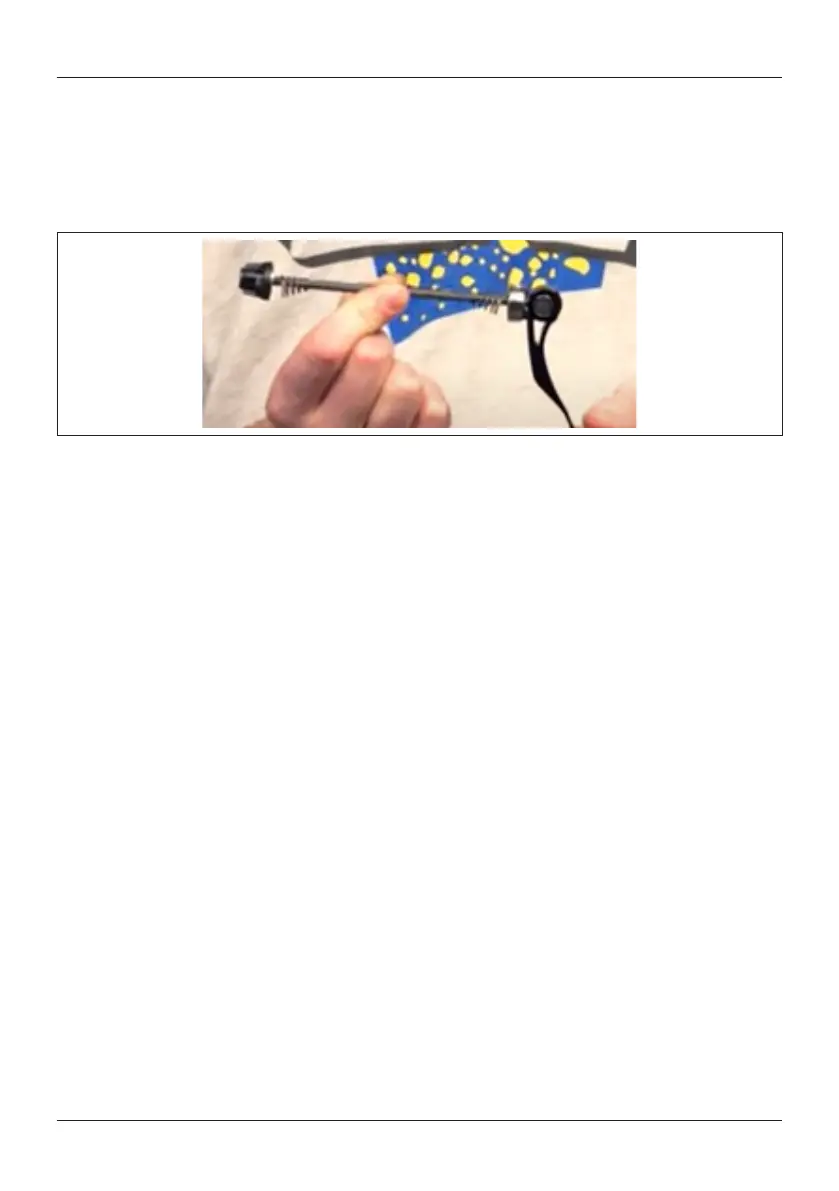

First properly install the quick release assembly into the hub. Pick up the quick release assembly and note
the sequence and orientation of parts: adjusting nut, conical spring, skewer, a second conical spring and
finally the quick release lever assembly.
• Remove the adjusting nut and the first conical spring.
• Pick up the front wheel. Examine the sidewall of the tire to see if the tread design is directional. If it is
directional, you will see a forward rotation arrow.
