16 - CT6100 Fuse Socket Connectors
The CT6100 fuse socket connectors are designed to facilitate the connection of the test
leads of the FF310T to the circuit under test through the fuse box, and can also be used
for all other situations when access to the fuse socket connections are required. These
connectors are supplied in three sizes: Mini, ATO and Maxi.
How to use the CT6100 connectors
1- Choose the connector (Mini, ATO or Maxi) that
matches the fuse socket where the connection
is required.
2- Remove the power to the circuit.

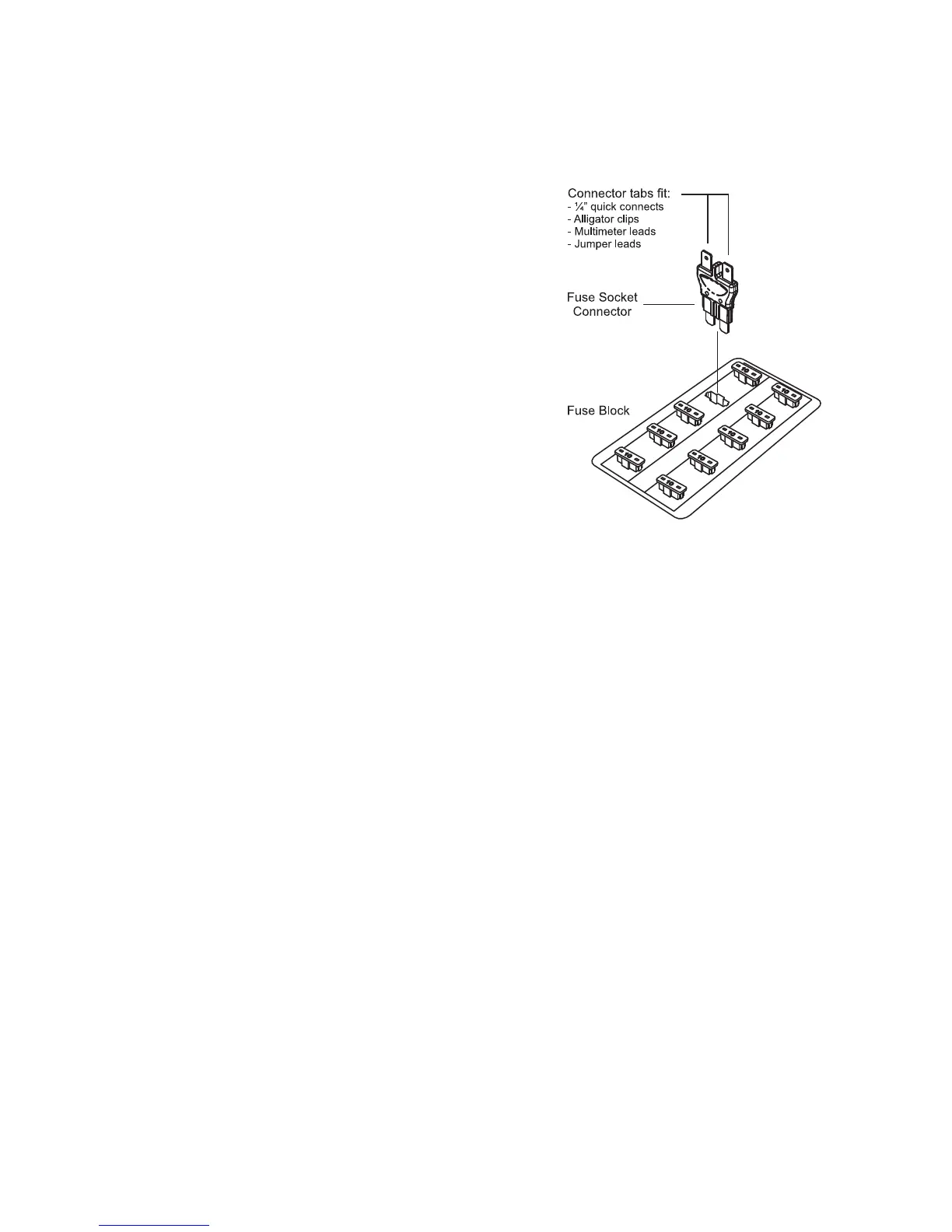

3- Insert fuse connector into the socket (see fi gure).
4- Connect test leads to the connectors tabs of the
fuse socket connector.
17 - Care of the Unit
The FF310 is a precision instrument and should be treated as such. Damage caused by
mistreatment is not covered by the warranty.
Keep the units in their carrying case when not in use and do not subject to dampness or
severe heat or cold. Do not use the units in the rain, if they should accidentally get wet.
dry them off with a clean paper towel before storing away.
Protect the units from contact with any solvents. Never clean with a solvent or petroleum
based medium such as gasoline, as these chemicals may attack the plastic parts and
cause permanent damage. Never use an abrasive cleaner. Cleaning should be limited
to wiping with a clean damp paper towel with a small amount of soap if required. Dry the
units thoroughly after any cleaning.
These are sealed instrument and contains no user serviceable parts other than the
battery which can be replaced by opening the drawer on the back of the units. Opening
other parts of the units will void the warranty.
