Blade cutting adjustment and lubrication
CAUTION : remove the isolator key and
battery before adjusting the blade.
The blade can be adjusted to ensure a clean cut
when mowing.

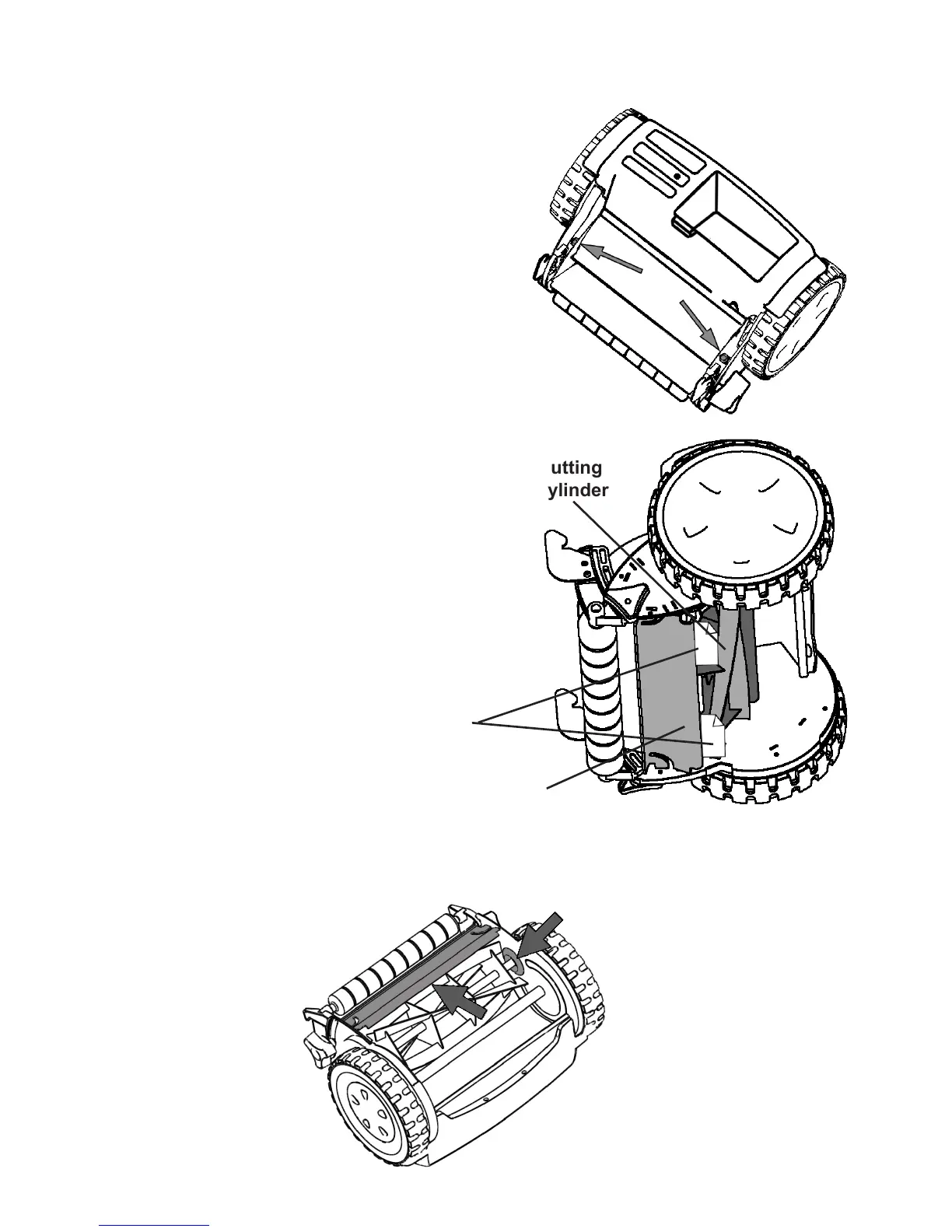

To adust the blade tighten the two nuts on the
blade shield.
The cutting cylinder should just touch the blade.
CAUTION : do not over tighten the blade.
To check for correct adjustment insert a piece
of paper between the cutting cylinder and the
straight blade.
Check with a piece of paper at each end of the
blade to ensure correct adjustment along the
length of the blade.
When the cutting cylinder is turned by hand the
paper should be cut cleanly.
If the paper is not cut then gradually tighten the
nuts until the paper can be cut cleanly.
To maintain maximum run time and smooth, efcient cutting performance, an oil or spray
lubricant can be applied to the edge of the straight blade and the shaft bearings.
Gtech helpline : 0870 7944001 email: support@greytechnology.co.uk
Paper
Straight blade
Cutting
cylinder
